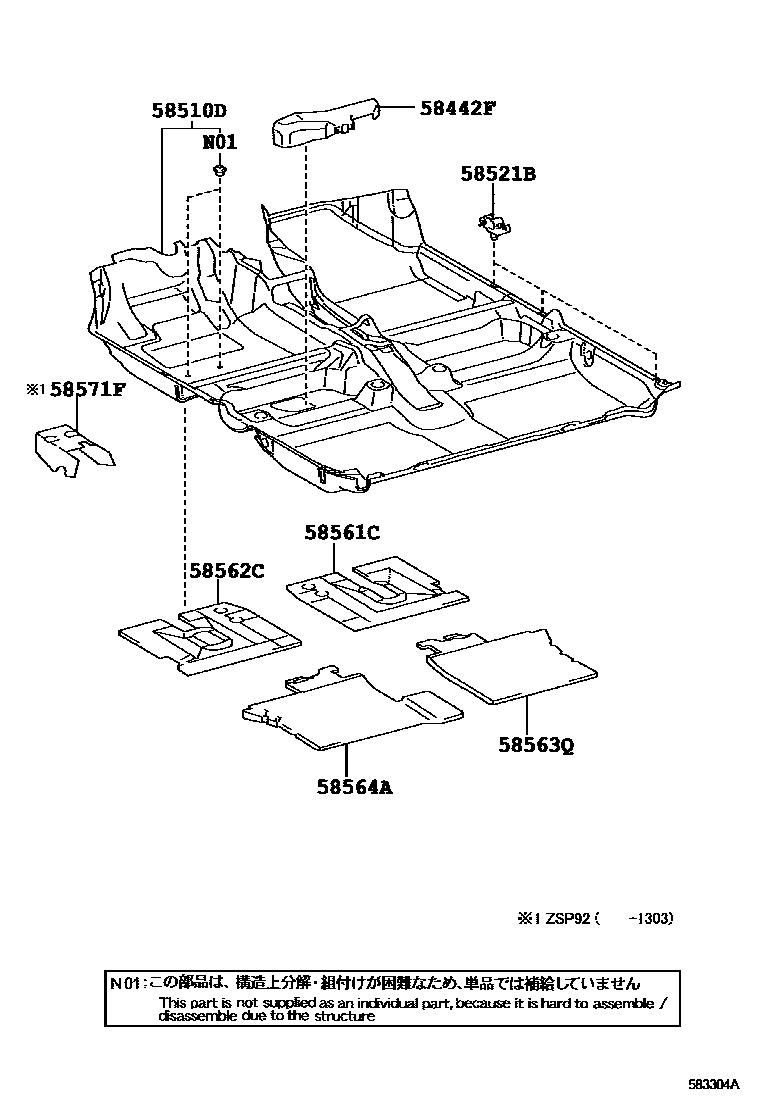

MAT & CARPET

58442FCOVER, JACK

main58442-0D070iNCP92,ZSP92200802-201303

58510DCARPET ASSY, FLOOR, FRONT

main58510-0D580-B2iZSP92..GLS200802-201008

DK.GRAY,TRIM1#

main58510-0D580-B2iZSP92..GLS200802-201008

DK.GRAY,TRIM4#

main58510-0D700-B0iZSP92..GLS201008-201303

DK.GRAY,TRIM1#

main58510-0D700-B0iNCP92,ZSP92..GLI,GLXI201008-201304

DK.GRAY,TRIM41

main58510-0D700-E0iNCP92,ZSP92..GLI,GLXI201008-201304

GREGE,TRIM41

main58510-0D700-E0iNCP92,ZSP92201304-201307

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-0D100iNCP92,ZSP92200802-201303

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D110iNCP92,ZSP92200802-201303

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D110iNCP92,ZSP92200802-201303

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D110iNCP92,ZSP92200802-201303

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D120iNCP92,ZSP92200802-201303

58571FPAD, FRONT FLOOR, FRONT

main58571-0D021iZSP92200802-201303

8 parts on this diagram · 1 diagram in section
