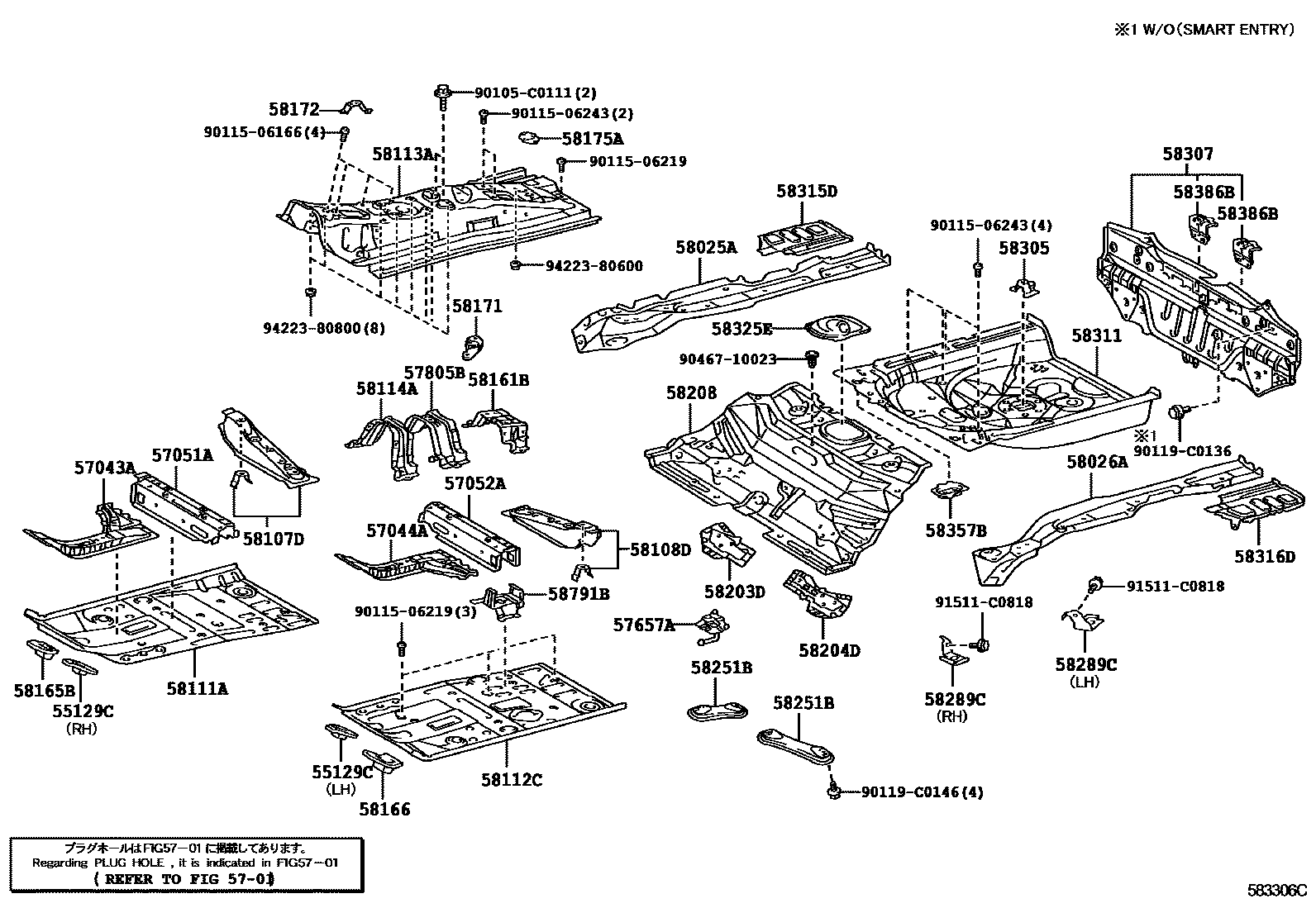

FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-0D110iNCP92,ZSP92200802-201008

RH

main55139-0D030iNCP92,ZSP92200802-201008

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D020iNCP92,ZSP92200802-201008

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D050iNCP92,ZSP92200802-201008

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D030iZSP92..GLS201008-201303

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D030iNCP92,ZSP92200802-201008

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-0D020iNCP92,ZSP92200802-201008

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-0D070iNCP92,ZSP92200802-201008

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D020iNCP92,ZSP92200802-201008

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D020iNCP92,ZSP92200802-201008

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D010iNCP92,ZSP92200802-201008

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D010iNCP92,ZSP92200802-201008

58111APAN, FRONT FLOOR, RH

main58111-52170iNCP92,ZSP92200802-201008

58112CPAN, FRONT FLOOR, LH

main58112-52904iNCP92,ZSP92200802-201008

sub58112-52921

58113APANEL, FRONT FLOOR, CENTER

main58113-52904iNCP92,ZSP92200802-201008

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D060iNCP92,ZSP92200802-201008

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D060iNCP92,ZSP92200802-201008

58165BCOVER, FRONT FLOOR, RH

main58165-0D010iNCP92,ZSP92200802-201008

58166COVER, FRONT FLOOR, LH

main58166-0D010iNCP92,ZSP92200802-201008

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D040iNCP92,ZSP92..GLI,GLXI201008

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D020iNCP92,ZSP92200802-201008

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D010iNCP92,ZSP92200802-201008

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-0D010iNCP92,ZSP92200802-201008

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-0D010iNCP92,ZSP92200802-201008

58208PAN, CENTER FLOOR

main58211-52220iNCP92,ZSP92200802-201008

58251BBRACE, FLOOR PANEL, FRONT

main58251-0D040×2iNCP92,ZSP92200802-201008

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D050iNCP92,ZSP92200802-201008

RH

main58299-0D050iNCP92,ZSP92..GLI,GLXI201008

LH

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-0D041iNCP92,ZSP92200802-201008

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D101iNCP92,ZSP92200802-201008

58311PAN, REAR FLOOR

main58311-52210iNCP92,ZSP92200802-201008

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52170iNCP92,ZSP92200802-201008

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52190iNCP92,ZSP92200802-201008

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D040iNCP92,ZSP92200802-201008

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-0D030iNCP92,ZSP92200802-201008

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D020×2iNCP92,ZSP92200802-201008

58791BCARRIER, JACK

main58791-0D070iNCP92,ZSP92200802-201008

90105C0111

main90105-C0111

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

90119C0136

main90119-C0136

90119C0146

main90119-C0146

9046710023

main90467-10023

91511C0818

main91511-C0818

9422380600

main94223-80600

9422380800

main94223-80800

46 parts on this diagram · 1 diagram in section
