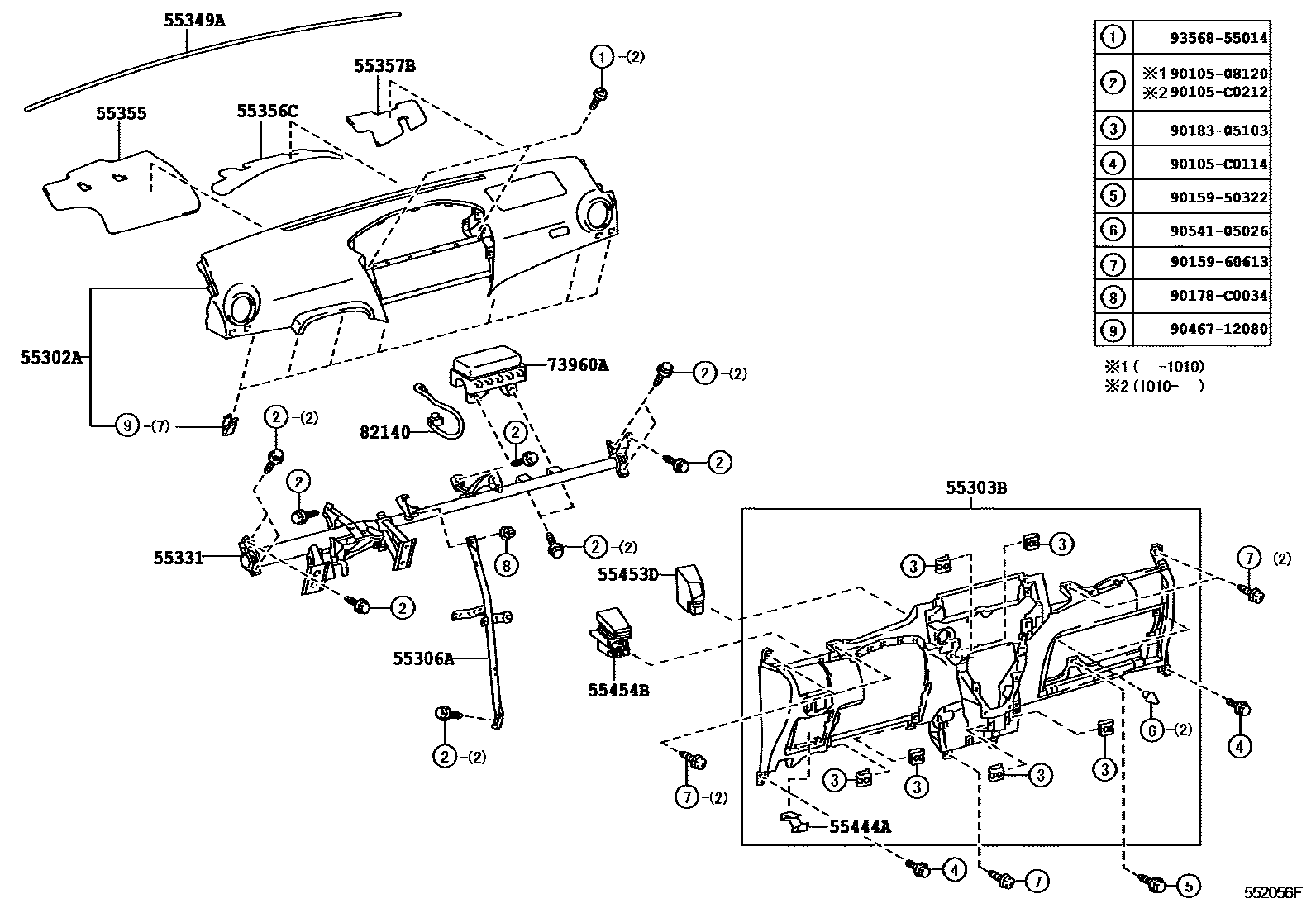

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D110-B0iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

sub55302-0D111

main55302-0D110-B0iNCP92,ZSP92..GLI,GLXI200802-201008

DK.GRAY,TRIM4#

sub55302-0D111

main55302-0D110-E0iNCP92,ZSP92..GLI,GLXI201008-201307

ASH BROWN,TRIM4#

sub55302-0D111

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D111-B0iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

main55303-0D111-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D140iNCP92,ZSP92..GLI,GLXI200802-201303

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D280iNCP92,ZSP92200802-201303

55349ACUSHION, INSTRUMENT PANEL

main55349-0D100iNCP92,ZSP92200802-201303

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D070iZSP92200802-201303

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D080iZSP92200802-201303

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0D100iZSP92200802-201303

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52260iNCP92,ZSP92200802-201307

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-0D030iNCP92,ZSP92..GLI,GLXI200802-201303

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-0D030iNCP92,ZSP92200802-201303

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D060iNCP92,ZSP92200802-201303

sub73960-0D320

sub82140-52150

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0D020iNCP92,ZSP92200802-201008

9010508120

main90105-08120

90105C0114

main90105-C0114

90105C0212

main90105-C0212

9015950322

main90159-50322

9015960613

main90159-60613

90178C0034

main90178-C0034

9018305103

main90183-05103

9046712080

main90467-12080

9054105026

main90541-05026

9356855014

main93568-55014

23 parts on this diagram · 4 diagrams in section
