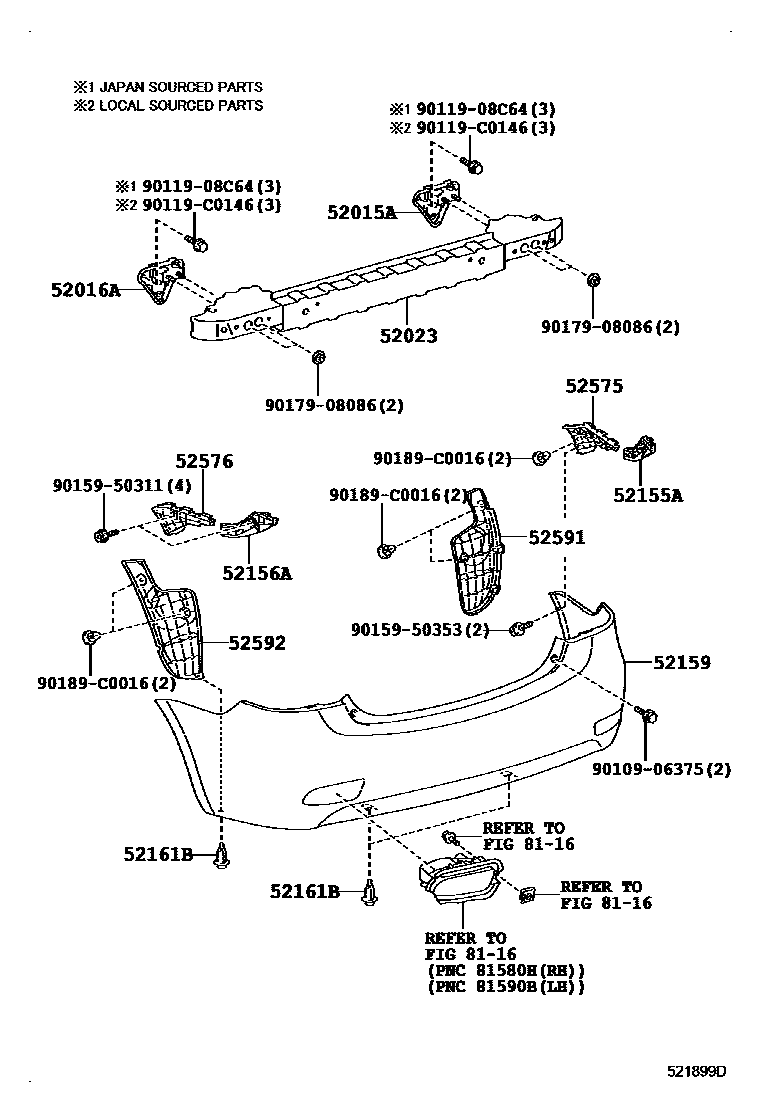

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-0D070iZSP92..GLS200802-201303

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-0D070iNCP92,ZSP92200802-201303

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D040iNCP92,ZSP92200802-201303

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0D030iNCP92,ZSP92200802-201307

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0D030iNCP92,ZSP92200802-201303

52159COVER, REAR BUMPER

main52159-0D982iNCP92,ZSP92..GLI,GLXI200802-201303

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040iNCP92,ZSP92..GLI,GLXI201209-201303

main52161-16010iNCP92,ZSP92¥120200802-201208

sub52161-0K040¥120

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D070iNCP92,ZSP92..GLI,GLXI200802-201303

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D070iZSP92..GLS200802-201303

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D080iNCP92,ZSP92200802-201303

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D080iNCP92,ZSP92200802-201303

8116

9010906375

main90109-06375¥80

9011908C64

main90119-08C64¥90

90119C0146

main90119-C0146

9015950311

main90159-50311¥70

9015950353

main90159-50353¥60

9017908086

main90179-08086¥160

90189C0016

main90189-C0016

19 parts on this diagram · 1 diagram in section
