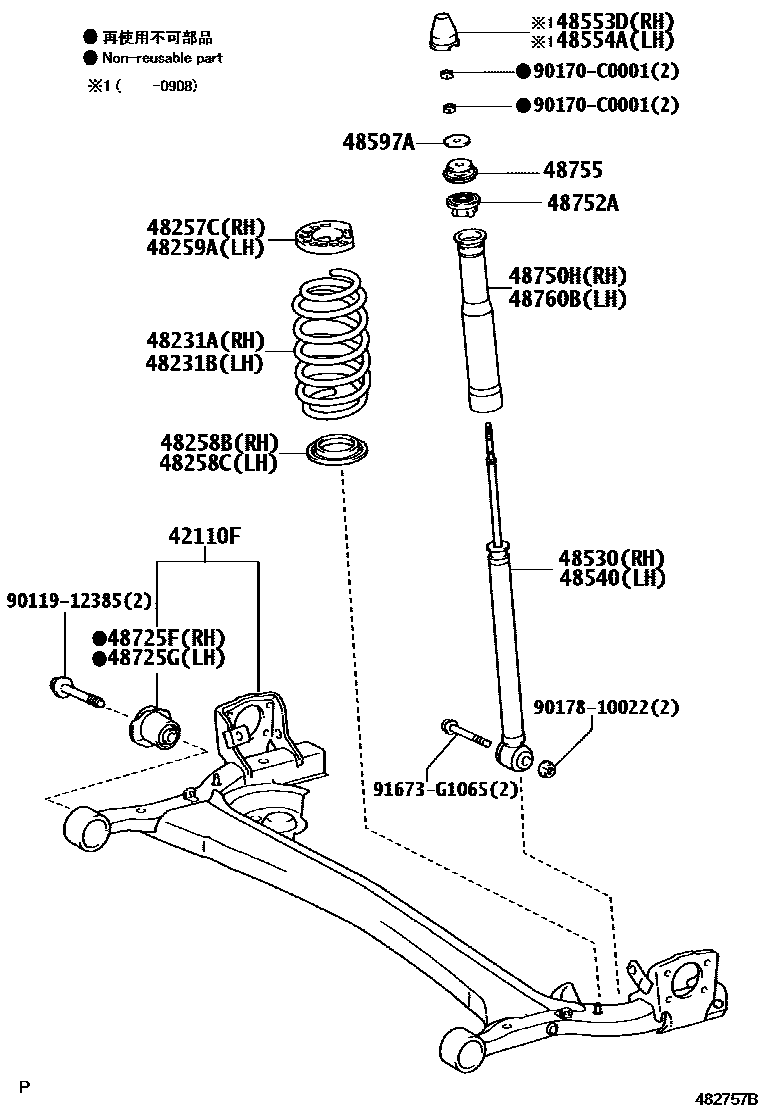

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
sub42110-52332
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0D280
MARK 48530-0D281
MARK 48530-0D282
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0D280
MARK 48530-0D281
MARK 48530-0D282
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
sub48750-0D081
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
sub48750-0D081
9011912385
main90119-12385
90170C0001
main90170-C0001
9017810022
main90178-10022
91673G1065
main91673-G1065
22 parts on this diagram · 1 diagram in section
