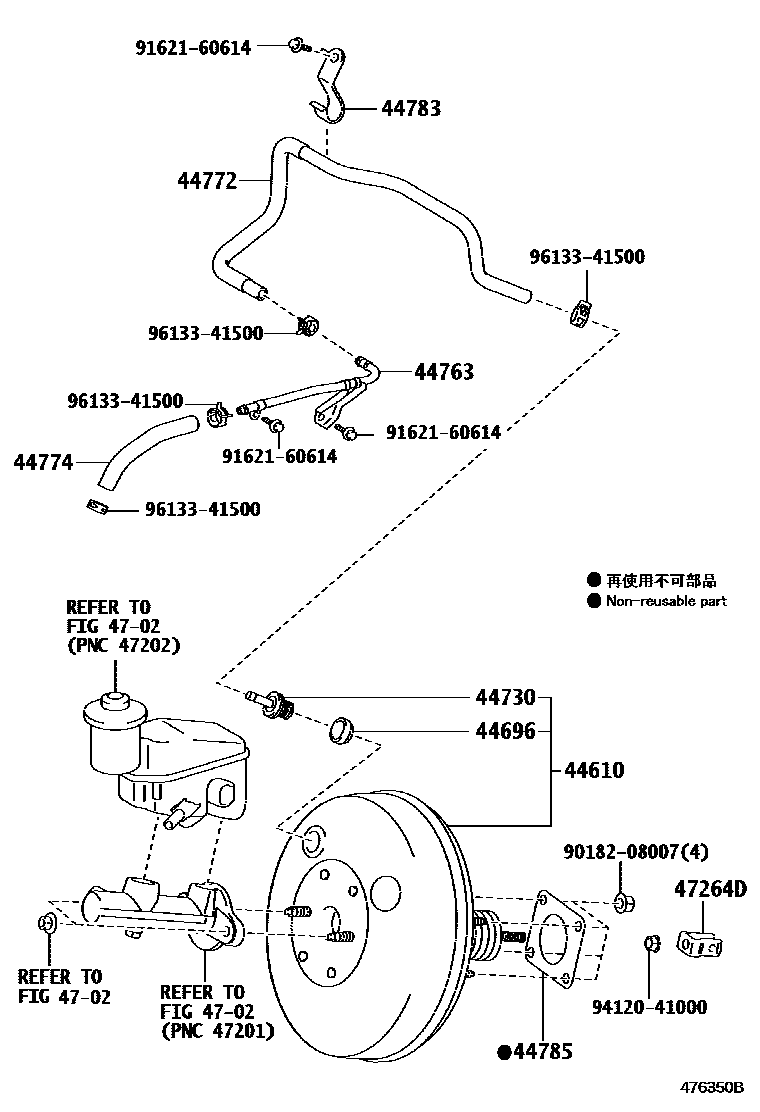

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-0D190iNCP92,ZSP92200802-201307

44696GROMMET, CHECK VALVE

main90080-48071iNCP92,ZSP92200802-201303

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP92,ZSP92200802-201303

44763TUBE, BOOSTER VACUUM

main44763-52080iNCP92200802-201008

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D060iZSP92..GLS200802-201303

main44772-0D070iNCP92200802-201008

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP92200802-201008

44783CLAMP, VACUUM HOSE

main44783-52040iNCP92,ZSP92200802-201307

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP92,ZSP92200802-201303

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D050iNCP92,ZSP92200802-201303

9018208007

main90182-08007

9162160614

main91621-60614

9412041000

main94120-41000

9613341500

main96133-41500

14 parts on this diagram · 2 diagrams in section
