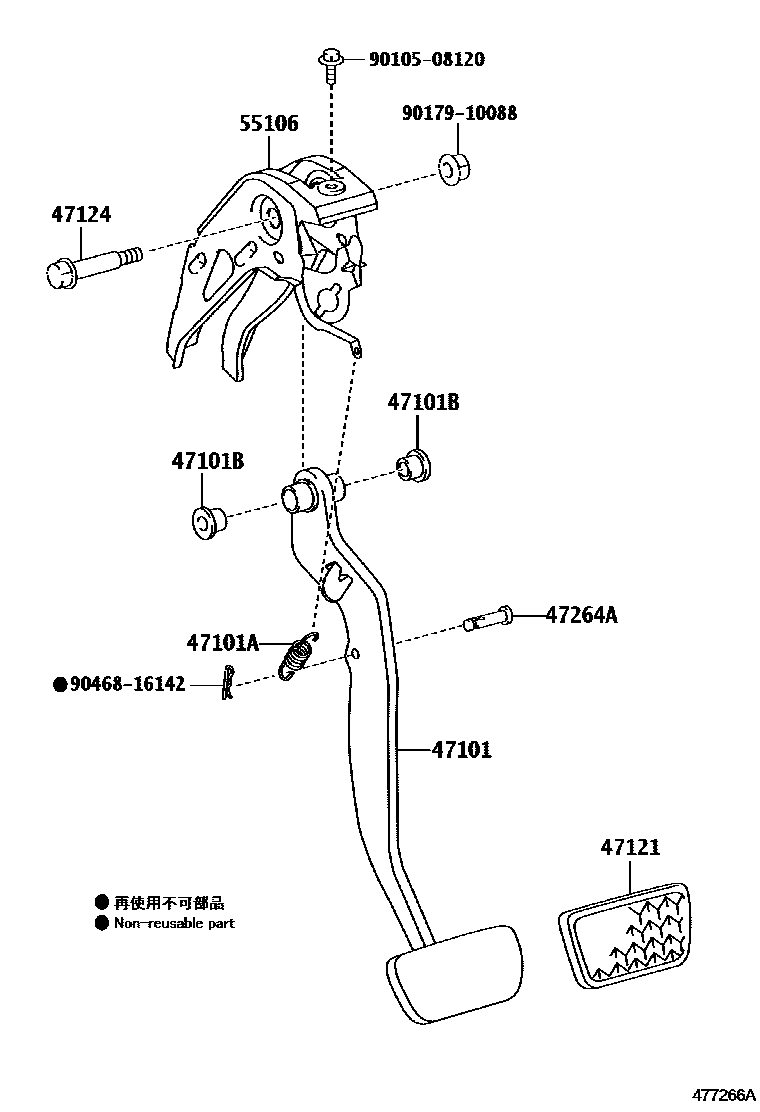

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-0D160iNCP92,ZSP92..5F200802-201008

main47101-0D170iNCP92,ZSP92..4FC200802-201008

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP92,ZSP92..GLI,GLXI201008

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNCP92,ZSP92200802-201008

47121PAD, BRAKE PEDAL

main31321-0D080iNCP92,ZSP92..5F201305-201307

main31321-52010iNCP92,ZSP92..5F200802-201008

main47121-0D080iNCP92,ZSP92..4FC201305-201307

main47121-52010iNCP92,ZSP92..4FC201008-201304

47124SHAFT, BRAKE PEDAL

main90105-10444iNCP92,ZSP92201305-201307

main90109-10167iNCP92,ZSP92201008-201305

47264APIN(FOR PUSH ROD)

main90249-08051iZSP92..GLS201008-201303

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D120iNCP92,ZSP92200802-201008

main55106-0D280iNCP92,ZSP92201305-201307

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

10 parts on this diagram · 2 diagrams in section
