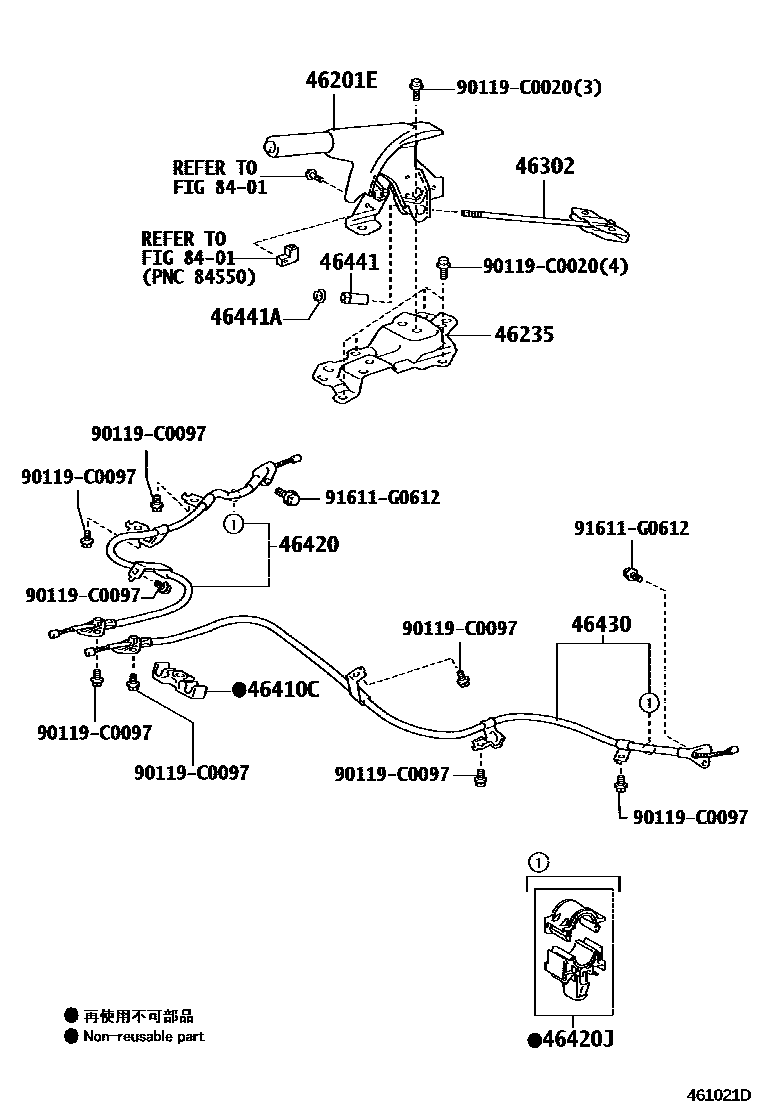

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D130-B0iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

main46201-0D130-B0iNCP92,ZSP92..GLI200802-201008

DK.GRAY,TRIM4#

main46201-0D130-E1iNCP92,ZSP92..GLI201008-201307

ASH BROWN,TRIM4#

main46201-0D140-B0iZSP92..GLI200802-201008

DK.GRAY,TRIM4#

main46201-0D140-B0iZSP92..GLI200802-201008

PARKING BRAKE-B+CHROME BOTTON,DK.GRAY,TRIM4#

main46201-0D140-E1iZSP92..GLXI201008-201307

PARKING BRAKE-B+CHROME BOTTON,ASH BROWN,TRIM4#

main46201-0D140-E1iZSP92..GLXI201008-201307

ASH BROWN,TRIM4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D040iNCP92,ZSP92200802-201307

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-0D040iNCP92,ZSP92200802-201303

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D040iNCP92,ZSP92200802-201303

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D140iNCP92,ZSP92200802-201205

sub46420-0D141

main46420-0D141iNCP92,ZSP92201206-201307

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iNCP92,ZSP92200802-201307

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D140iNCP92,ZSP92200802-201307

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iZSP92..GLS200802-201303

46441ANUT, WIRE ADJUSTING, NO.2

main90178-C0032iNCP92,ZSP92201006-201303

main90179-06299iNCP92,ZSP92200802-201005

8401

90119C0020

main90119-C0020

90119C0097

main90119-C0097

91611G0612

main91611-G0612

13 parts on this diagram · 1 diagram in section
