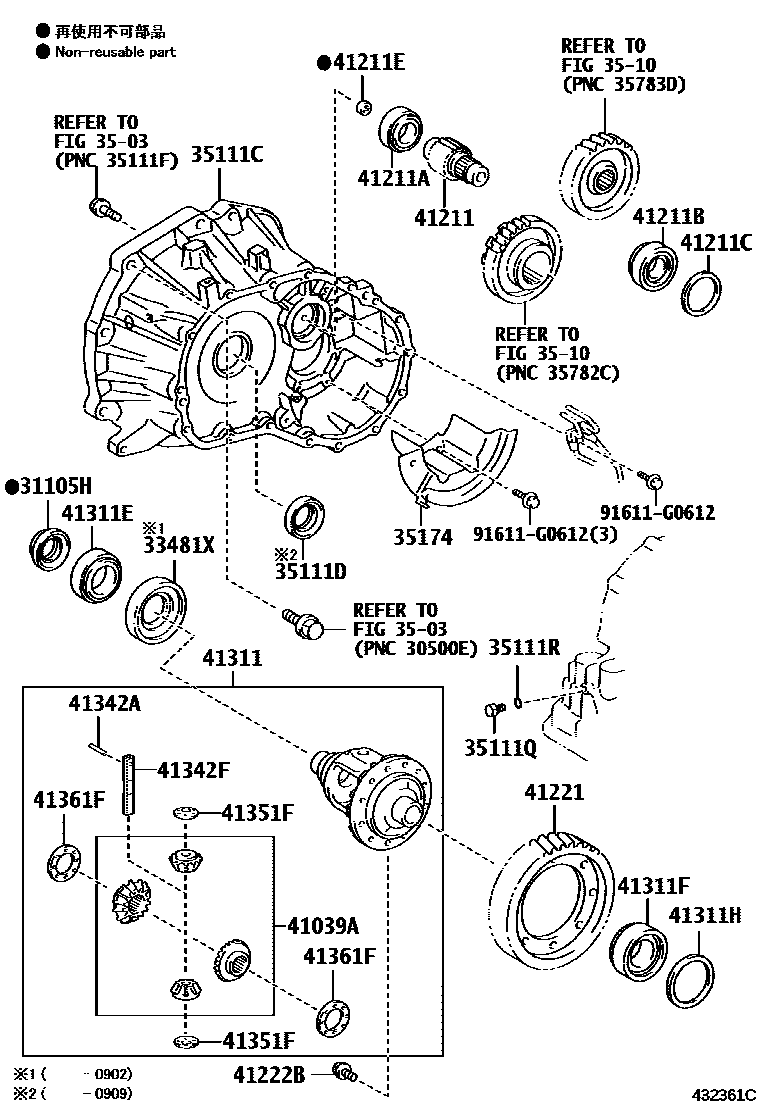

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
33481XGEAR, SPEEDOMETER DRIVE
3503
3510
35111CHOUSING, TRANSAXLE
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
35111QPLUG, NO.2 (FOR TRANSAXLE HOUSING)
35111RRING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
35174SEPARATOR, TRANSAXLE HOUSING OIL
41039AGEAR KIT, DIFFERENTIAL
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
T=1.70,MARK 1
T=1.75,MARK 2
T=1.80,MARK 3
T=1.85,MARK 4
T=1.90,MARK 5
T=1.93,MARK 6
T=1.96,MARK 7
T=1.99,MARK A
T=2.02,MARK B
T=2.05,MARK C
T=2.08,MARK D
T=2.11,MARK E
T=2.14,MARK F
T=2.17,MARK G
T=2.20,MARK H
T=2.25,MARK K
T=2.30,MARK L
T=2.35,MARK M
T=2.40,MARK N
T=2.45,MARK P
T=2.50,MARK Q
T=2.55,MARK R
T=2.60,MARK S
T=2.65,MARK U
T=2.70,MARK W
41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10,MARK AA
T=2.15,MARK BB
T=2.20,MARK CC
T=2.25,MARK DD
T=2.30,MARK EE
T=2.35,MARK FF
T=2.40,MARK GG
T=2.45,MARK HH
T=2.50,MARK JJ
T=2.55,MARK KK
T=2.60,MARK LL
T=2.65,MARK MM
T=2.70,MARK NN
T=2.75,MARK PP
T=2.80,MARK QQ
T=2.85,MARK RR
T=2.90,MARK SS
T=2.95,MARK TT
T=3.00,MARK UU
T=1.80, MARK A
T=1.85, MARK B
T=1.90, MARK C
T=1.95, MARK D
T=2.00, MARK E
T=2.05, MARK F
T=2.08, MARK G
T=2.11, MARK H
T=2.14, MARK J
T=2.17, MARK K
T=2.20, MARK L
T=2.23, MARK M
T=2.26, MARK N
T=2.29, MARK P
T=2.32, MARK Q
T=2.35, MARK R
T=2.40, MARK S
T=2.45, MARK T
T=2.50, MARK U
T=2.55, MARK V
T=2.60, MARK W
T=2.65, MARK X
T=2.70, MARK Y
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.08,MARK G
T=2.11,MARK H
T=2.14,MARK J
T=2.17,MARK K
T=2.20,MARK L
T=2.23,MARK M
T=2.26,MARK N
T=2.29,MARK P
T=2.32,MARK Q
T=2.35,MARK R
T=2.40,MARK S
T=2.45,MARK T
T=2.50,MARK U
T=2.55,MARK V
T=2.60,MARK W
T=2.65,MARK X
T=2.70,MARK Y
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
91611G0612
main91611-G0612
27 parts on this diagram · 3 diagrams in section
