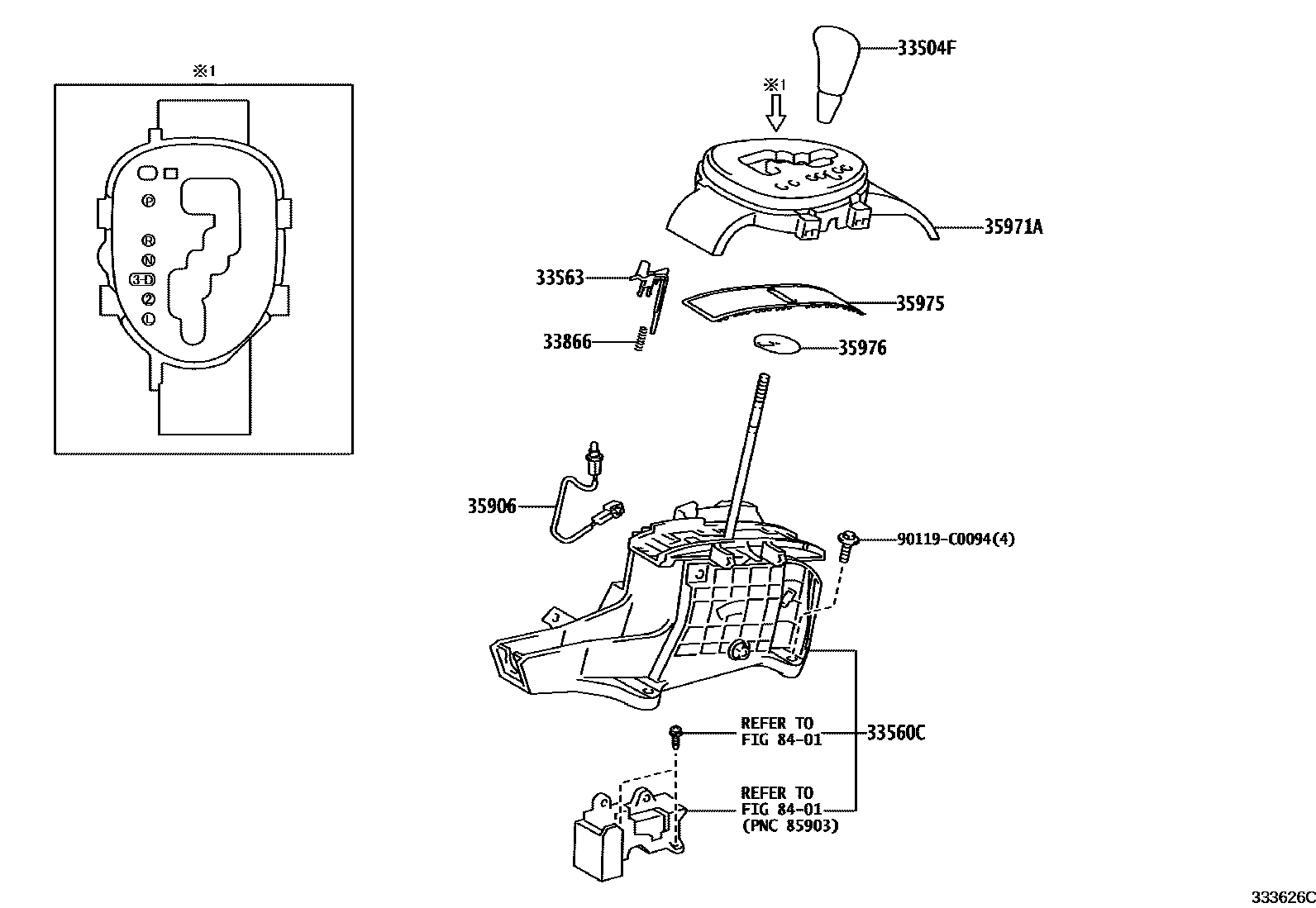

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-13010-B0iNCP92,ZSP92..5F200802-201008

DK.GRAY,TRIM4#

main33504-13010-E1iNCP92,ZSP92..5F201008-201307

ASH BROWN,TRIM4#

main33504-52080-B0iNCP92,ZSP92..4FC..(GLI,GLXI)200802-201008

DK.GRAY,TRIM4#

main33504-52080-E0iNCP92,ZSP92..4FC..(GLI,GLXI)201008-201307

ASH BROWN,TRIM4#

33560CLEVER ASSY, SHIFT, LOWER

main33560-0D070iNCP92,ZSP92..4FC200802-201008

33563BUTTON, SHIFT LOCK RELEASE

main33563-0D040iZSP92..GLS201008-201303

33866SPRING, SHIFT LOCK RELEASE

main33866-0D020iNCP92,ZSP92..4FC200802-201008

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-0D050iNCP92,ZSP92..4FC..(GLI,GLXI)200802-201008

main35906-0D060iZSP92..GLS200802-201008

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-0D140iNCP92,ZSP92..4FC200802-201008

main35971-0D210iZSP92..GLS201008-201303

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-0D040iNCP92,ZSP92..4FC200802-201008

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-0D060iNCP92,ZSP92..4FC200802-201008

8401

90119C0094

main90119-C0094

10 parts on this diagram · 3 diagrams in section
