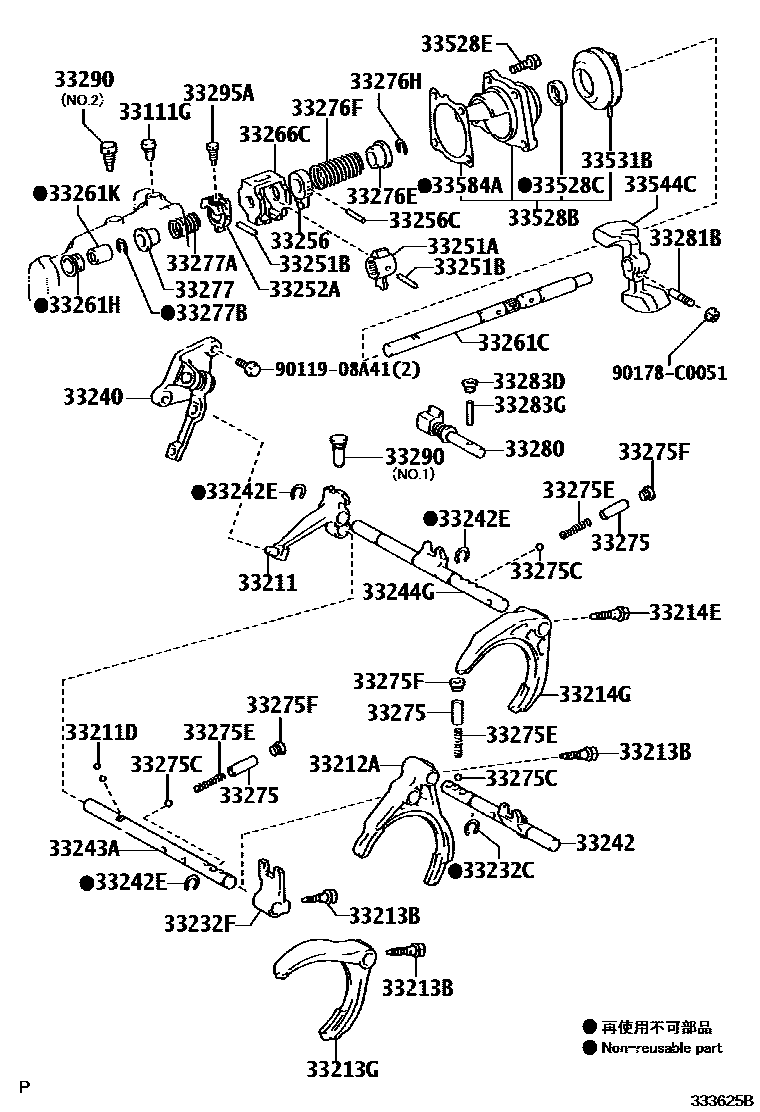

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
sub90930-C3017
33211FORK, REVERSE SHIFT
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33214GFORK, GEAR SHIFT, NO.3
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
sub33240-0D040
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261HSEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT)
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
sub90369-C0008
33266CPLATE, SHIFT INTERLOCK
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
sub33276-0D030
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
sub90520-C0034
33277SEAT, SELECT SPRING, NO.2
sub33277-0D050
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
sub33280-0D020
33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
NO.2
NO.1
33295ASHAFT, REVERSE RESTRICT
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
*10-1.25PX25-25
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33544CDAMPER, SHIFT LEVER
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9011908A41
main90119-08A41
90178C0051
main90178-C0051
48 parts on this diagram · 1 diagram in section
