CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0D030iNCP92..5F200802-201008

main04313-0D040iZSP92..5F200802-201008

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0D030iNCP92..5F200802-201307

main31470-0D040iZSP92..5F200802-201307

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iNCP92,ZSP92..5F200802-201307

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iNCP92,ZSP92..5F200802-201008

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-02010iNCP92,ZSP92..5F200802-201008

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP92,ZSP92..5F200802-201008

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-0N010iNCP92,ZSP92..5F200802-201008

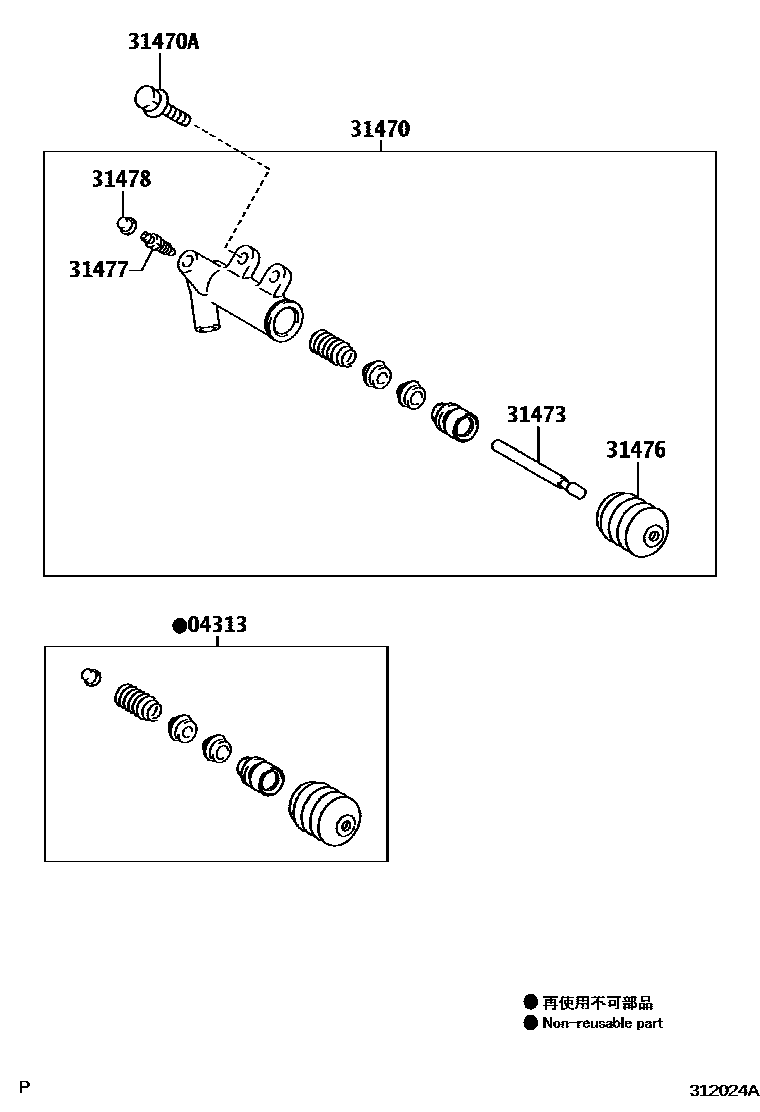

7 parts on this diagram · 1 diagram in section
