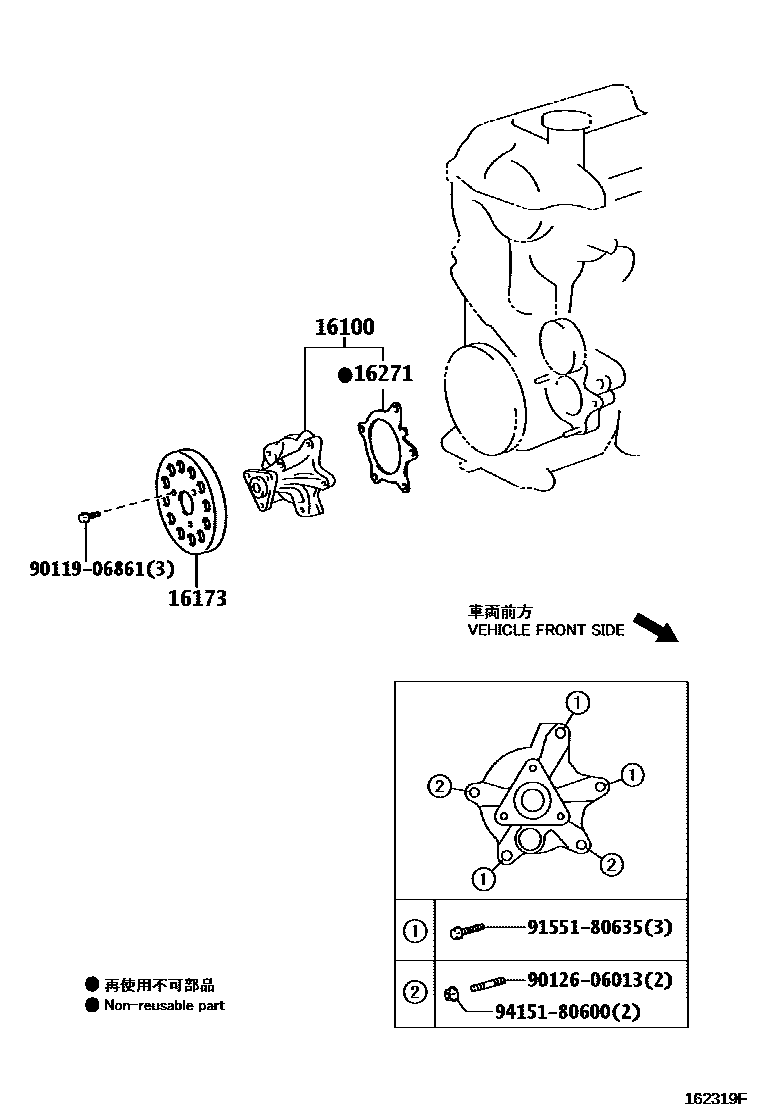

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09550i1ZRFE..ZSP92200909-201008

(L)

main16100-29156i2NZFE..NCP92200802-201008

main16100-29157i2NZFE..NCP92201111

sub16100-29158

main16100-39465i1ZRFE..ZSP92200802-200906

sub91551-80825

main16100-39466i1ZRFE..ZSP92200906-200909

(J)

16173PULLEY, WATER PUMP

main16173-21020i2NZFE..NCP92200802-201008

sub16173-21021

16271GASKET, WATER PUMP

main16271-21020i2NZFE..NCP92200802-201008

main16271-21021i2NZFE..NCP92201111

main16271-37010i1ZRFE..ZSP92200802-201008

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
