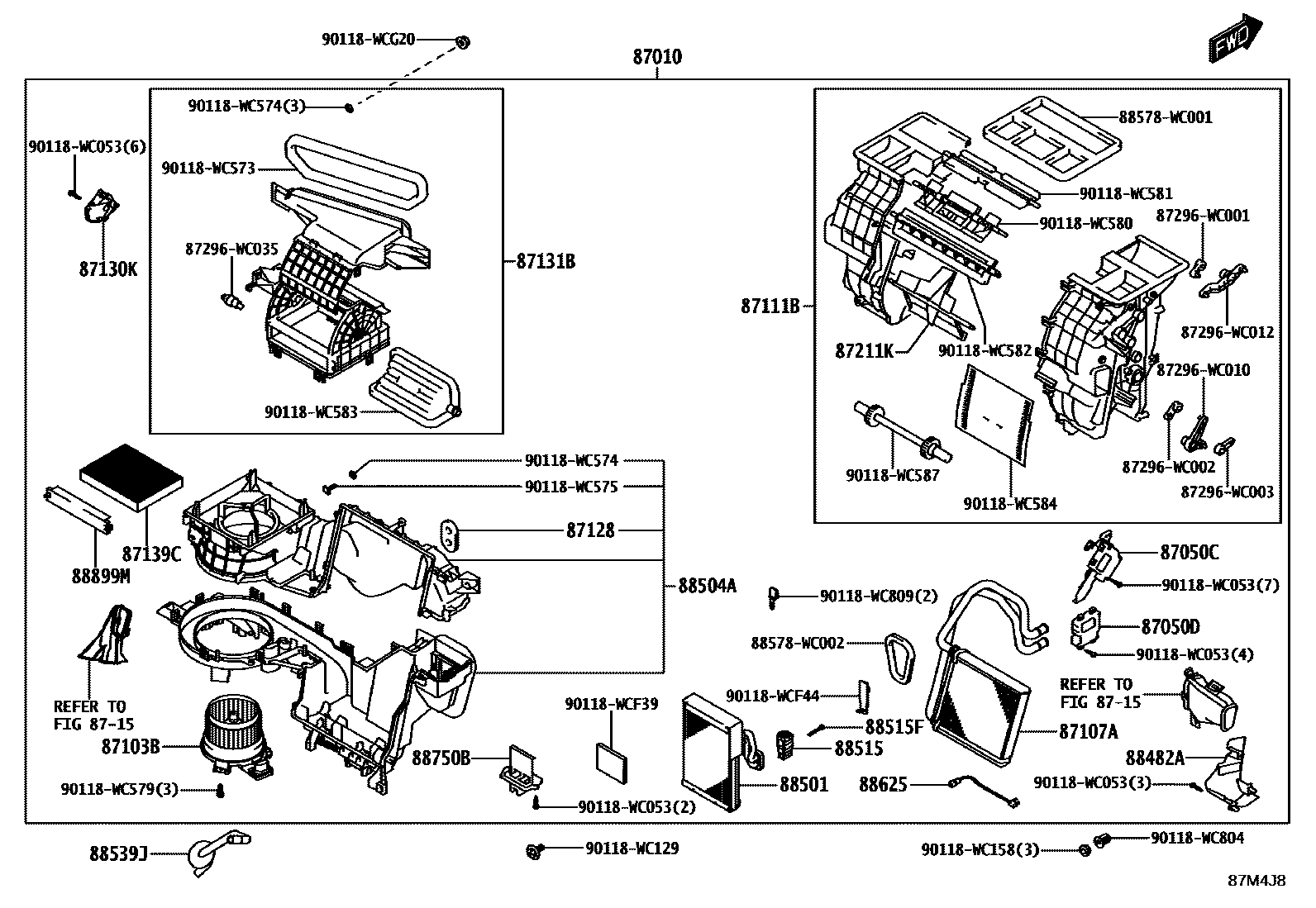

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87010UNIT ASSY, AIR CONDITIONER

main87010-WC023

main87010-WC024

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

87103BMOTOR SUB-ASSY, BLOWER W/FAN

87107AUNIT SUB-ASSY, HEATER RADIATOR

87111BCASE, HEATER

87128GROMMET, HEATER

main87128-WC001iK15B202404

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

87131BCASE, HEATER BLOWER

87139CFILTER, CLEAN AIR

main87139-WC001iK15B202404

STANDARD

8715

87211KDUCT, AIR

main87201-WC001iK15B202404

88482ACOVER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-WC007

main88501-WC008

88504ACASE SUB-ASSY, BLOWER

88515VALVE, COOLER EXPANSION

main88515-WC004iK15B202404

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90118-WC578iK15B202404

88539JHOSE, DRAIN COOLER

88625THERMISTOR, COOLER, NO.1

main88625-WC001iK15B202404

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main87138-WC001iK15B202404

88899MPLATE, COVER(FOR AIR FILTER)

main90118-WC588iK15B202404

87296WC001WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC001

87296WC002WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC002

87296WC003WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC003

87296WC010WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC010

87296WC012WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC012

87296WC035WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC035

88578WC001PAKING, COOLER AIR DUCT

main88578-WC001

88578WC002PAKING, COOLER AIR DUCT

main88578-WC002

90118WC053

main90118-WC053

90118WC129

main90118-WC129

90118WC158

main90118-WC158

90118WC573

main90118-WC573

90118WC574

main90118-WC574

90118WC575

main90118-WC575

90118WC579

main90118-WC579

90118WC580

main90118-WC580

90118WC581

main90118-WC581

90118WC582

main90118-WC582

90118WC583

main90118-WC583

90118WC584

main90118-WC584

90118WC587

main90118-WC587

90118WC804

main90118-WC804

90118WC809

main90118-WC809

90118WCF39

main90118-WCF39

90118WCF44

main90118-WCF44

90118WCG20

main90118-WCG20

47 parts on this diagram · 2 diagrams in section
