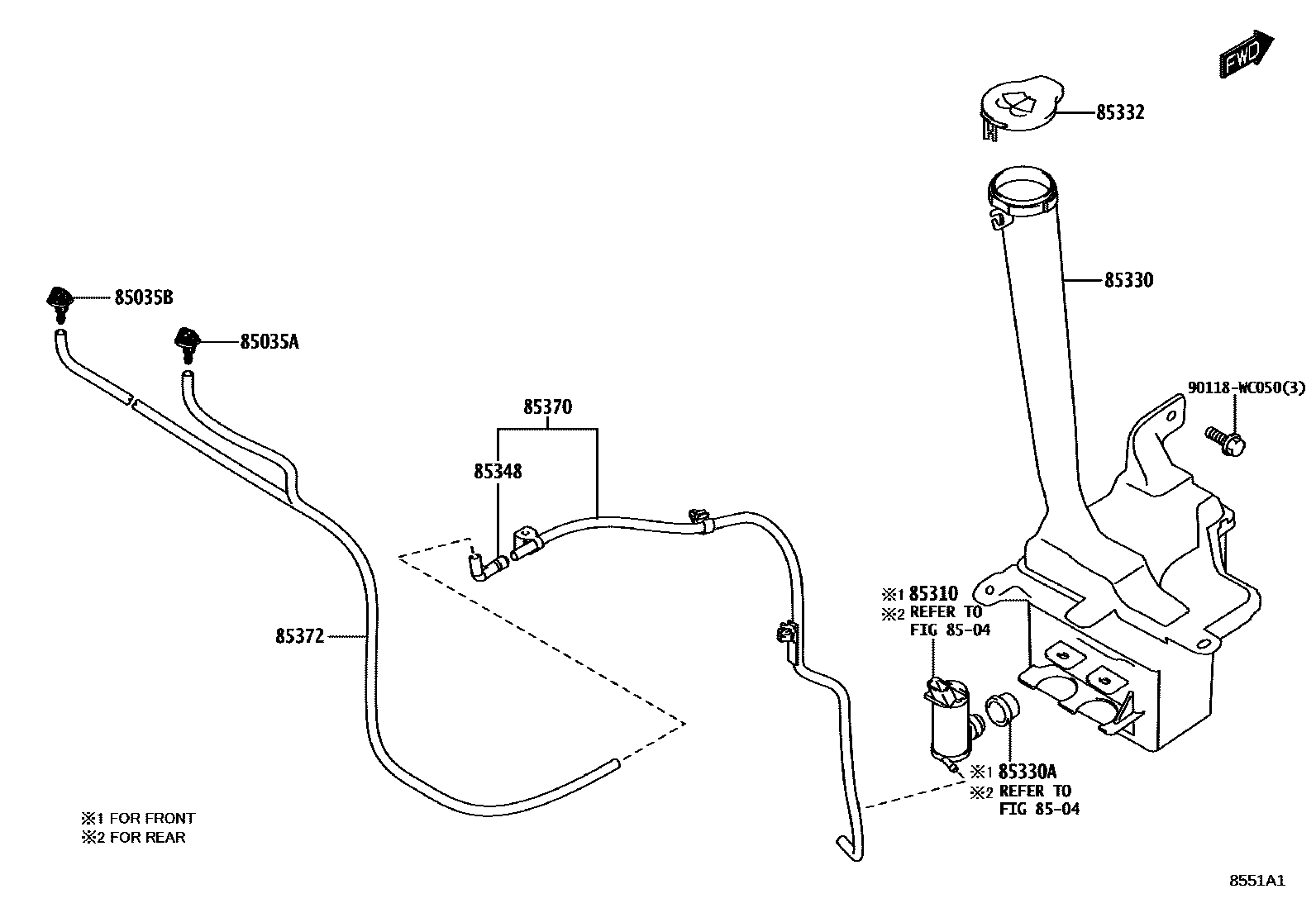

WINDSHIELD WASHER
85035ANOZZLE, FR WASHER, RH
85035BNOZZLE, FRONT WASHER, LH
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85370HOSE ASSY, WINDSHIELD WASHER
POS.1
POS.2
POS.4
POS.5
POS.8
POS.9
POS.3
POS.6
POS.7
POS.10
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90118WC050
main90118-WC050
11 parts on this diagram · 1 diagram in section
