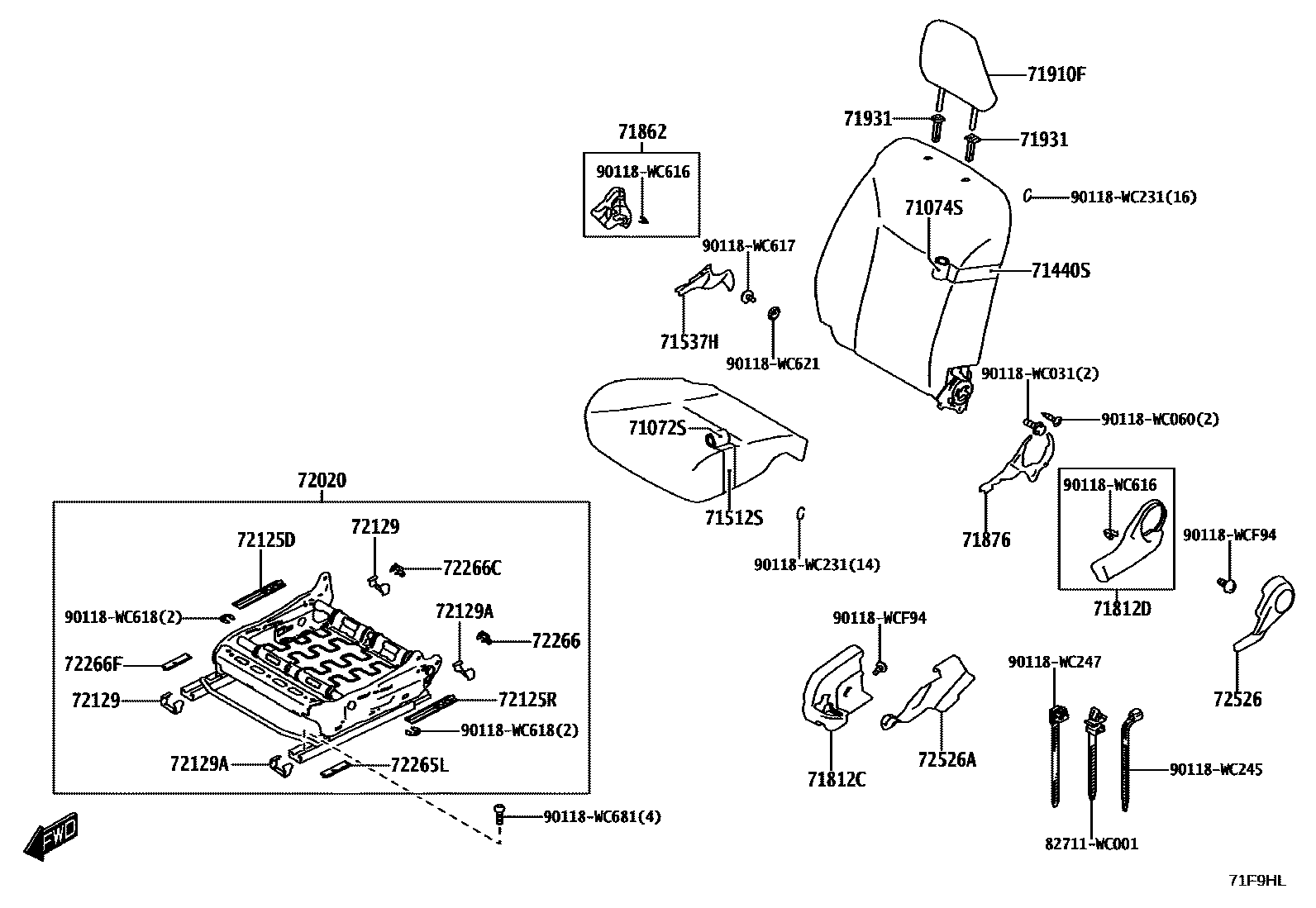

FRONT SEAT & SEAT TRACK

0001 1LH SEAT W/O(SIDE AIR BAG) 0002 1LH SEAT W(SIDE AIR BAG) 0003 1LH SEAT W/O(SIDE AIR BAG) 0004 1LH SEAT W(SIDE AIR BAG) 0005 1RH SEAT W/O(SIDE AIR BAG) 0006 1RH SEAT W(SIDE AIR BAG) 0007 1RH SEAT W/O(SIDE AIR BAG) 0008 1RH SEAT W(SIDE AIR BAG)

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71876-WC002iK15B202404

71812CCOVER, RECLINING ADJUSTER, LH

71812DSHIELD, FRONT SEAT CUSHION, LH

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-WC001iK15B202404

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-WC001iK15B202404

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-WC052iK15B202404

71931SUPPORT, FRONT SEAT HEADREST

main71930-WC001iK15B202404

W(LOCK)

main71931-WC001iK15B202404

W/O(LOCK)

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-WC004

main72020-WC005

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-WC002iK15B202404

72125RCOVER, SEAT TRACK, UPPER REAR NO.1

main72125-WC002iK15B202404

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-WC001iK15B202404

72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2

main72129-WC001iK15B202404

72265COVER, SEAT TRACK UPPER RAIL, RH

main72125-WC001iK15B202404

72265LCOVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR LH SEAT)

main72129-WC002iK15B202404

72266COVER, SEAT TRACK UPPER RAIL, LH

main72125-WC001iK15B202404

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72125-WC001iK15B202404

72266FCOVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT)

main72129-WC002iK15B202404

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-WC003iK15B202404

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-WC001

90118WC031

main90118-WC031

90118WC060

main90118-WC060

90118WC231

main90118-WC231

90118WC245

main90118-WC245

90118WC247

main90118-WC247

90118WC616

main90118-WC616

90118WC617

main90118-WC617

90118WC618

main90118-WC618

90118WC621

main90118-WC621

90118WC681

main90118-WC681

90118WCF94

main90118-WCF94

35 parts on this diagram · 8 diagrams in section
