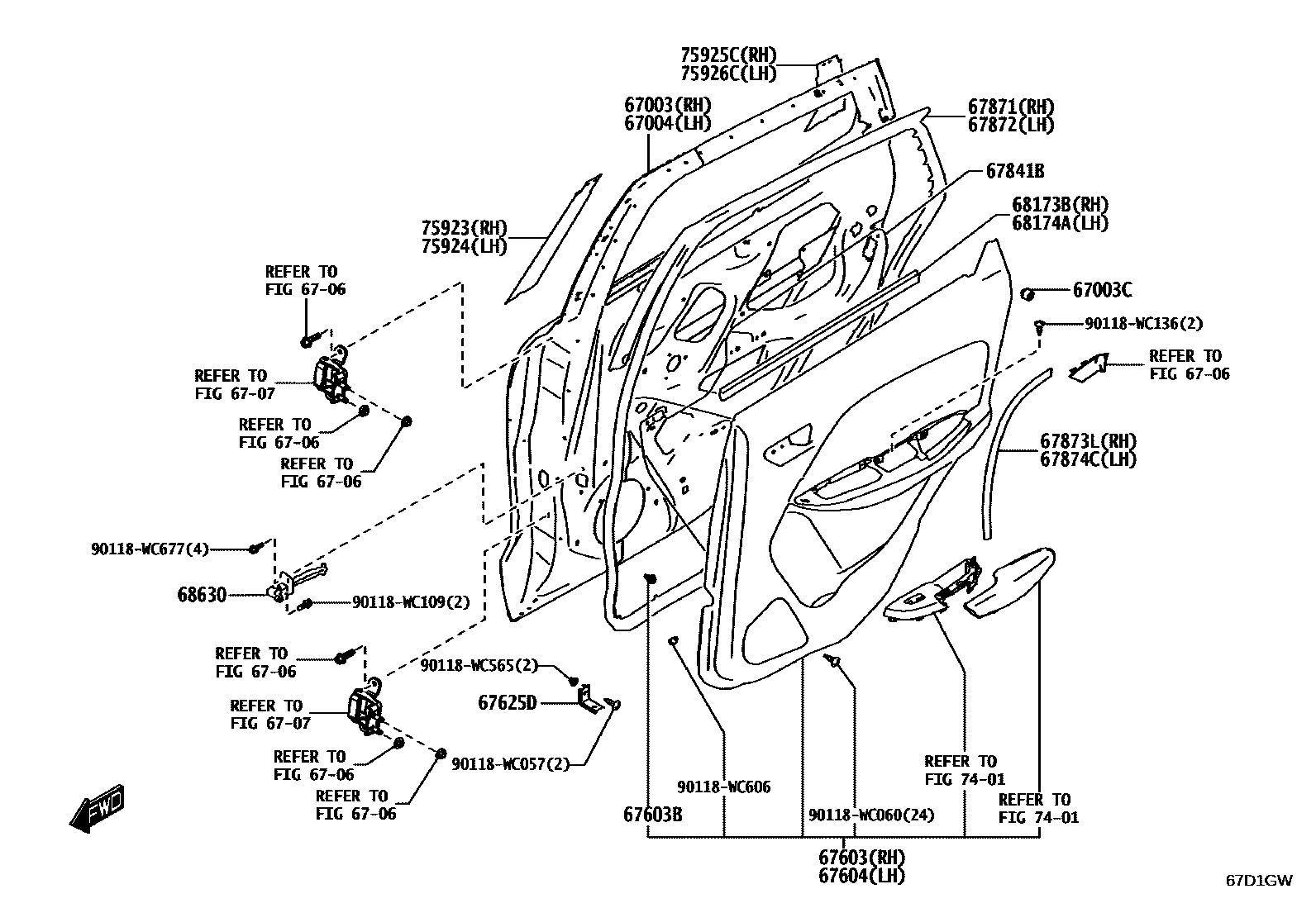

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-WC013iK15B202404

67003CCUSHION, REAR DOOR PANEL

main90118-WC601iK15B202404

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-WC013iK15B202404

6706

6707

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-WC030

main67630-WC031

main90118-WC265

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90118-WC265iK15B202404

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-WC030

main67640-WC031

67625DBRACKET, REAR DOOR TRIM

main90118-WCF61iK15B202404

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-WC006iK15B202404

67871WEATHERSTRIP, REAR DOOR, RH

main67871-WC005iK15B202404

67872WEATHERSTRIP, REAR DOOR, LH

main67872-WC005iK15B202404

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67871-WC009iK15B202404

67874CWEATHERSTRIP, REAR DOOR, NO.5 LH

main67872-WC009iK15B202404

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-WC002iK15B202404

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-WC001iK15B202404

68630CHECK ASSY, REAR DOOR

main68610-WC002iK15B202404

7401

75923TAPE, BLACK OUT, NO.2 RH

main75923-WC001iK15B202404

75924TAPE, BLACK OUT, NO.2 LH

main75924-WC001iK15B202404

75925CTAPE, BLACK OUT, NO.3 RH

main75925-WC001iK15B202404

75926CTAPE, BLACK OUT, NO.3 LH

main75926-WC001iK15B202404

90118WC057

main90118-WC057

90118WC060

main90118-WC060

90118WC109

main90118-WC109

90118WC136

main90118-WC136

90118WC565

main90118-WC565

90118WC606

main90118-WC606

90118WC677

main90118-WC677

29 parts on this diagram · 2 diagrams in section
