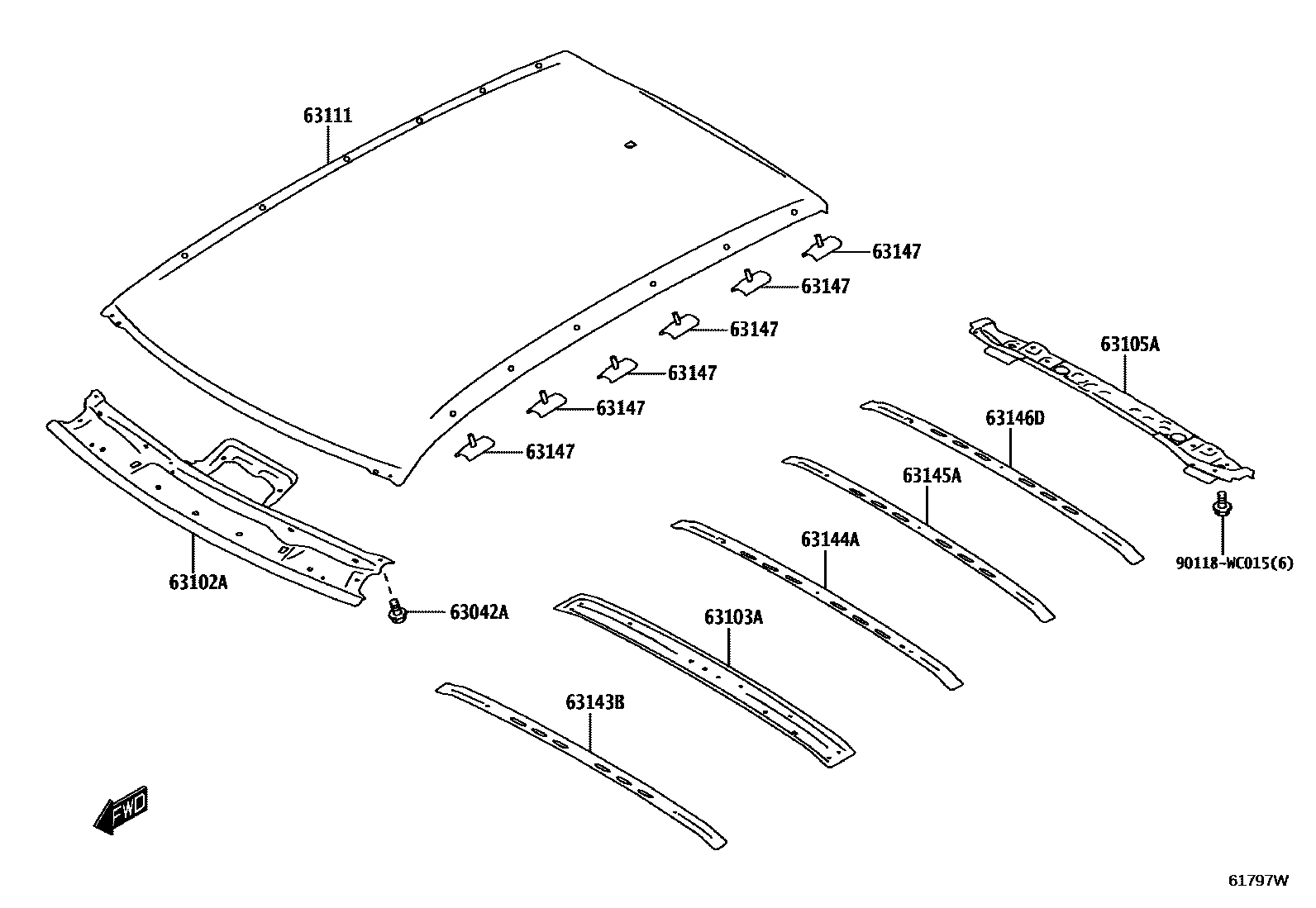

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63042ABOLT

main90118-WC015iK15B202404

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-WC001iK15B202404

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-WC007iK15B202404

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-WC002iK15B202404

63111PANEL, ROOF

main63111-WC011iK15B202404

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-WC004iK15B202404

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-WC006iK15B202404

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63145-WC003iK15B202404

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63147-WC004iK15B202404

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-WC008iK15B202404

90118WC015

main90118-WC015

11 parts on this diagram · 2 diagrams in section
