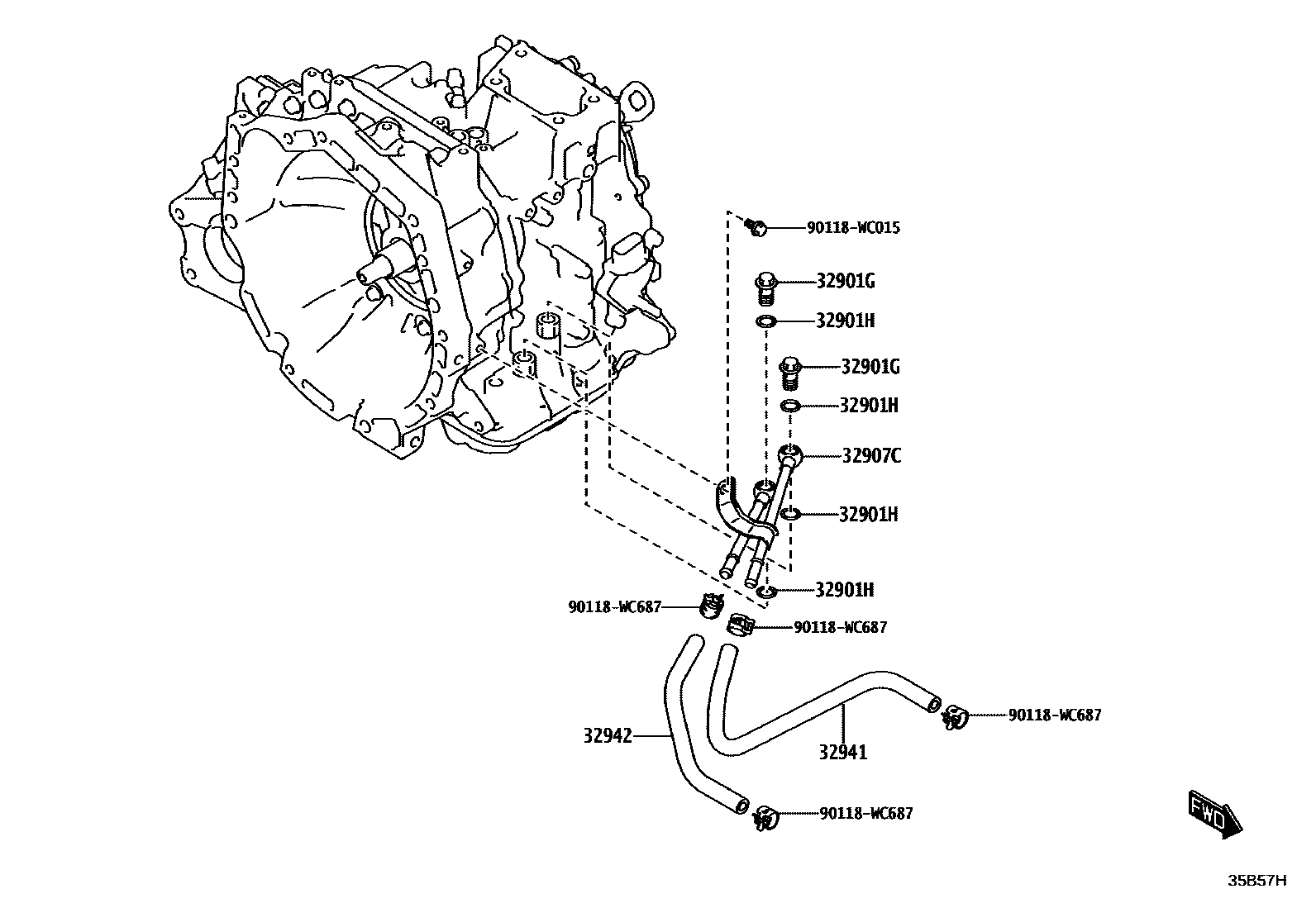

OIL COOLER & TUBE (ATM)

32901GBOLT, UNION(FOR OIL COOLER)

32901HGASKET(FOR OIL COOLER UNION)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

32941HOSE, OIL COOLER INLET, NO.1

main32941-WC005

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-WC005

90118WC015

main90118-WC015

90118WC687

main90118-WC687

7 parts on this diagram · 1 diagram in section
