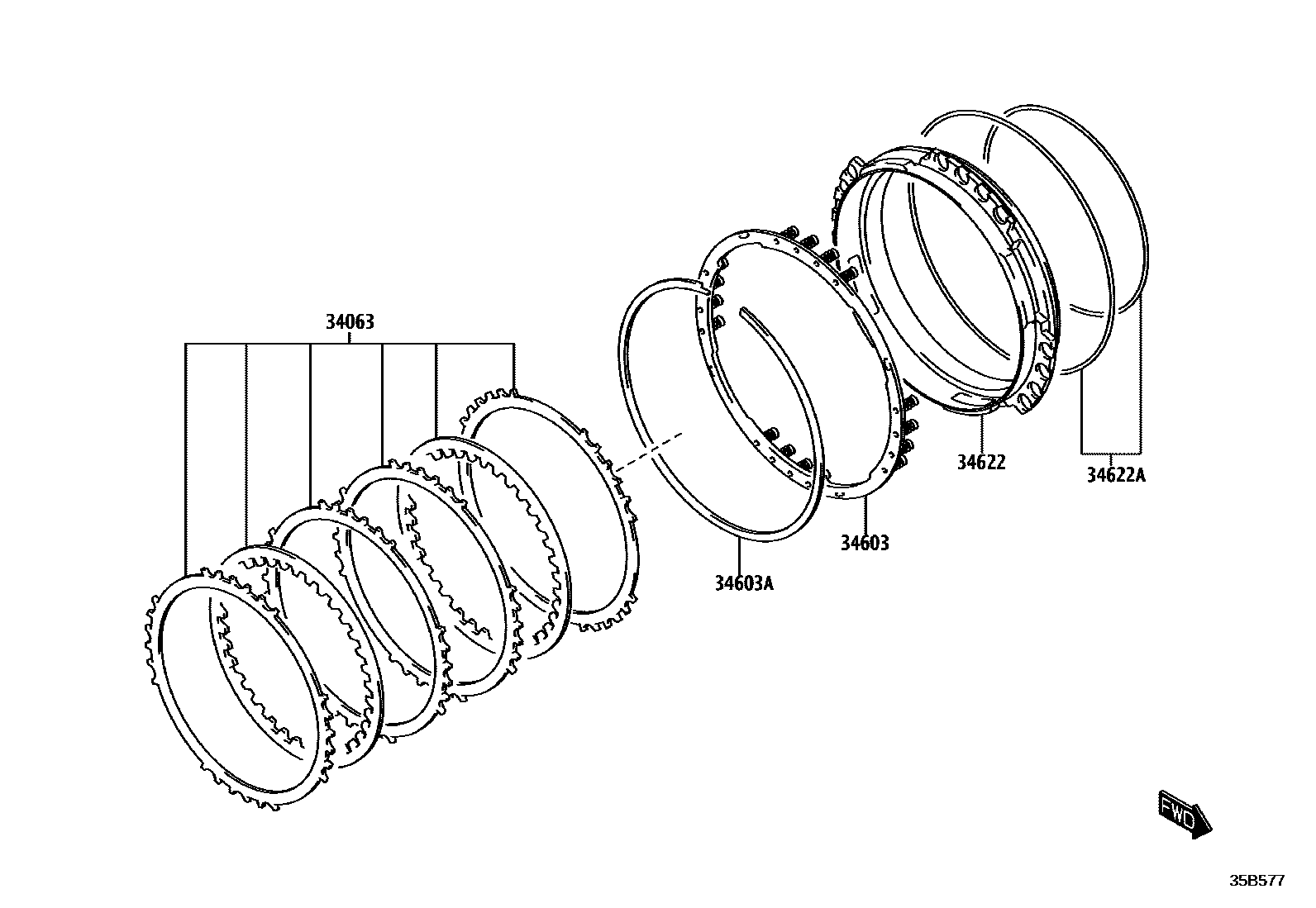

OVERDRIVE GEAR (ATM)

34063DISC SET, OVERDRIVE BRAKE

main34633-WC001

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-WC001

main90118-WC770

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

34622PISTON, OVERDRIVE BRAKE

main34622-WC001

main90118-WC769

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

5 parts on this diagram · 1 diagram in section
