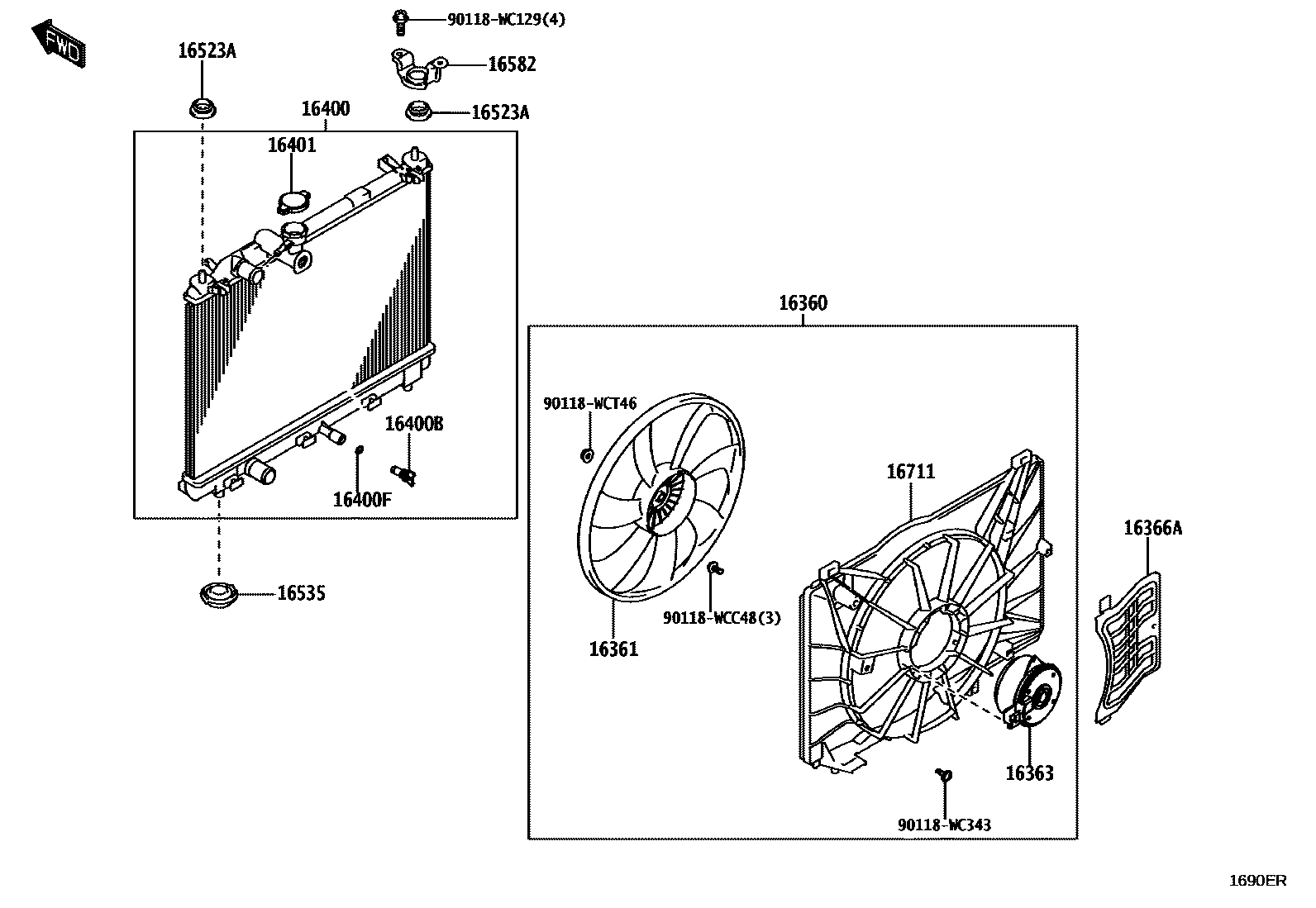

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16360BLOWER ASSY, W/SHROUD

main16360-WC011iK15B..K15B202404

16361FAN

main16361-WC006iK15B..K15B202404

16363MOTOR, COOLING FAN

main16363-WC003iK15B..K15B202404

16366AINSULATOR, COOLING FAN MOTOR

main16366-WC002iK15B..K15B202404

16400RADIATOR ASSY

main16417-WC001

main16400-WC001

main16492-WC001

main16400-WC002

16400BPLUG, RADIATOR DRAIN COCK

main16417-WC001iK15B..K15B202404

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-WC001iK15B..K15B202404

16401CAP SUB-ASSY, RADIATOR

main16401-WC001iK15B..K15B202404

16523ACUSHION, RADIATOR SUPPORT

main16523-WC001iK15B..K15B202404

16535SUPPORT, RADIATOR, LOWER

main90118-WC349iK15B..K15B202404

16582BRACKET, RADIATOR, NO.1

main16582-WC001iK15B..K15B202404

16711SHROUD, FAN

main16711-WC007iK15B..K15B202404

90118WC129

main90118-WC129

90118WC343

main90118-WC343

90118WCC48

main90118-WCC48

90118WCT46

main90118-WCT46

16 parts on this diagram · 4 diagrams in section
