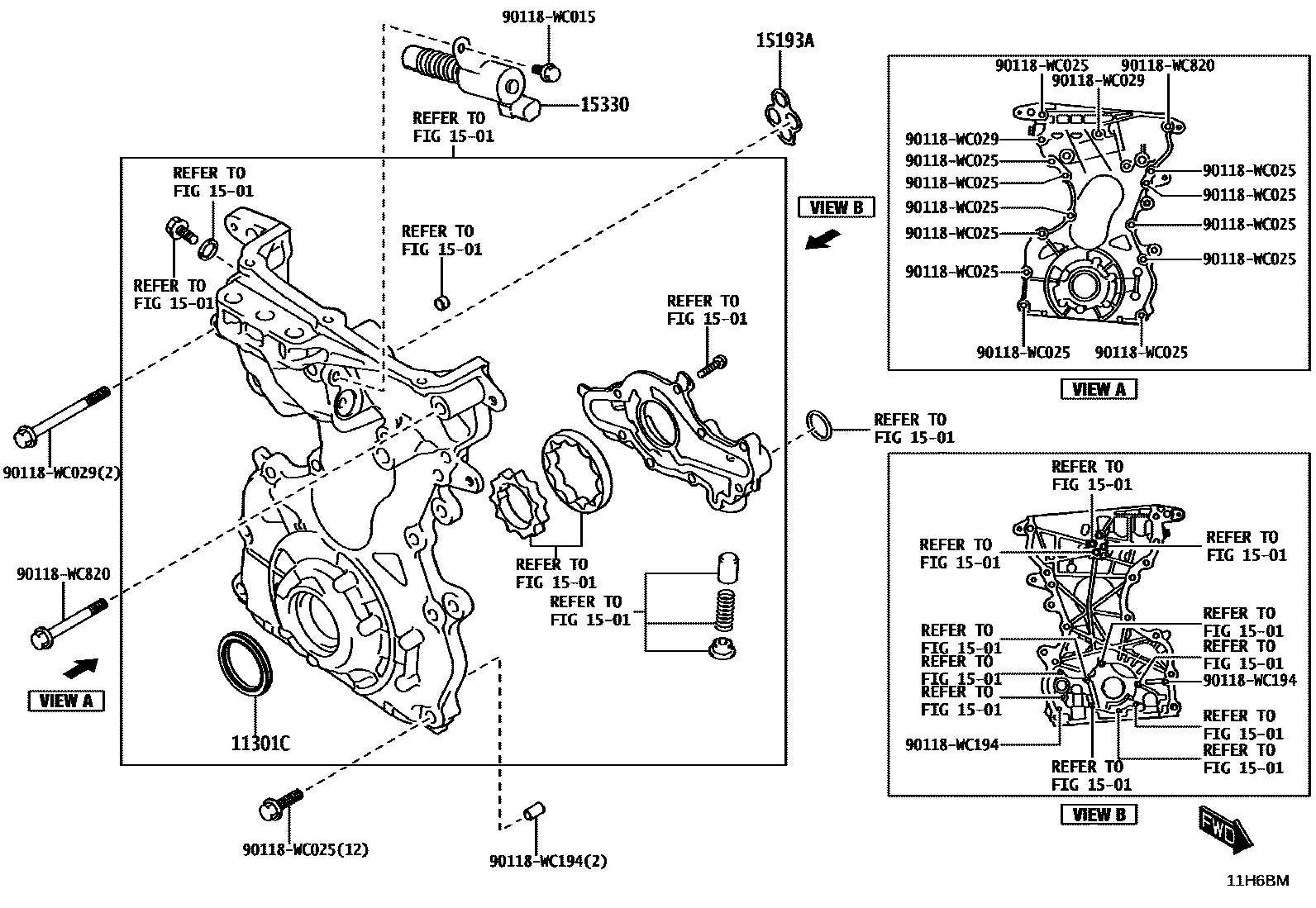

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90118-WC339iK15B..K15B202404

1501

15193AGASKET, OIL PUMP

main90118-WC336iK15B..K15B202404

15330VALVE ASSY, CAM TIMING OIL CONTROL

main15330-WC004iK15B..K15B202404

90118WC015

main90118-WC015

90118WC025

main90118-WC025

90118WC029

main90118-WC029

90118WC194

main90118-WC194

90118WC820

main90118-WC820

9 parts on this diagram · 1 diagram in section
