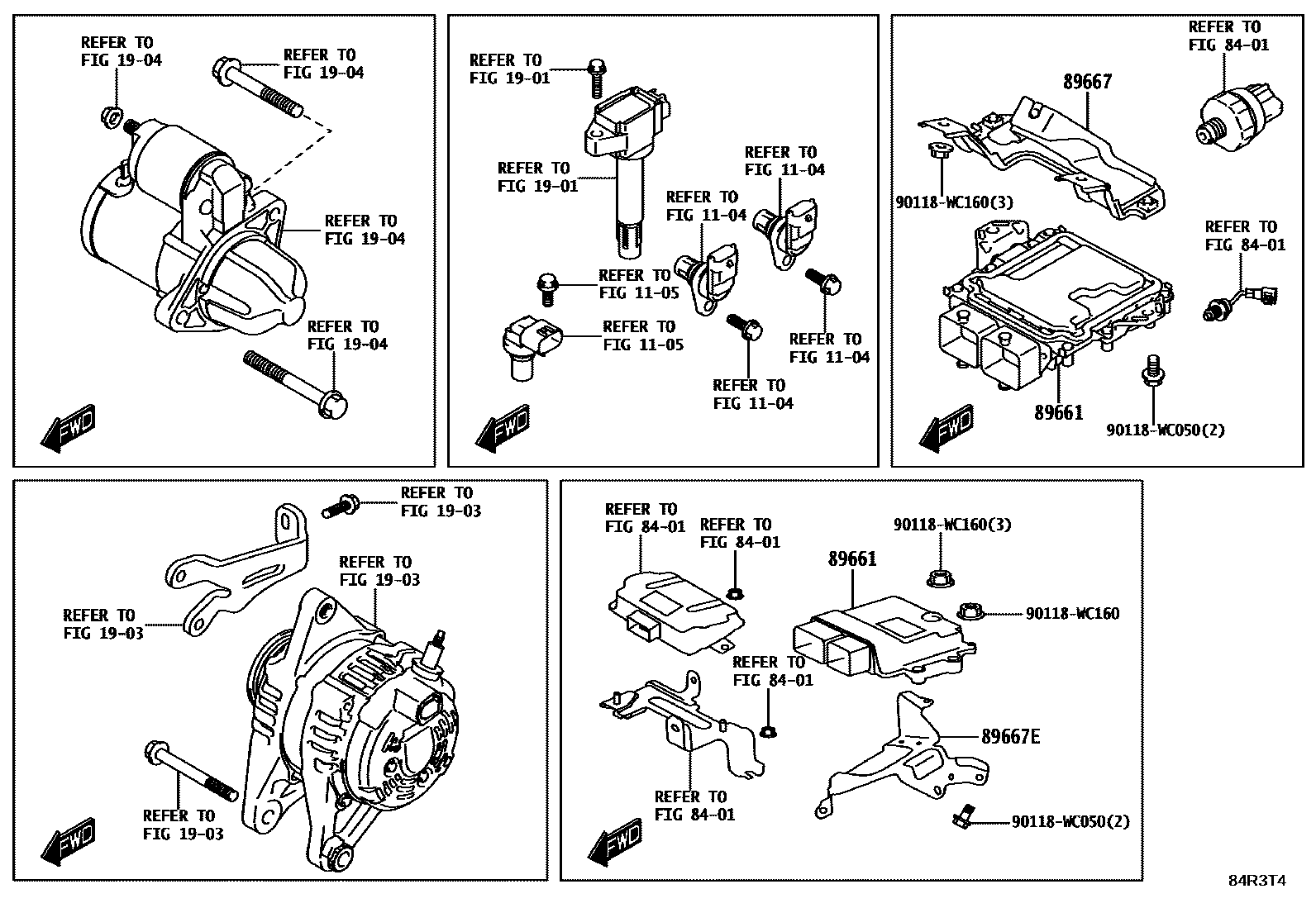

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

1104

1105

1901

1903

1904

8401

89661COMPUTER, ENGINE CONTROL

main89661-WC064iK12N..MTM..S..GAS202404

POS.8

main89661-WC065iK12N..AMT..D202404

POS.34

main89661-WC066iK12N..E..CNG202404

POS.38

main89661-WC067iK10T..D202404

POS.4

main89661-WC068iK10T..6FC..V202404

POS.22

main89661-WC069iK12N..E..CNG202404

POS.20,NO.2

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-WC001iK12N..AMT..S202404

POS.30

main89667-WC004iK12N..E..CNG202404

POS.38

main89667-WC019×2iK10T..6FC..V202404

POS.4

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-WC005iK12N..E..CNG202404

POS.38

main89679-WC001iK10T..6FC..V202404

POS.4

90118WC050

main90118-WC050

90118WC160

main90118-WC160

11 parts on this diagram · 2 diagrams in section
