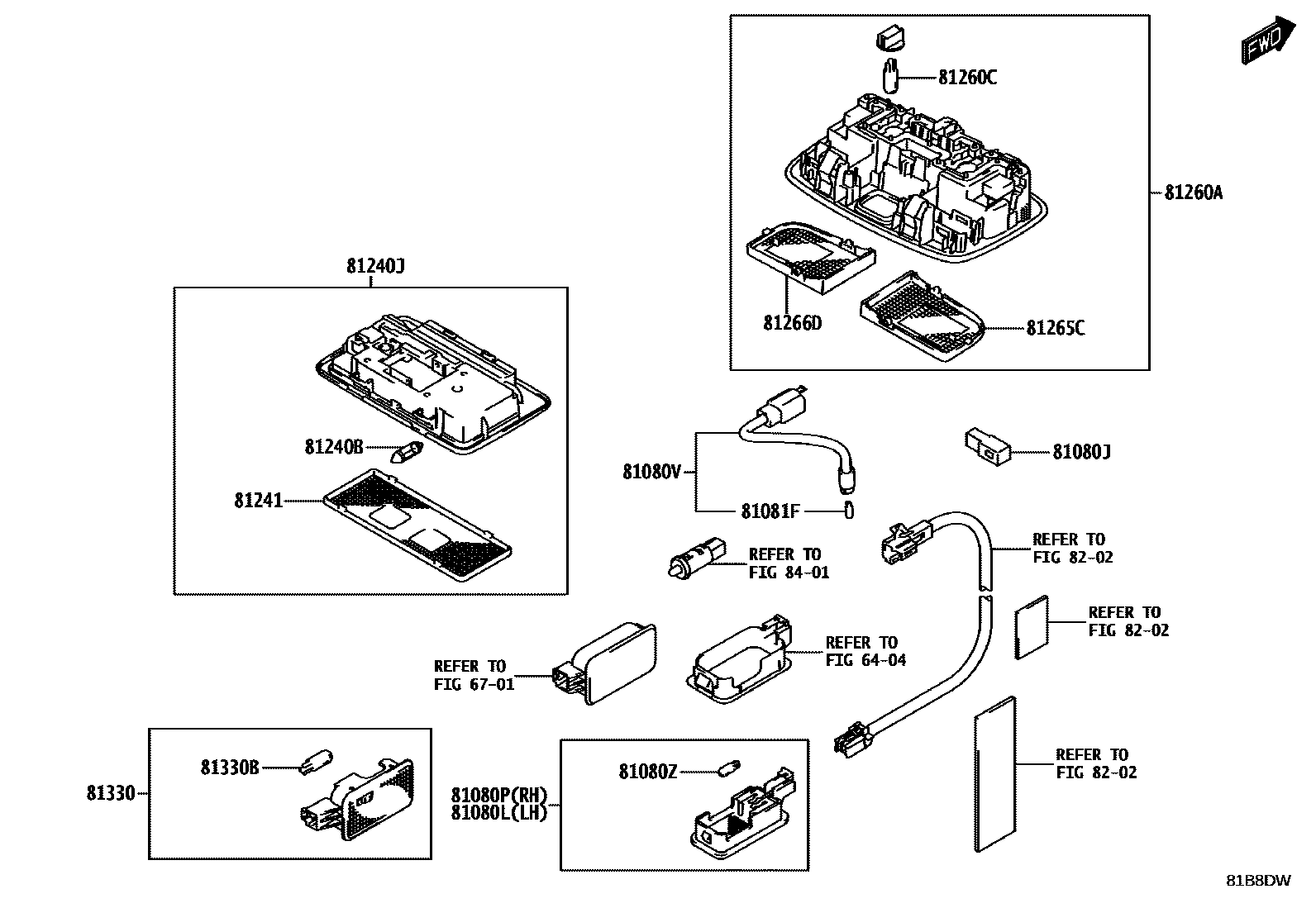

INTERIOR LAMP

0001 1 0002 1

6404

6701

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

81080ZBULB, INTERIOR ILLUMINATION LAMP, NO.1

81081FBULB, INTERIOR ILLUMINATION LAMP, NO.2

81240BBULB, ROOM LAMP, NO.1

main90118-WC270iK10T,12N202404

12V 10W

81240JLAMP ASSY, ROOM

main81230-WC002iK10T,12N202404

81241LENS, ROOM LAMP, NO.1

main81241-WC001iK10T,12N202404

81260ALAMP ASSY, MAP

81260CBULB(FOR MAP LAMP)

81265CLENS, MAP LAMP, NO.1

81266DLENS, MAP LAMP, NO.2

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81230-WC003

main90118-WC272

81330BBULB, LUGGAGE COMPARTMENT LAMP

8202

8401

19 parts on this diagram · 2 diagrams in section
