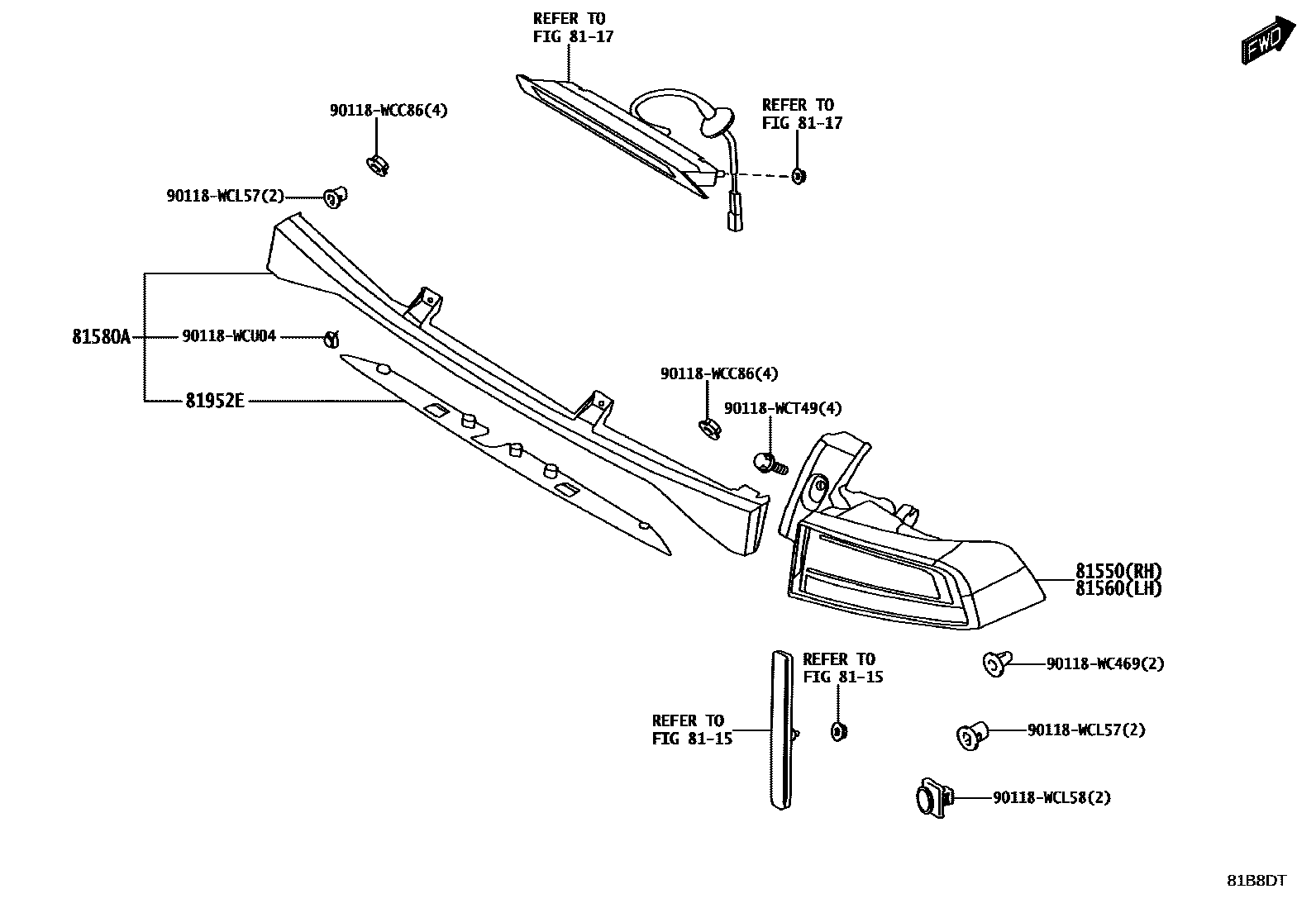

REAR COMBINATION LAMP

8115

8117

81550LAMP ASSY, REAR COMBINATION, RH

main81551-WC011iK10T,12N202404

81560LAMP ASSY, REAR COMBINATION, LH

main81561-WC010iK10T,12N202404

81580ALAMP ASSY, REAR

main81670-WC001iK10T..D202404

POS.12

main81670-WC002iK10T..5F..V202404

POS.2

81952ECOVER, REAR LAMP

main81207-WC001iK10T..D202404

POS.12

main81207-WC002iK10T..5F..V202404

POS.2

90118WC469

main90118-WC469

90118WCC86

main90118-WCC86

90118WCL57

main90118-WCL57

90118WCL58

main90118-WCL58

90118WCT49

main90118-WCT49

90118WCU04

main90118-WCU04

12 parts on this diagram · 1 diagram in section
