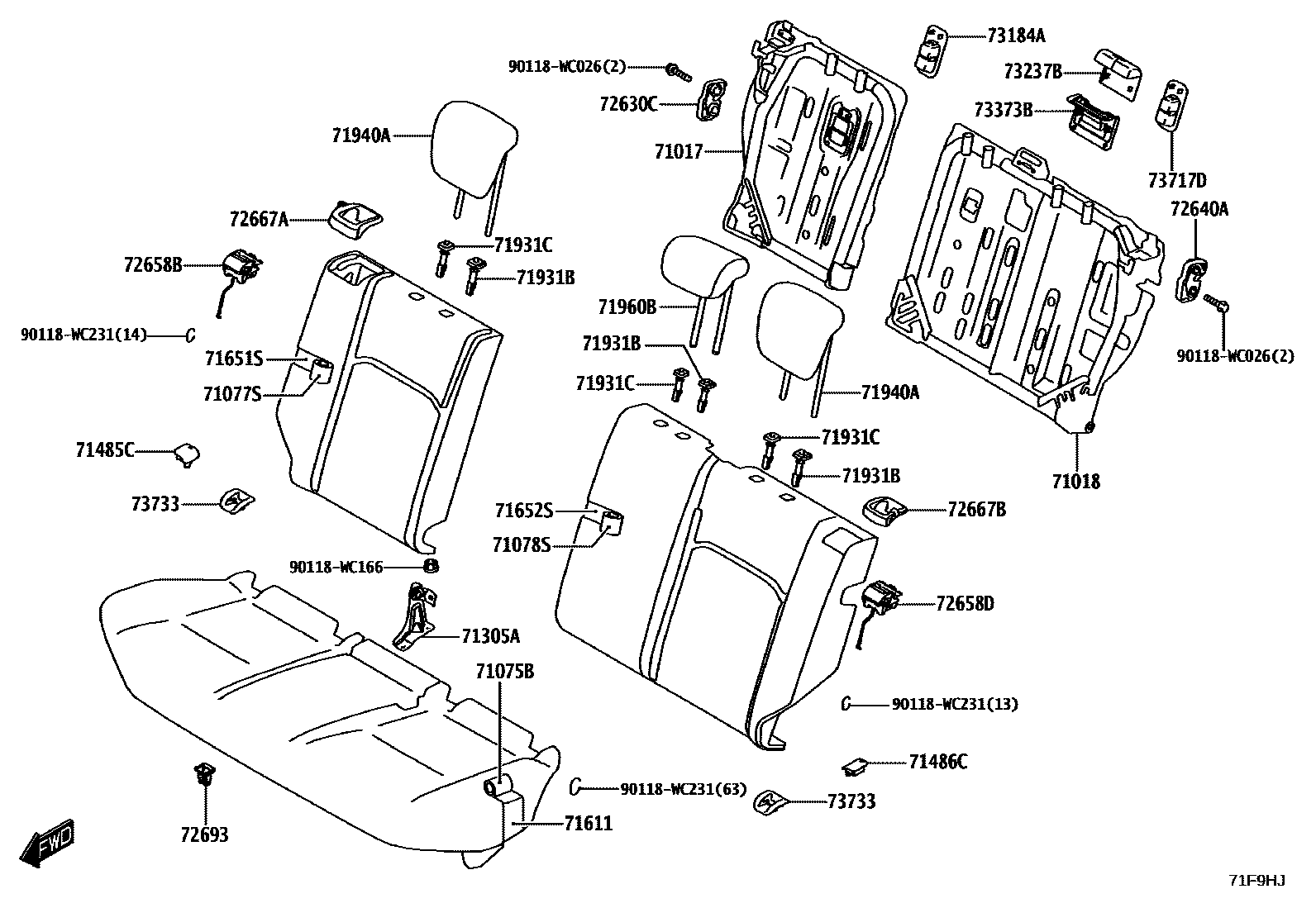

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71485CCOVER, REAR SEAT HINGE, RH
71486CCOVER, REAR SEAT HINGE, LH
71611PAD, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
W(LOCK)
71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST
W/O(LOCK)
71940AHEADREST ASSY, REAR SEAT
71960BHEADREST ASSY, REAR SEAT, CENTER
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72658BKNOB, REAR SEAT LOCK HANDLE
72658DKNOB, REAR SEAT LOCK HANDLE
72667ABEZEL, REAR SEATBACK LOCK, UPPER RH
72667BBEZEL, REAR SEATBACK LOCK, UPPER LH
sub72667-WC010
72693HOOK, REAR SEAT CUSHION LOCK
73184ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73237BCOVER, SHOULDER BELT ANCHOR
73373BCOVER, REAR NO.1 SEAT SHOULDER BELT
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73733COVER, CHILD RESTRAINT SEAT BASE
90118WC026
main90118-WC026
90118WC166
main90118-WC166
90118WC231
main90118-WC231
30 parts on this diagram · 1 diagram in section
