BACK DOOR PANEL & GLASS

64790DCAP, BACK DOOR TRIM PANEL

main90118-WCF63×3iK10T,12N202404

64791BCOVER, BACK DOOR TRIM

main64791-WC001iK10T,12N202404

64819SPACER, BACK WINDOW GLASS, NO.2

main64827-WC001×2iK10T,12N202404

67005PANEL SUB-ASSY, BACK DOOR

main67005-WC021iK10T,12N202404

6709

67173CUSHION, BACK DOOR

main90118-WCG72×4iK10T,12N202404

67751BOARD, BACK DOOR TRIM

main67751-WC010iK10T,12N202404

67818BSPACER, BACK WINDOW GLASS

main56116-WC002×4iK10T,12N202404

67881AWEATHERSTRIP, BACK DOOR

main67881-WC009iK10T,12N202404

68131GLASS, BACK DOOR

main68105-WC019iK12N..AMT..D202404

POS.8

main68105-WC020iK10T..6FC..V202404

POS.2

7504

7601

56115WC002FILM, INNER REAR VIEW MIRROR TO WINDSHIELD

main56115-WC002

56116WC001SPACER, WINDSHIELD GLASS

main56116-WC001

90118WC265

main90118-WC265

90118WC475

main90118-WC475

90118WCA09

main90118-WCA09

90118WCF12

main90118-WCF12

90118WCU02

main90118-WCU02

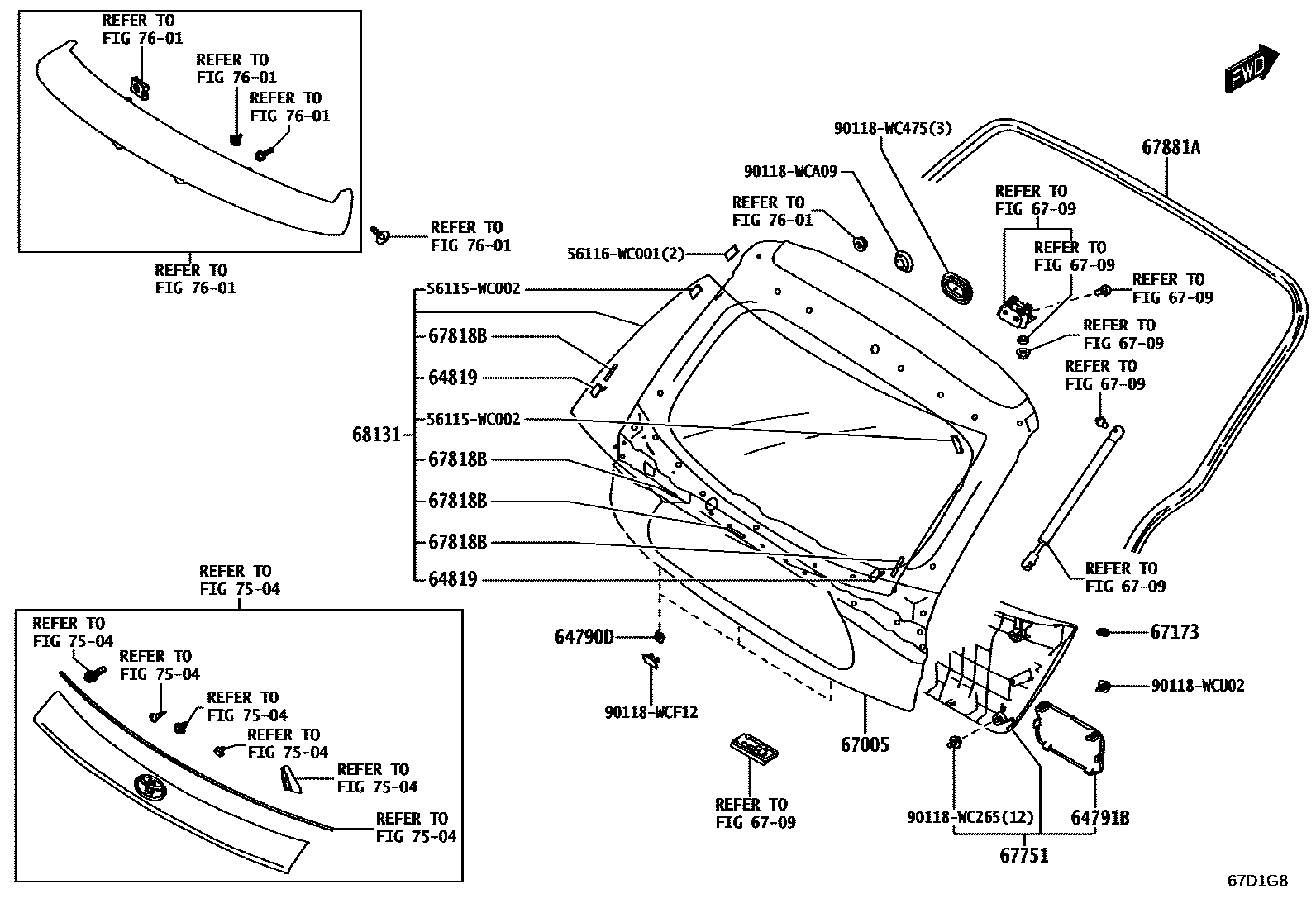

19 parts on this diagram · 1 diagram in section
