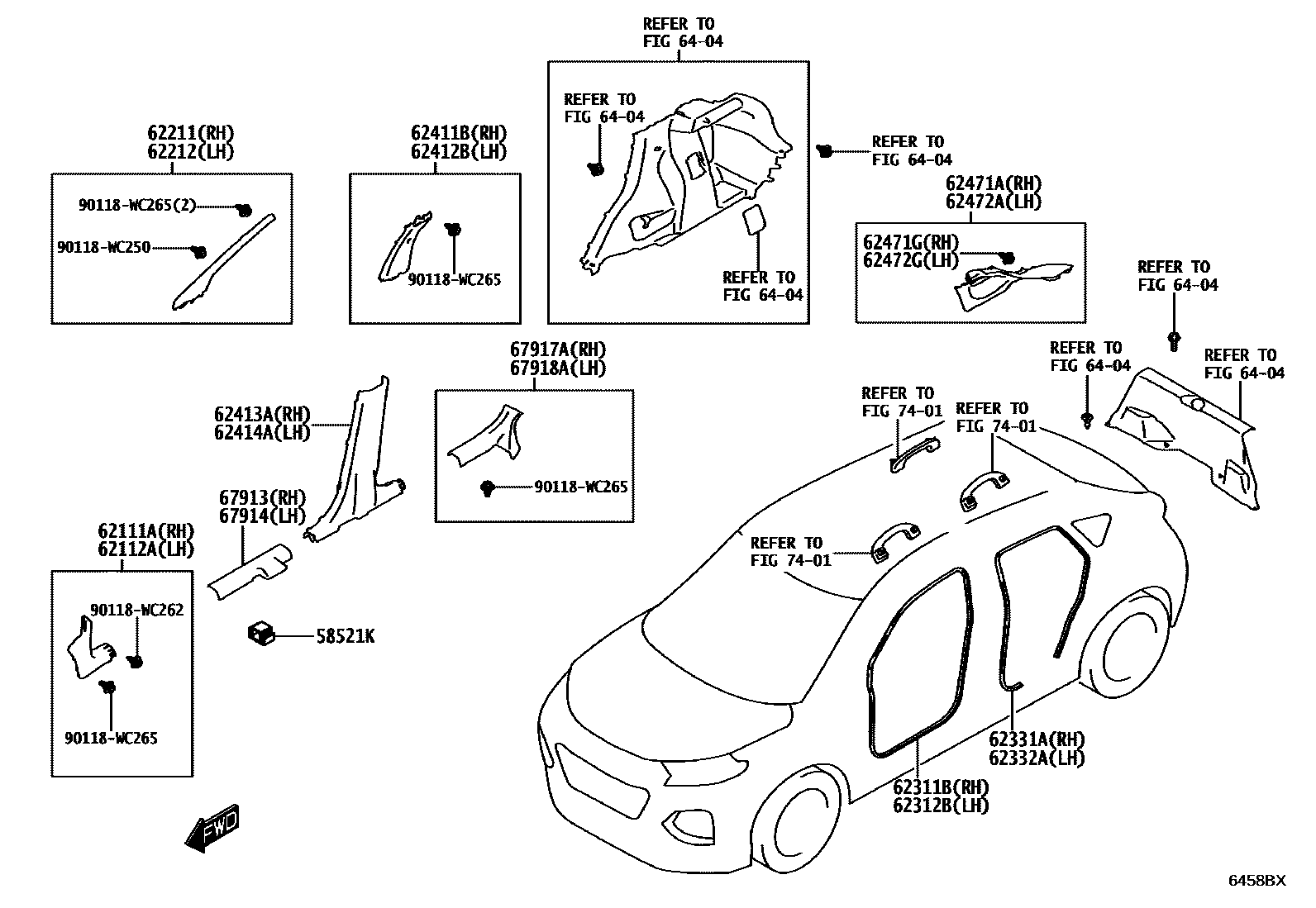

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1W(SRS CURTAIN SHIELD AIR BAG)0003 1

58521KHOOK, FLOOR CARPET

main58521-WC001iK10T,12N202404

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-WC005iK10T,12N202404

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-WC005iK10T,12N202404

62211GARNISH, FRONT PILLAR, RH

main62211-WC005

main62211-WC009

62212GARNISH, FRONT PILLAR, LH

main62212-WC005

main62212-WC009

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-WC009iK10T,12N202404

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62311-WC009iK10T,12N202404

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-WC009iK10T,12N202404

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62331-WC009iK10T,12N202404

62411BGARNISH, CENTER PILLAR, UPPER RH

62412BGARNISH, CENTER PILLAR, UPPER LH

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-WC005iK10T,12N202404

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-WC005iK10T,12N202404

62471AGARNISH, ROOF SIDE, INNER RH

main62510-WC002iK10T,12N202404

62471GCLIP, ROOF SIDE INNER GARNISH

main90118-WC265iK10T,12N202404

62472AGARNISH, ROOF SIDE, INNER LH

main62520-WC002iK10T,12N202404

62472GCLIP (FOR ROOF SIDE GARNISH)

main90118-WC265iK10T,12N202404

6404

67913PLATE, FRONT DOOR SCUFF, RH

main67913-WC005iK10T,12N202404

67914PLATE, FRONT DOOR SCUFF, LH

main67914-WC005iK10T,12N202404

67917APLATE, REAR DOOR SCUFF, RH

main67917-WC005iK10T,12N202404

67918APLATE, REAR DOOR SCUFF, LH

main67918-WC005iK10T,12N202404

7401

90118WC250

main90118-WC250

90118WC262

main90118-WC262

90118WC265

main90118-WC265

26 parts on this diagram · 3 diagrams in section
