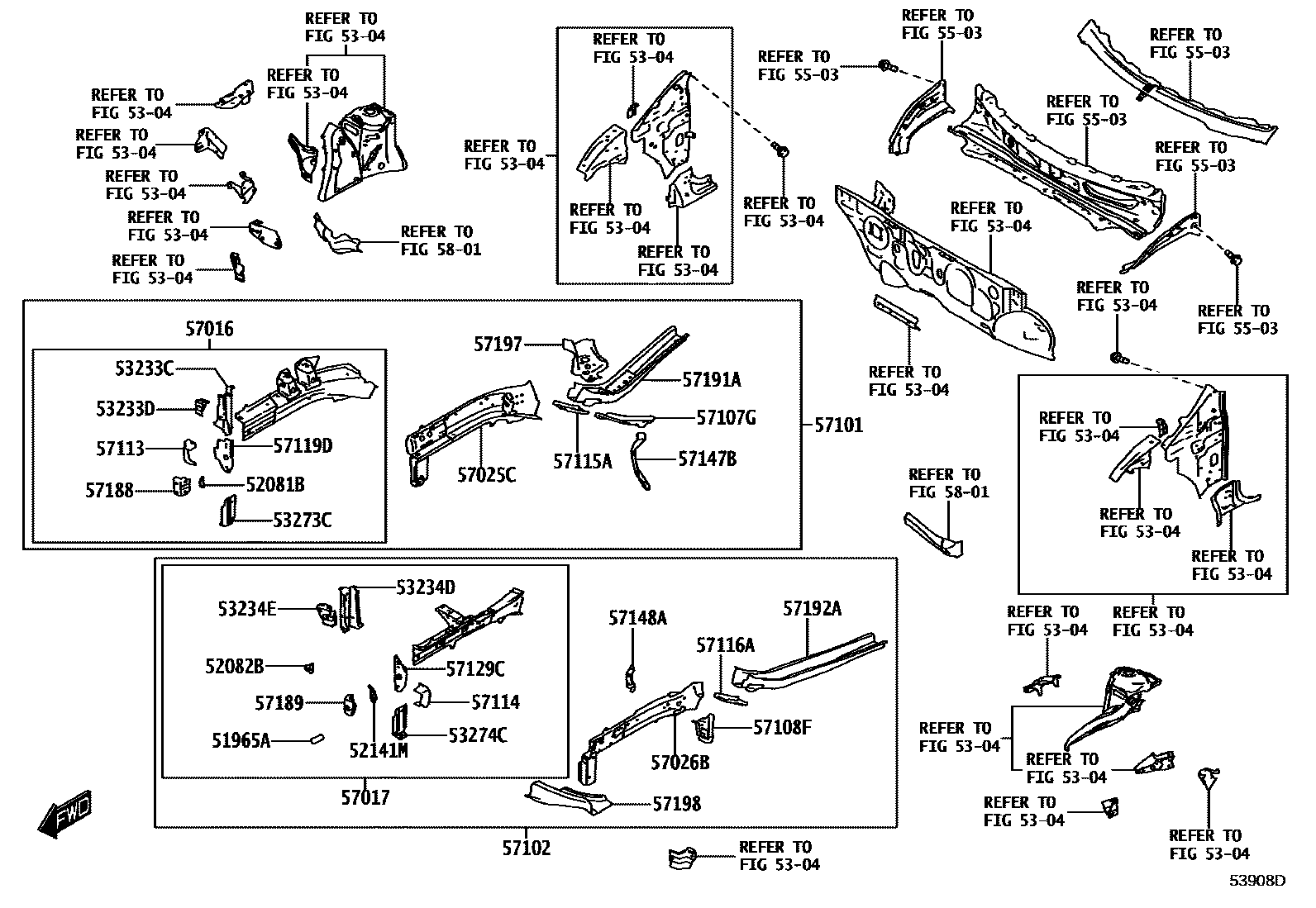

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

51965ARETAINER, FRONT HOOK

main51965-WC001iK10T,12N202404

52081BSTAY SUB-ASSY, FRONT BUMPER, RH

main52081-WC001iK10T,12N202404

52082BSTAY SUB-ASSY, FRONT BUMPER, LH

main52081-WC001iK10T,12N202404

52141MSTAY, FRONT BUMPER

main52141-WC001iK10T,12N202404

5304

53233CBRACKET, HEADLAMP, INNER RH

main53233-WC009iK10T,12N202404

53233DBRACKET, HEADLAMP, NO.2 INNER RH

main53233-WC010iK10T,12N202404

53234DBRACKET, HEADLAMP, INNER LH

main53234-WC009iK10T,12N202404

53234EBRACKET, HEADLAMP, NO.2 INNER LH

main53234-WC010iK10T,12N202404

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-WC001iK10T,12N202404

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-WC001iK10T,12N202404

5503

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-WC008

main57016-WC009

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-WC010iK10T,12N202404

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-WC004iK10T,12N202404

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-WC012

main57101-WC013

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-WC013iK10T,12N202404

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-WC001iK10T,12N202404

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-WC001iK10T,12N202404

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-WC001iK10T,12N202404

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-WC005iK10T,12N202404

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-WC001iK10T,12N202404

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-WC001iK10T,12N202404

57119DPLATE, FRONT SIDE MEMBER, FRONT RH

main57119-WC005iK10T,12N202404

57129CPLATE, FRONT SIDE MEMBER, FRONT LH

main57129-WC005iK10T,12N202404

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-WC001iK10T,12N202404

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-WC001iK10T,12N202404

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-WC001iK10T,12N202404

57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-WC001iK10T,12N202404

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-WC001iK10T,12N202404

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-WC002iK10T,12N202404

57197BOX, TORQUE, FRONT RH

main57077-WC001

main57197-WC001

57198BOX, TORQUE, FRONT LH

main57198-WC001iK10T,12N202404

5801

35 parts on this diagram · 3 diagrams in section
