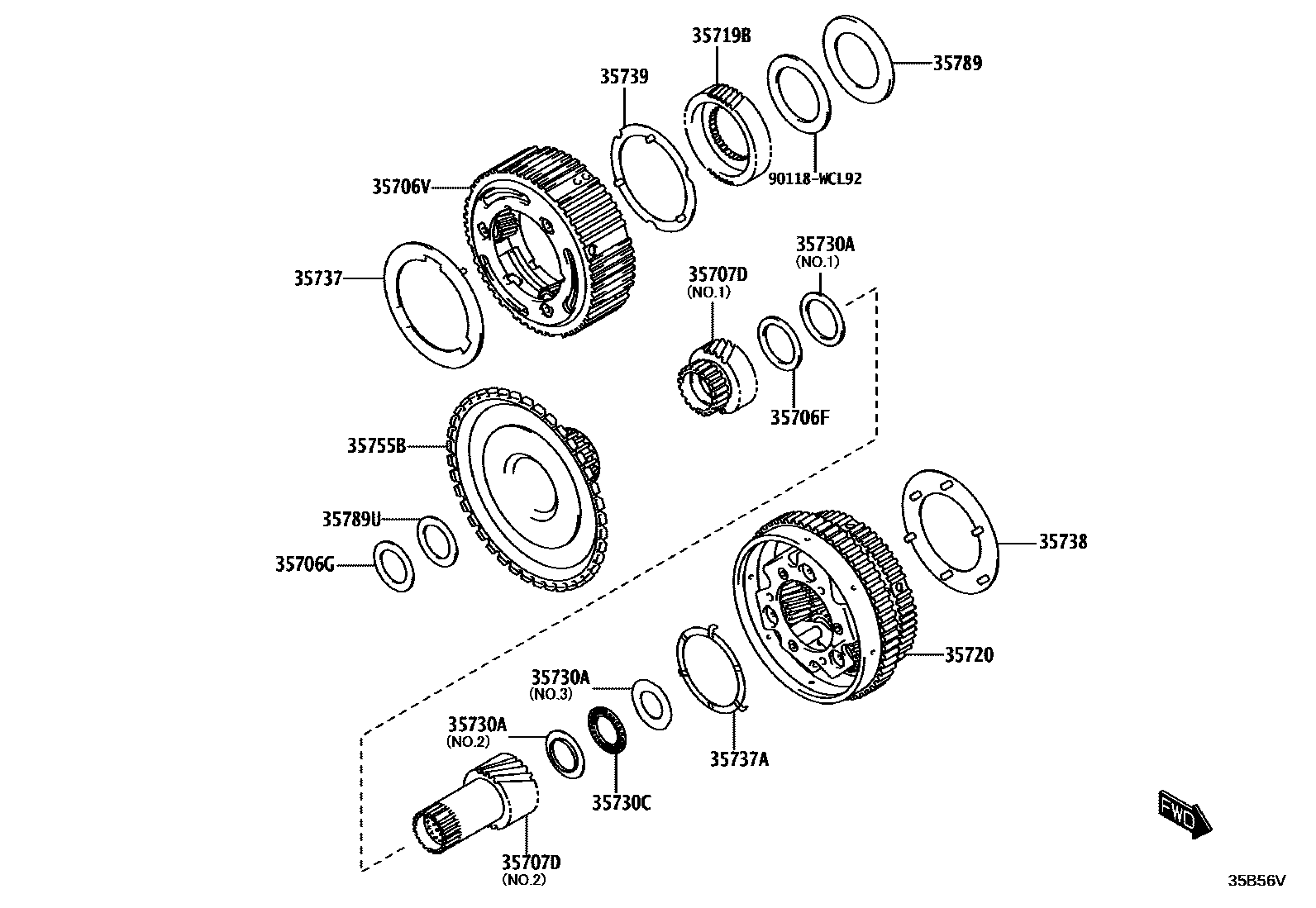

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)
POS.21
35706GBEARING, THRUST (FOR SUN GEAR REAR)
POS.21
35706VGEAR SUB ASSY, PLANETARY SUN
POS.21
35707DGEAR SUB-ASSY, REAR PLANETARY SUN
POS.2,NO.1
POS.1,NO.2
35719BGEAR, PLANETARY SUN
POS.21
35720GEAR ASSY, FRONT PLANETARY
POS.21
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
POS.2,NO.1
POS.1,NO.2
POS.1,NO.3
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
POS.21
35737WASHER, PLANETARY CARRIER THRUST
POS.21
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
POS.21
35738WASHER, PLANETARY CARRIER THRUST, NO.2
POS.21
35739WASHER, PLANETARY CARRIER THRUST, NO.3
POS.21
35755BDRUM, SUN GEAR INPUT
POS.21
35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
POS.21
35789URACE, THRUST BEARING
POS.21
90118WCL92
main90118-WCL92
16 parts on this diagram · 2 diagrams in section
