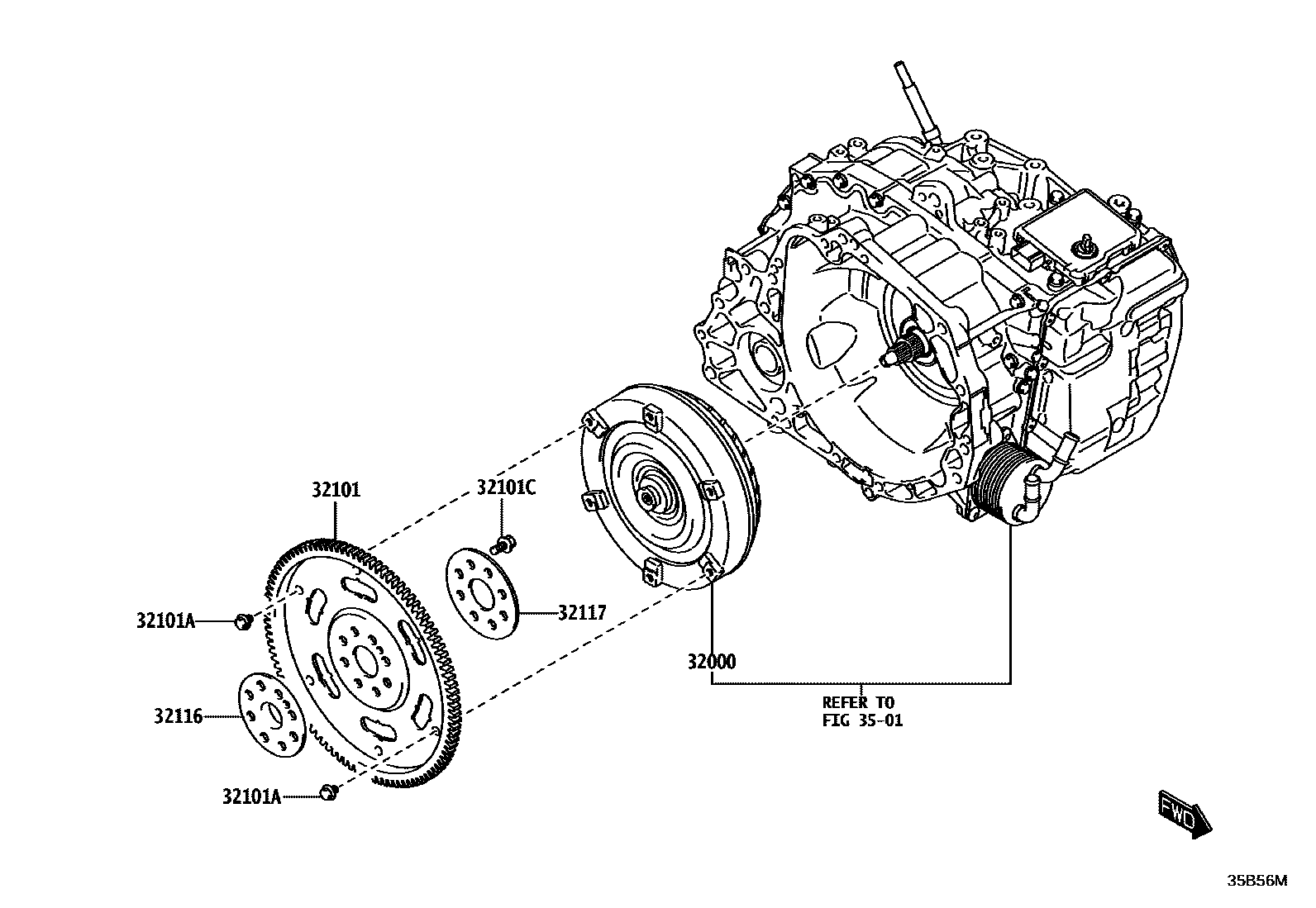

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
POS.1
POS.2
POS.21
POS.22
32101GEAR SUB-ASSY, DRIVE PLATE & RING
POS.1
POS.2
POS.21
POS.22
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX9.5-7.0,POS.1
*8-1.25PX9.5-7.0,POS.2
*8-1.25PX9.5-7.0,POS.21
*8-1.25PX9.5-7.0,POS.22
*8-1.25PX9.5-7.5,POS.1
*8-1.25PX9.5-7.5,POS.2
*8-1.25PX9.5-7.5,POS.21
*8-1.25PX9.5-7.5,POS.22
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
POS.1
POS.2
POS.21
POS.22
32116SPACER, DRIVE PLATE, FRONT
POS.1
POS.2
POS.21
POS.22
32117SPACER, DRIVE PLATE, REAR
POS.1
POS.2
POS.21
POS.22
3501
7 parts on this diagram · 2 diagrams in section
