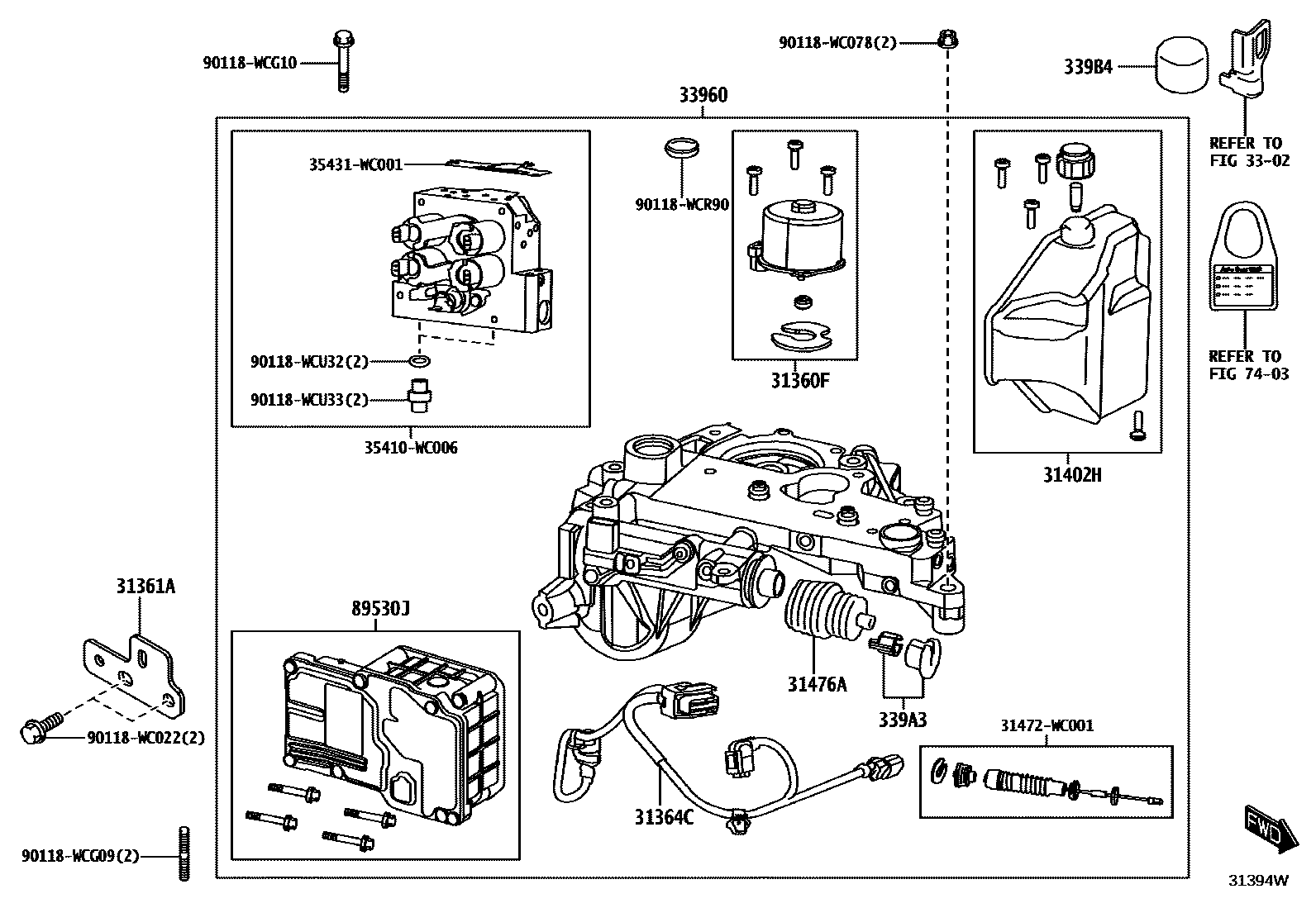

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

31360FPUMP ASSY, SEQUENTIAL TRANSMISSION

main31360-WC001iK12N..AMT..S202404

POS.15

31361ABRACKET, SEQUENTIAL TRANSMISSION PUMP

main31361-WC001iK12N..AMT..S202404

POS.15

31364CWIRE, SEQUENTIAL TRANSMISSION

main82125-WC003iK12N..AMT..S202404

POS.15

31402HTANK SET, OIL

main31402-WC001iK12N..AMT..S202404

POS.15

31476ABOOT, CLUTCH ACTUATOR

main31476-WC001iK12N..AMT..S202404

POS.15

3302

33960ACTUATOR ASSY, SEQUENTIAL TRANSMISSION

main33960-WC008iK12N..AMT..S202404

POS.15

339A3HOLDER, TRANSMISSION ACTUATOR

main3136H-WC001iK12N..AMT..S202404

POS.15

339B4COVER, TRANS ACTUATOR CYLINDER

main90118-WCG88×2iK12N..AMT..S202404

POS.15

7403

89530JCONTROLLER SET, AMT

main89530-WC005iK12N..AMT..S202404

POS.15

31472WC001PISTON, RELEASE CYLINDER

main31472-WC001

35410WC006BODY ASSY, TRANSMISSION VALVE

main35410-WC006

35431WC001GASKET,VALVE BODY

main35431-WC001

90118WC022

main90118-WC022

90118WC078

main90118-WC078

90118WCG09

main90118-WCG09

90118WCG10

main90118-WCG10

90118WCR90

main90118-WCR90

90118WCU32

main90118-WCU32

90118WCU33

main90118-WCU33

21 parts on this diagram · 1 diagram in section
