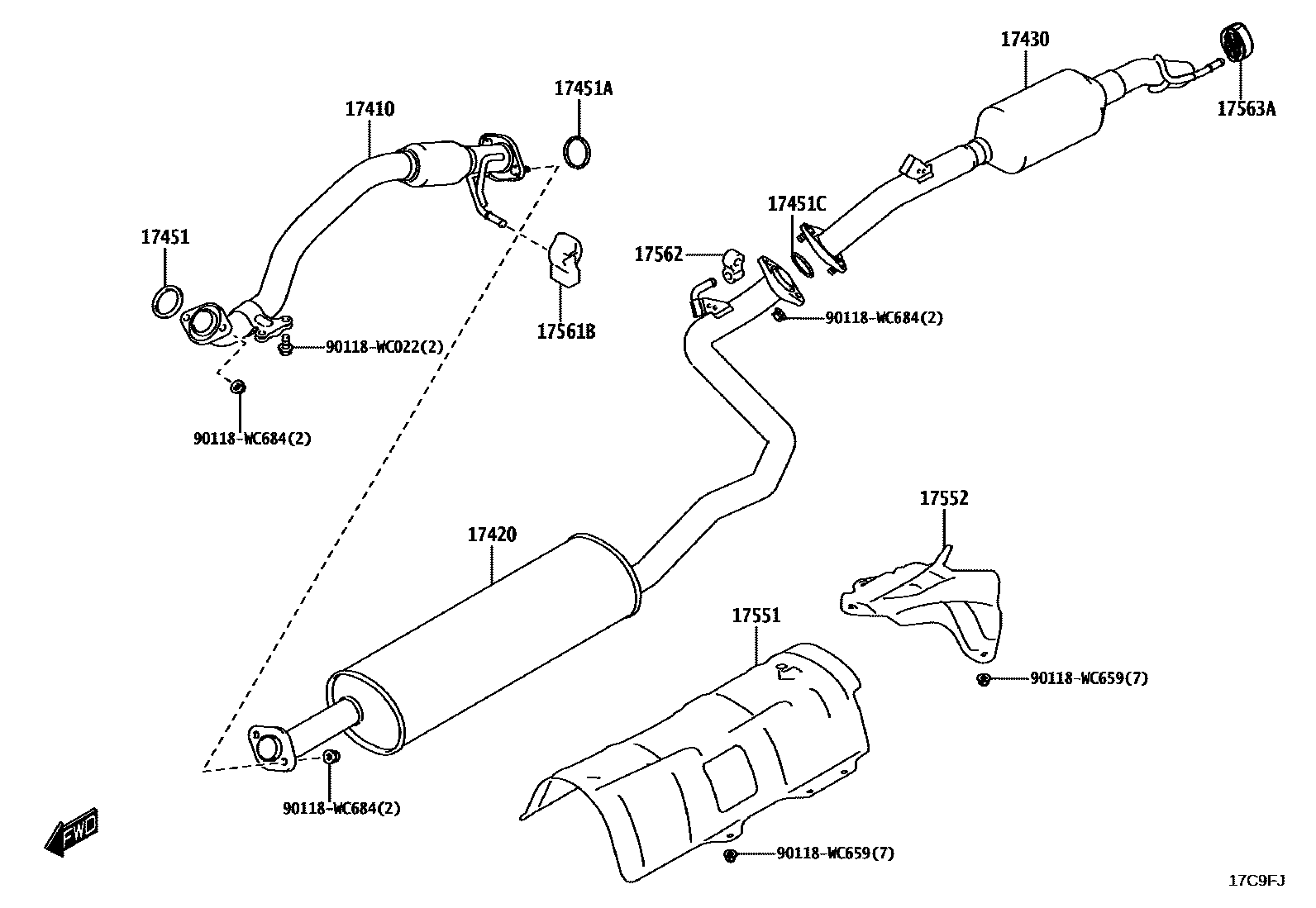

EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
main17420-WC010
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17552INSULATOR, EXHAUST PIPE HEAT, NO.2
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
90118WC022
main90118-WC022
90118WC659
main90118-WC659
90118WC684
main90118-WC684
15 parts on this diagram · 2 diagrams in section
