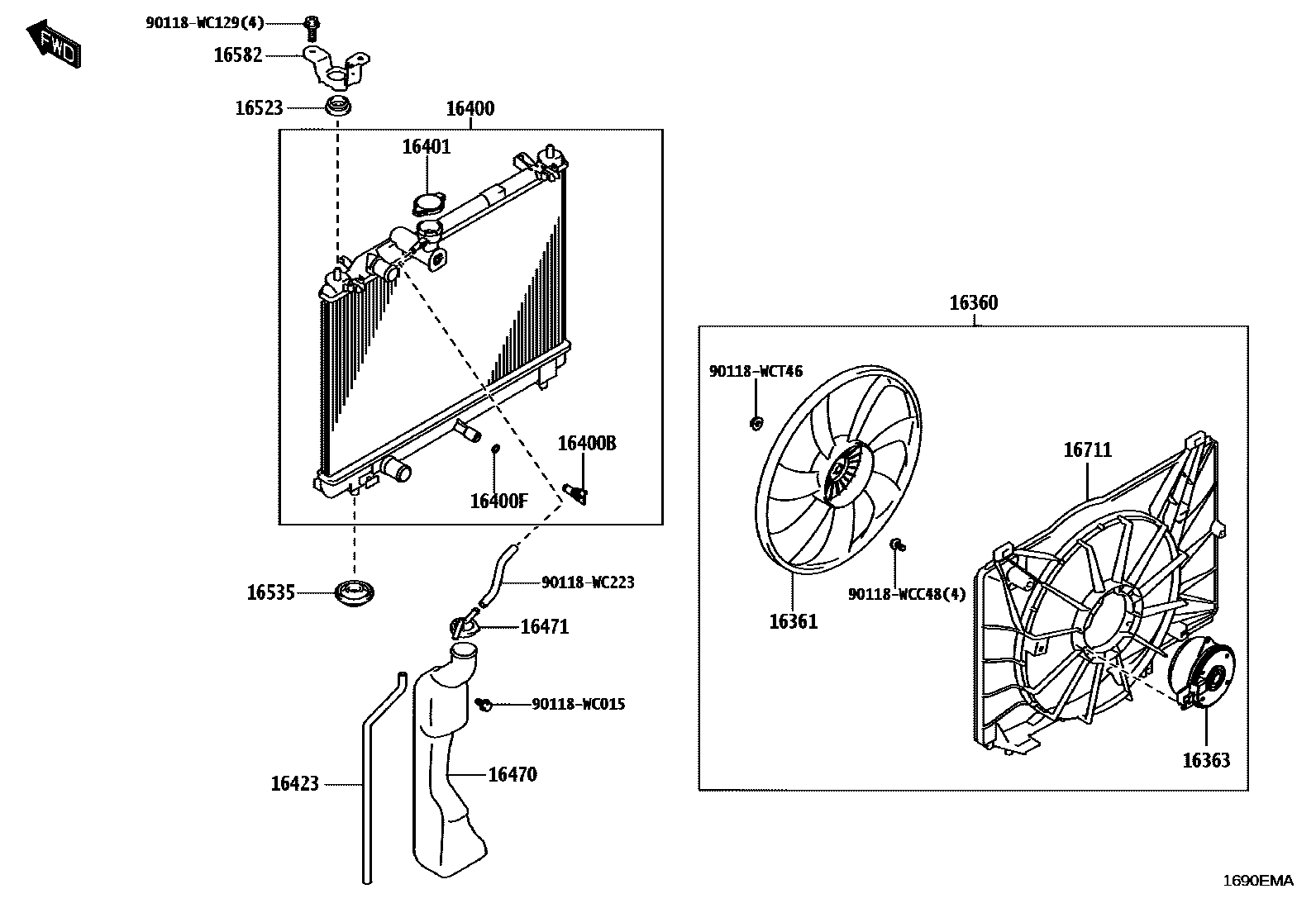

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16360BLOWER ASSY, W/SHROUD

main16360-WC011iK12N..K12N..S..CNG202404

POS.18

main16360-WC012iK10T..K10T..6FC..V202404

POS.22

16361FAN

main16361-WC006iK1#..K10T,12N202404

16363MOTOR, COOLING FAN

main16363-WC003iK1#..K10T,12N202404

16400RADIATOR ASSY

main16400-WC001iK12N..K12N..S..CNG202404

POS.18

main16400-WC017iK10T..K10T..6FC..V202404

POS.22

16400BPLUG, RADIATOR DRAIN COCK

main16417-WC001iK1#..K10T,12N202404

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-WC001iK1#..K10T,12N202404

16401CAP SUB-ASSY, RADIATOR

main16401-WC001iK1#..K10T,12N202404

16423HOSE, RADIATOR TANK

main16377-WC001iK1#..K10T,12N202404

16470TANK ASSY, RADIATOR RESERVE

main16470-WC001iK1#..K10T,12N202404

16471CAP SUB-ASSY, RESERVE TANK

main16471-WC001iK1#..K10T,12N202404

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-WC001×2iK1#..K10T,12N202404

16535SUPPORT, RADIATOR, LOWER

main90118-WC349×2iK12N..K12N..S..CNG202404

POS.18

main90118-WC350×2iK10T..K10T..6FC..V202404

POS.22

16582BRACKET, RADIATOR, NO.1

main16582-WC001×2iK1#..K10T,12N202404

16711SHROUD, FAN

main16711-WC007iK12N..K12N..S..CNG202404

POS.18

main16711-WC008iK10T..K10T..6FC..V202404

POS.22

90118WC015

main90118-WC015

90118WC129

main90118-WC129

90118WC223

main90118-WC223

90118WCC48

main90118-WCC48

90118WCT46

main90118-WCT46

19 parts on this diagram · 4 diagrams in section
