WIRING & CLAMP

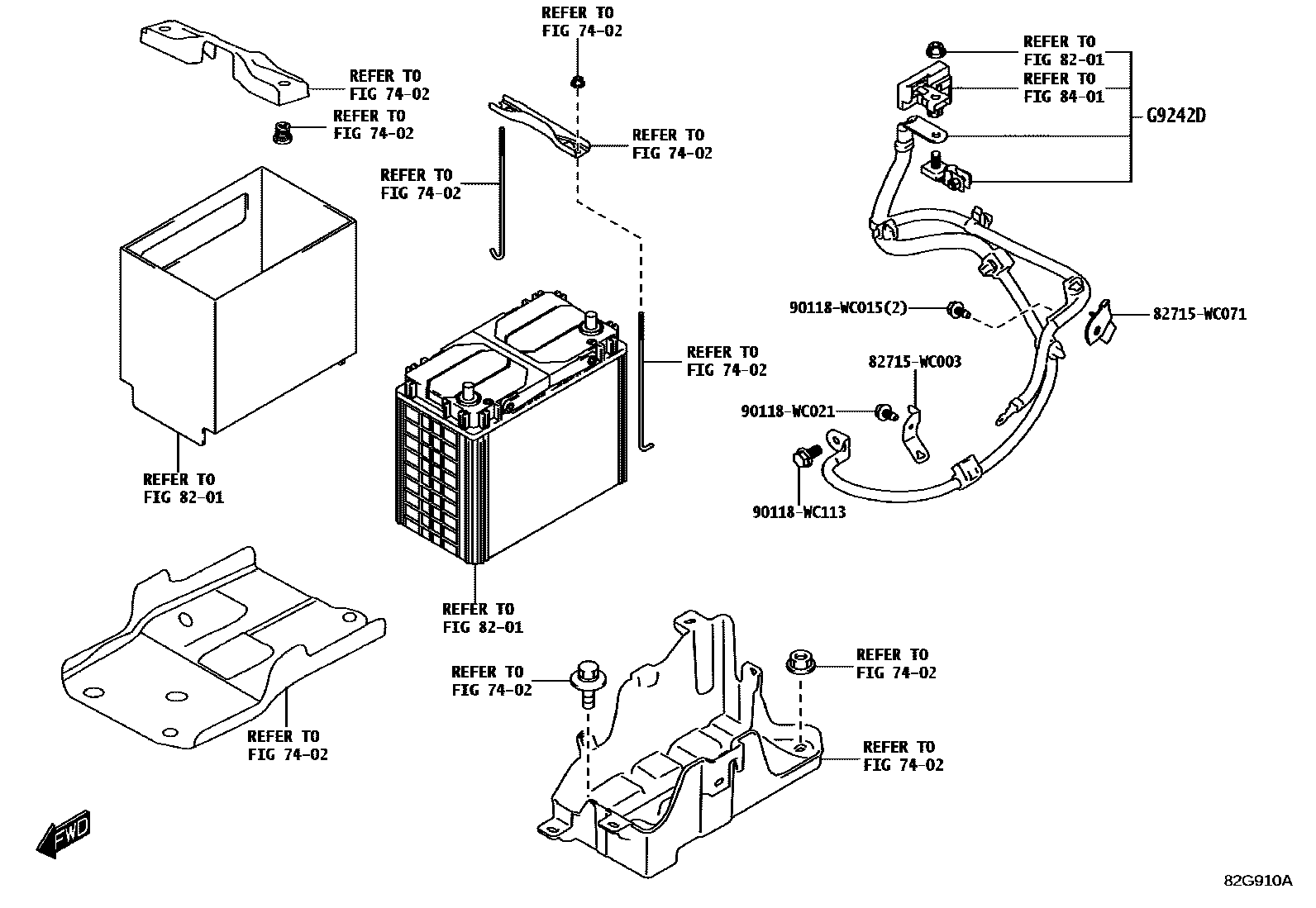

Parts diagram

7402

8201

8401

G9242DCABLE, MAIN BATTERY, NO.1

82715WC003BRACKET,WIRING HARNESS CLAMP

main82715-WC003

82715WC071BRACKET,WIRING HARNESS CLAMP

main82715-WC071

90118WC015

main90118-WC015

90118WC021

main90118-WC021

90118WC113

main90118-WC113

9 parts on this diagram · 2 diagrams in section
