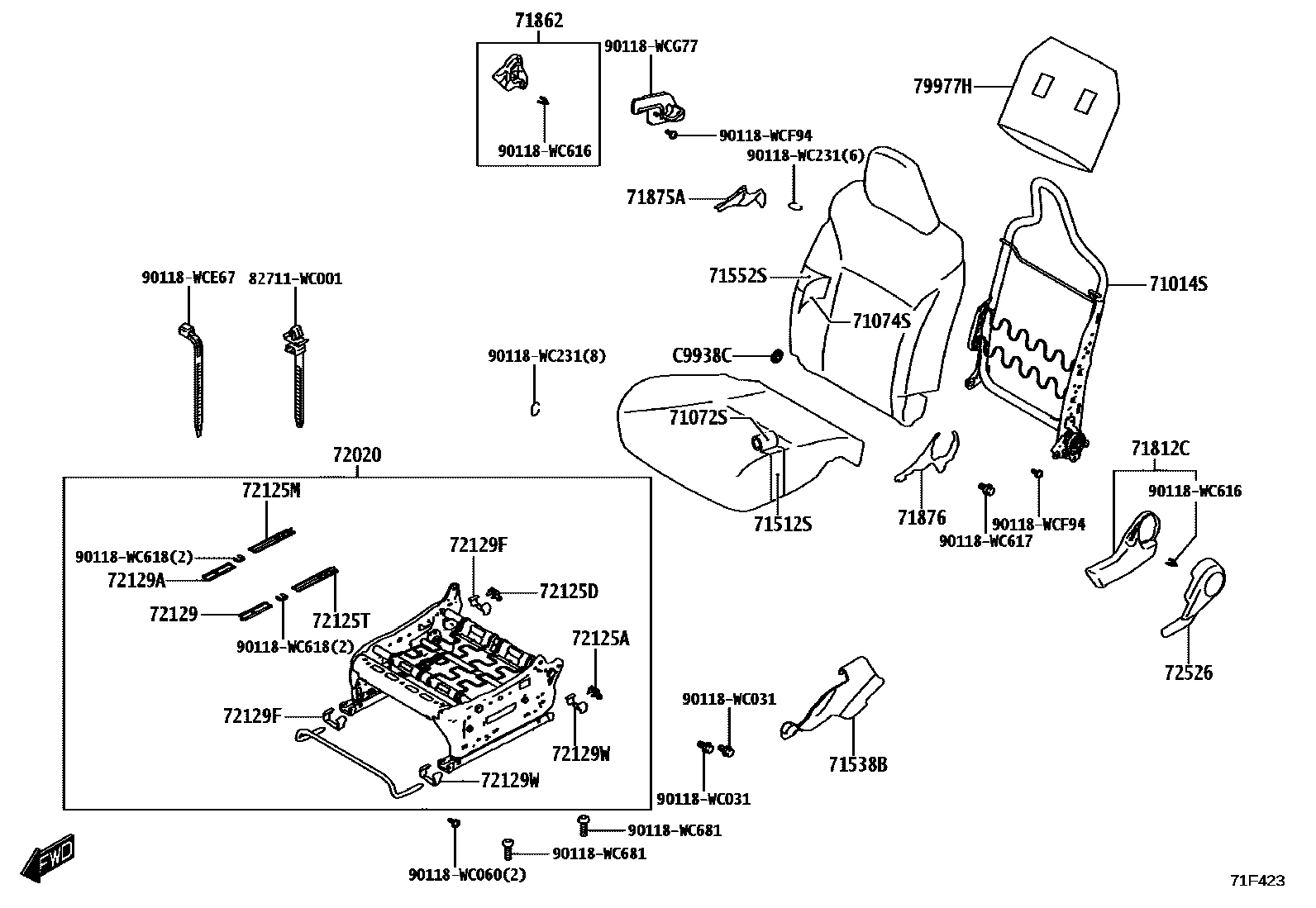

FRONT SEAT & SEAT TRACK

0001 1LH SEAT 0002 1LH SEAT, W(SRS SIDE AIR BAG) 0003 1LH SEAT 0004 1LH SEAT, W(SRS SIDE AIR BAG) 0005 1RH SEAT 0006 1RH SEAT, W(SRS SIDE AIR BAG) 0007 1RH SEAT 0008 1RH SEAT, W(SRS SIDE AIR BAG)

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

71812CCOVER, RECLINING ADJUSTER, LH

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-WC001

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-WC001

main71875-WC002

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-WC009

main72020-WC010

72125ACOVER, SEAT TRACK, UPPER REAR

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

72125MCOVER, SEAT TRACK, UPPER NO.3

72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-WC001

main72129-WC002

main72129-WC007

72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129FPROTECTOR, SEAT TRACK LOWER RAIL, NO.5

72129WPROTECTOR, SEAT TRACK LOWER RAIL, LH

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-WC001

79977HFELT, FRONT SEATBACK, LH

C9938BUSH

main90118-WC621

C9938CBUSH

82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-WC001

90118WC031

main90118-WC031

90118WC060

main90118-WC060

90118WC231

main90118-WC231

90118WC616

main90118-WC616

90118WC617

main90118-WC617

90118WC618

main90118-WC618

90118WC681

main90118-WC681

90118WCE67

main90118-WCE67

90118WCF94

main90118-WCF94

90118WCG77

main90118-WCG77

34 parts on this diagram · 8 diagrams in section
