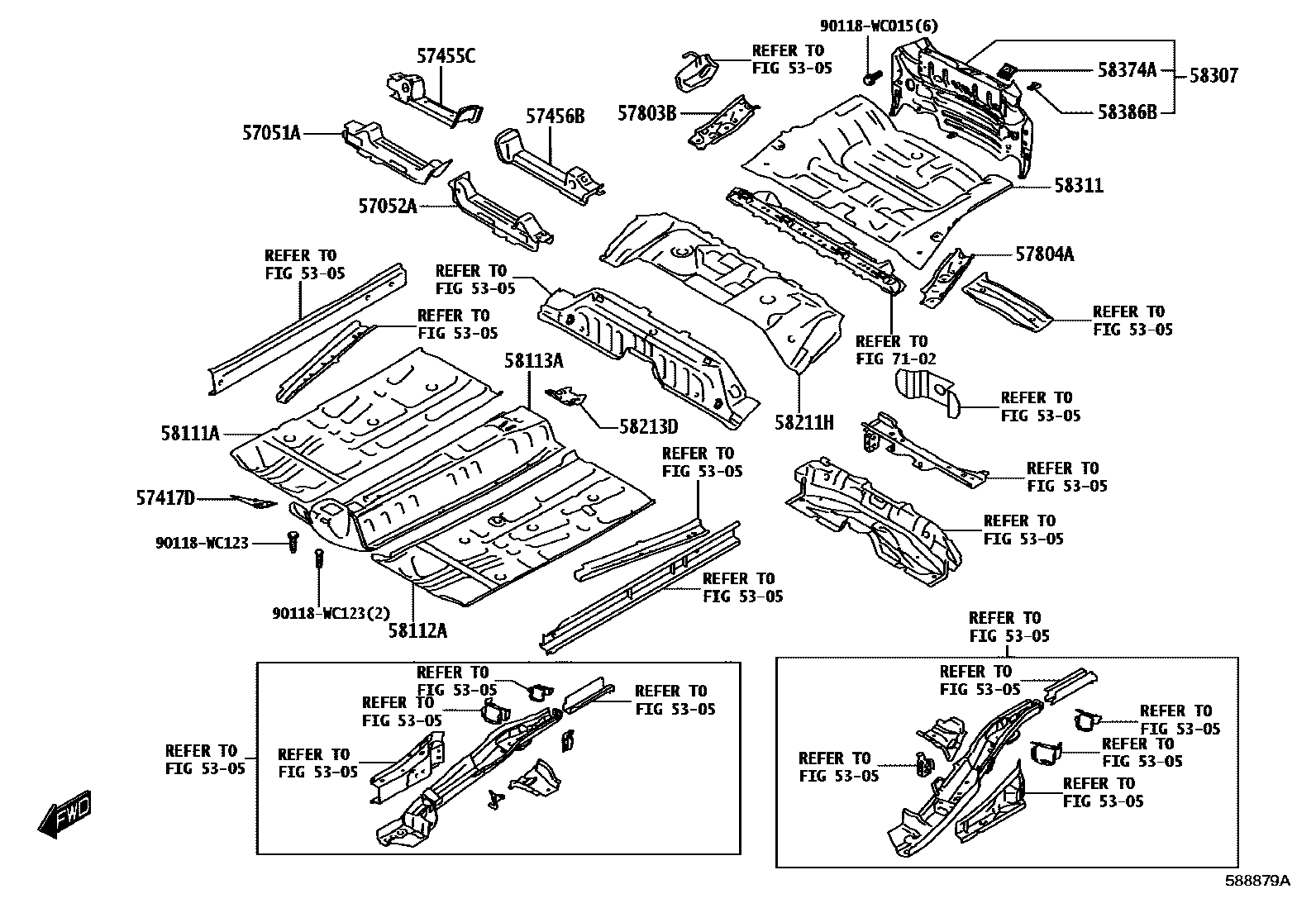

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57417DREINFORCEMENT, FLOOR SIDE, INNER RH

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

58111APAN, FRONT FLOOR, RH

58112APANEL, FRONT FLOOR, LH

58113APANEL, FRONT FLOOR, CENTER

58211HPAN, CENTER FLOOR

58213DREINFORCEMENT, CENTER FLOOR PANEL

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-WC012

58311PAN, REAR FLOOR

main58311-WC011

main58311-WC012

58374AREINFORCEMENT, BACK DOOR LOCK STRIKER

58386BBRACKET, REAR BUMPER COVER, NO.2

7102

90118WC015

main90118-WC015

90118WC123

main90118-WC123

20 parts on this diagram · 2 diagrams in section
