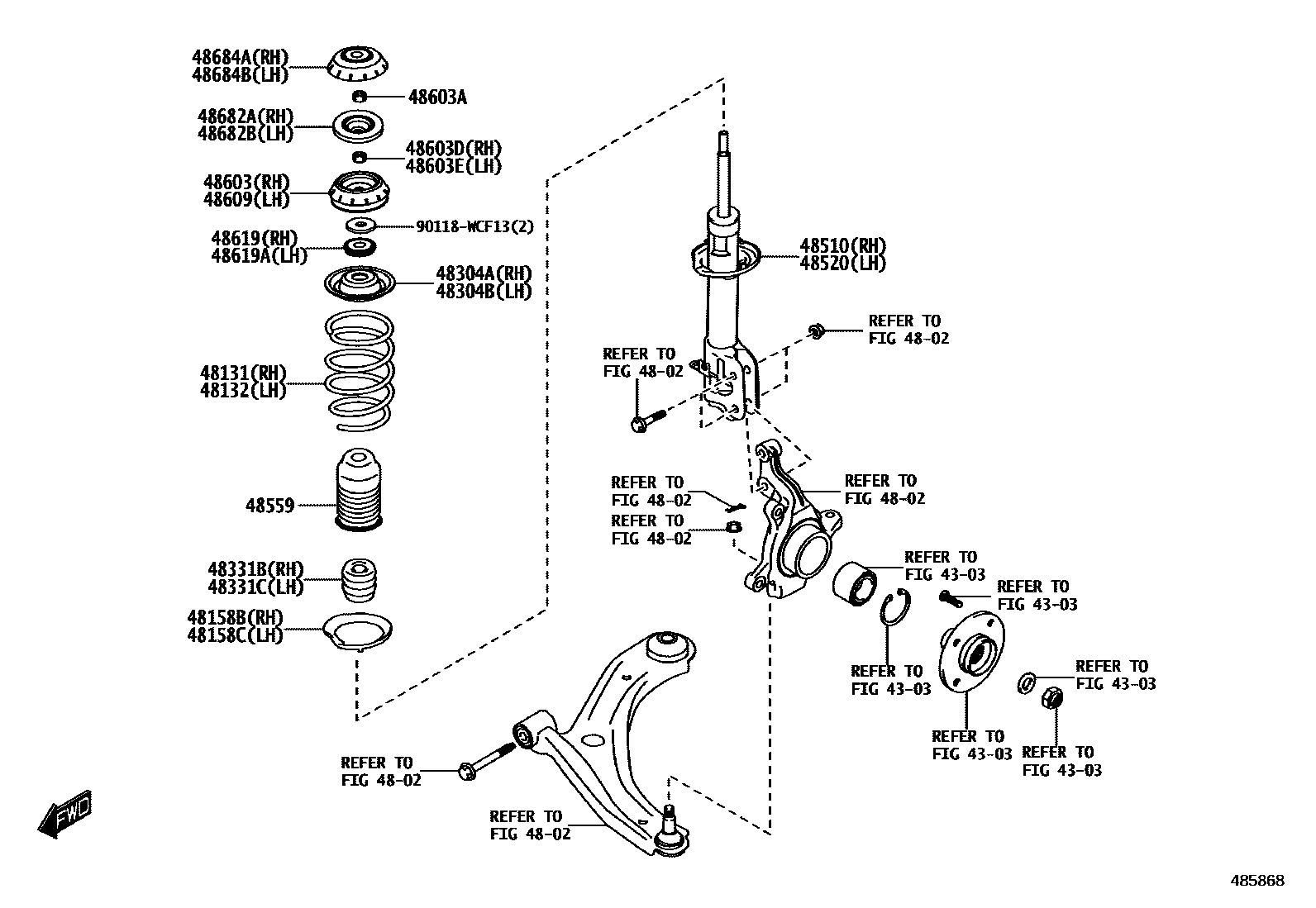

FRONT SPRING & SHOCK ABSORBER

4303

4802

48131SPRING, FRONT COIL, RH

main48131-WC018

48132SPRING, FRONT COIL, LH

main48131-WC018

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

48304ASEAT SUB-ASSY, BUMPER, RH

48304BSEAT SUB-ASSY, BUMPER, LH

48331BBUMPER, FRONT SPRING, RH

48331CBUMPER, FRONT SPRING, LH

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-WC012

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-WC012

48559COVER, SHOCK ABSORBER, DUST

main48559-WC007

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-WC007

main90118-WC075

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-WC007

48619BEARING, STRUT MOUNTING, RH

main48619-WC003

48619ABEARING, STRUT MOUNTING, LH

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

90118WCF13

main90118-WCF13

25 parts on this diagram · 1 diagram in section
