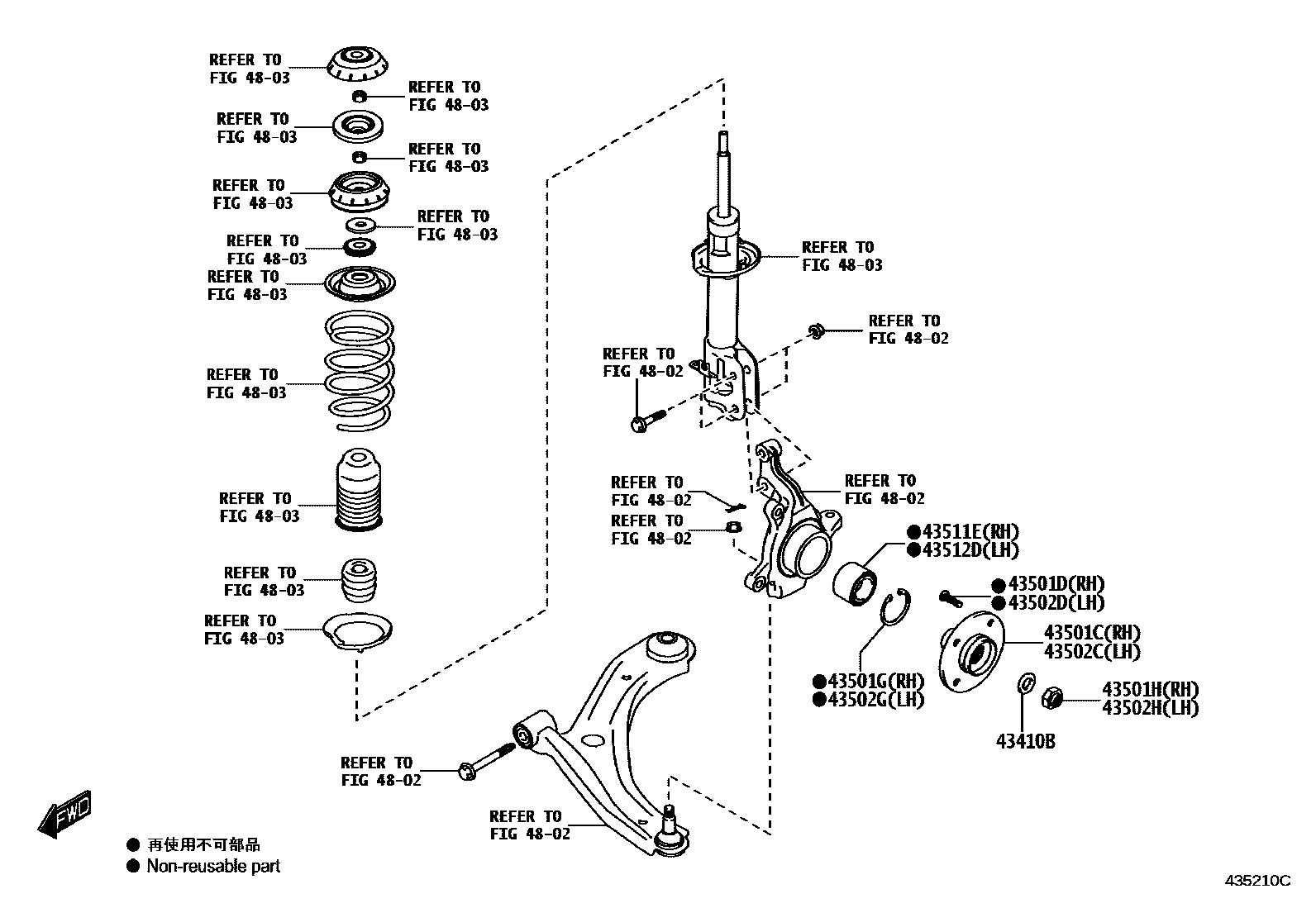

FRONT AXLE HUB

0001 1 0002 1

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

43501CHUB SUB-ASSY, FRONT AXLE, RH

43501DBOLT, HUB (FOR FRONT AXLE RH)

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

43501HNUT (FOR FRONT AXLE SHAFT RH)

43502CHUB SUB-ASSY, FRONT AXLE, LH

43502DBOLT, HUB (FOR FRONT AXLE LH)

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

43502HNUT (FOR FRONT AXLE SHAFT LH)

43511EBEARING (FOR FRONT AXLE HUB RH)

43512DISC, FRONT

main43512-WC010

main90118-WCD58

main90118-WCS23

main90118-WCU51

43512DBEARING (FOR FRONT AXLE HUB LH)

4802

4803

14 parts on this diagram · 2 diagrams in section
