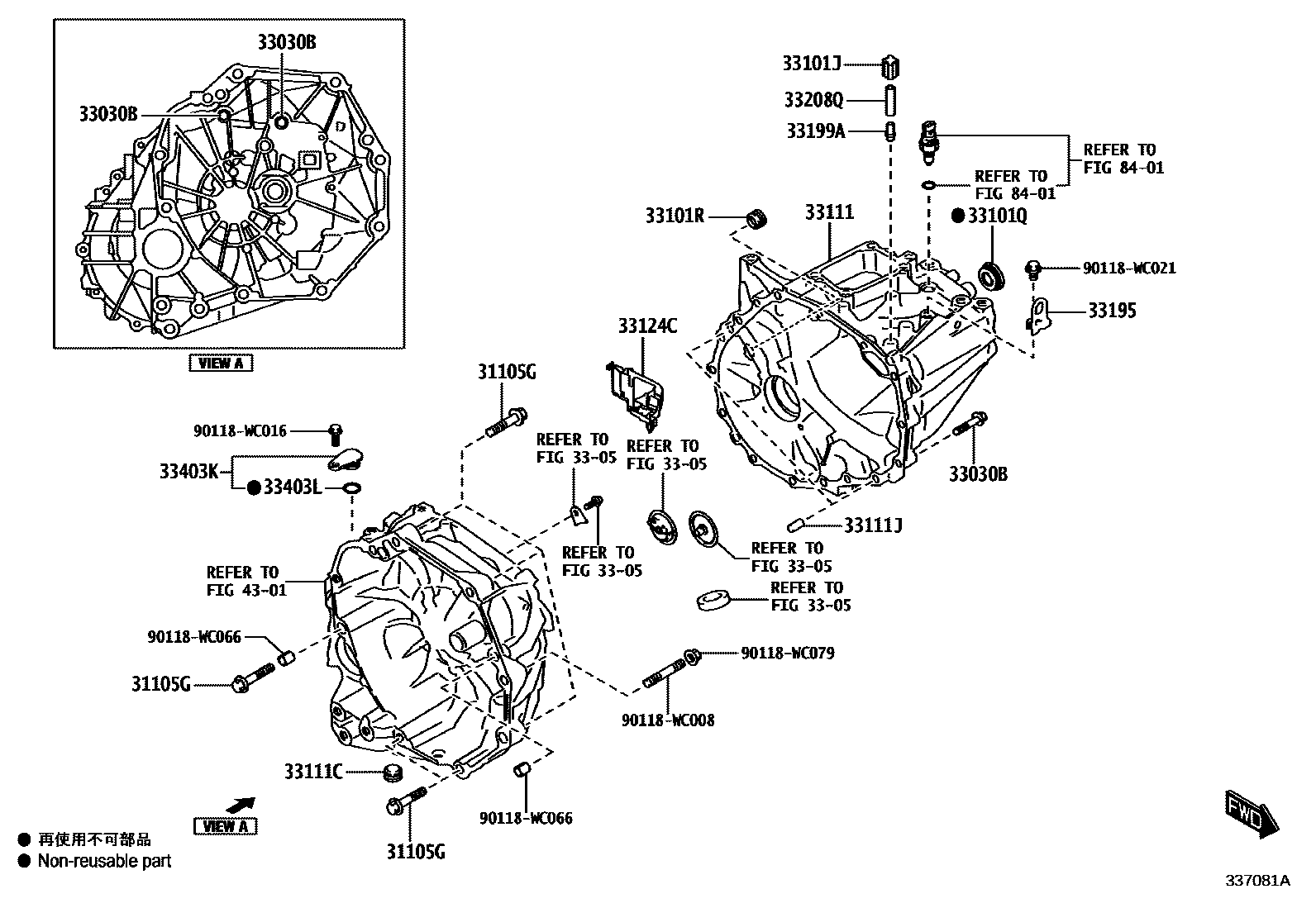

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
3305
33101JPLUG, BREATHER
33101QPLUG, NO.1(FOR TRANSMISSION CASE)
33101RPLUG, NO.2(FOR TRANSMISSION CASE)
33111CASE, MANUAL TRANSMISSION
main33111-WC017
main33111-WC018
main90118-WC066
main90118-WC303
main90118-WCU53
33111CPLUG(FOR TRANSMISSION CASE)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33199APROTECTOR, BREATHER
33208QHOSE, BREATHER
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
8401
90118WC008
main90118-WC008
90118WC016
main90118-WC016
90118WC021
main90118-WC021
90118WC066
main90118-WC066
90118WC079
main90118-WC079
22 parts on this diagram · 4 diagrams in section
