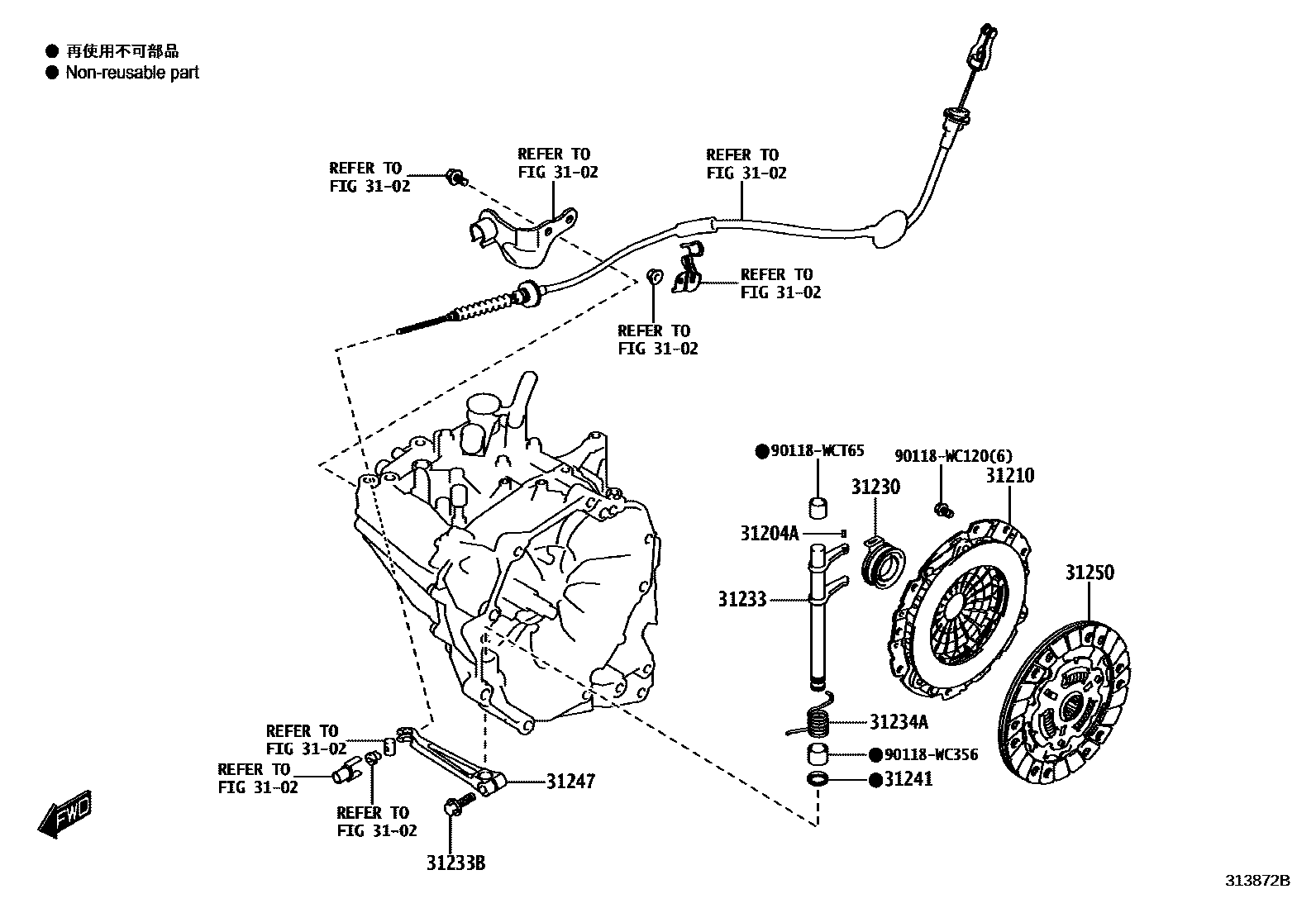

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

3102

31204APIN(FOR CLUTCH RELEASE FORK)

31210COVER ASSY, CLUTCH

main31210-WC008

main31210-WC009

31230BEARING ASSY, CLUTCH RELEASE

main31230-WC002

31233FORK, CLUTCH RELEASE

main31247-WC001

main31247-WC002

main90118-WC025

31233BBOLT(FOR RELEASE FORK & RELEASE LEVER SETTING)

31234ASPRING, RELEASE FORK SUPPORT

31241SEAL, CLUTCH RELEASE FORK DUST

main90118-WC354

31247LEVER, CLUTCH RELEASE FORK

main33229-WC001

main33229-WC003

31250DISC ASSY, CLUTCH

main31250-WC008

main31250-WC009

90118WC120

main90118-WC120

90118WC356

main90118-WC356

90118WCT65

main90118-WCT65

13 parts on this diagram · 3 diagrams in section
