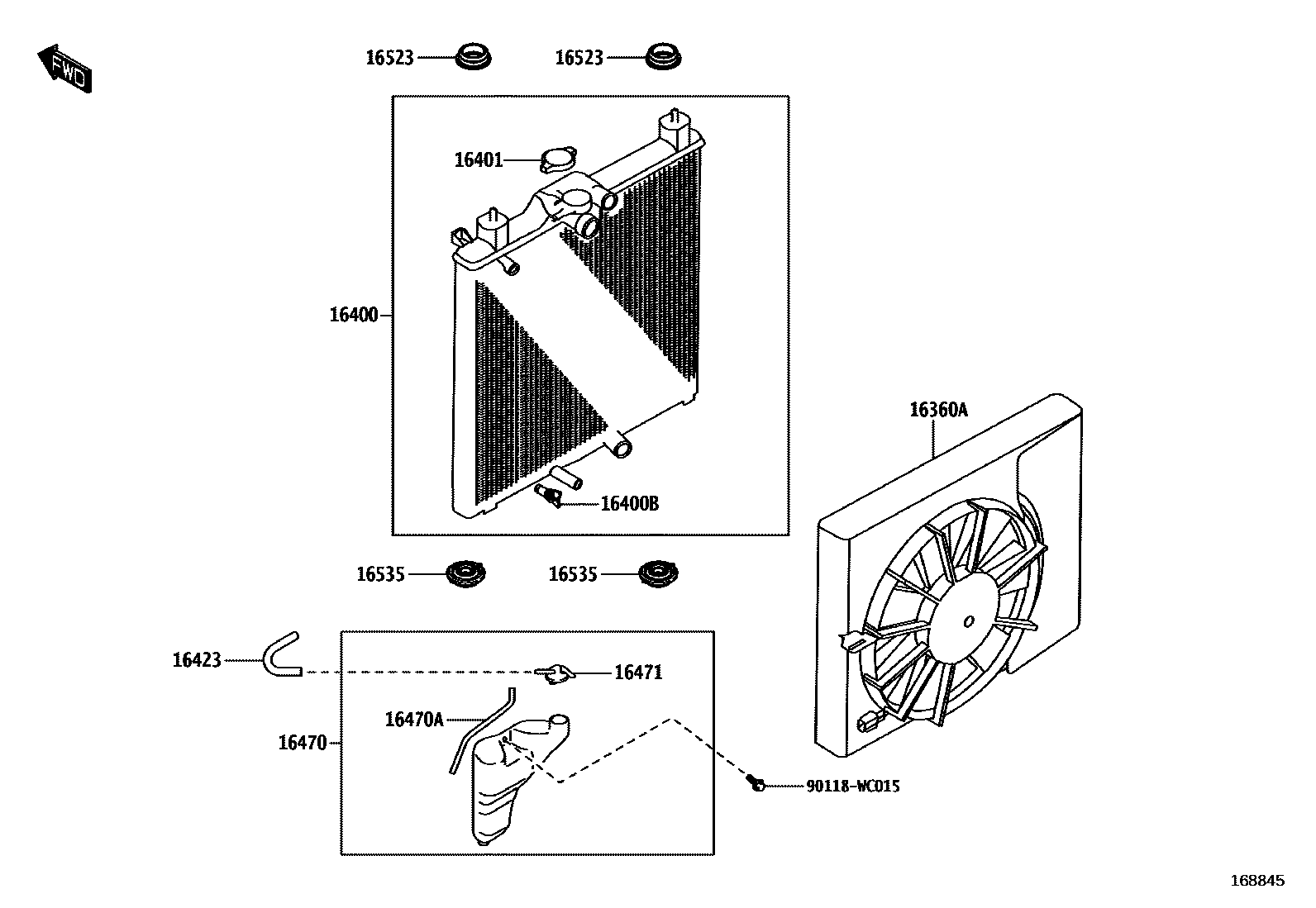

RADIATOR & WATER OUTLET

0001 1 0002 1

16360AFAN ASSY, W/MOTOR

16400RADIATOR ASSY

main16417-WC005

main16400-WC015

16400BPLUG, RADIATOR DRAIN COCK

16401CAP SUB-ASSY, RADIATOR

main16401-WC004

16423HOSE, RADIATOR TANK

main16377-WC005

16470TANK ASSY, RADIATOR RESERVE

main16470-WC008

main90118-WCR74

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16471CAP SUB-ASSY, RESERVE TANK

main16471-WC001

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-WC005

16535SUPPORT, RADIATOR, LOWER

main90118-WC349

90118WC015

main90118-WC015

11 parts on this diagram · 2 diagrams in section
