MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-WC013iK10C..K10C..AMT..SA202301

POS.44

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-WC014iK10C..K10C..I..SA202301

POS.18

main12306-WC015iK10C..K10C..SUD202301-202310

POS.34

12314BRACKET, ENGINE LATERAL CONTROL ROD

main12313-WC011iK10C..K10C..AMT..SA202301

POS.44

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-WC002iK10C..K10C..AMT..SA202301

POS.44

12364AROD, ENGINE LATERAL CONTROL

main12363-WC012iK10C..K10C..I..SA202301

POS.18

main12363-WC013iK10C..K10C..SUD202301-202310

POS.34

90118WC033

main90118-WC033

90118WC044

main90118-WC044

90118WC079

main90118-WC079

90118WC098

main90118-WC098

90118WC105

main90118-WC105

90118WCC62

main90118-WCC62

90118WCC63

main90118-WCC63

90118WCD14

main90118-WCD14

90118WCR68

main90118-WCR68

90118WCT45

main90118-WCT45

90118WCT50

main90118-WCT50

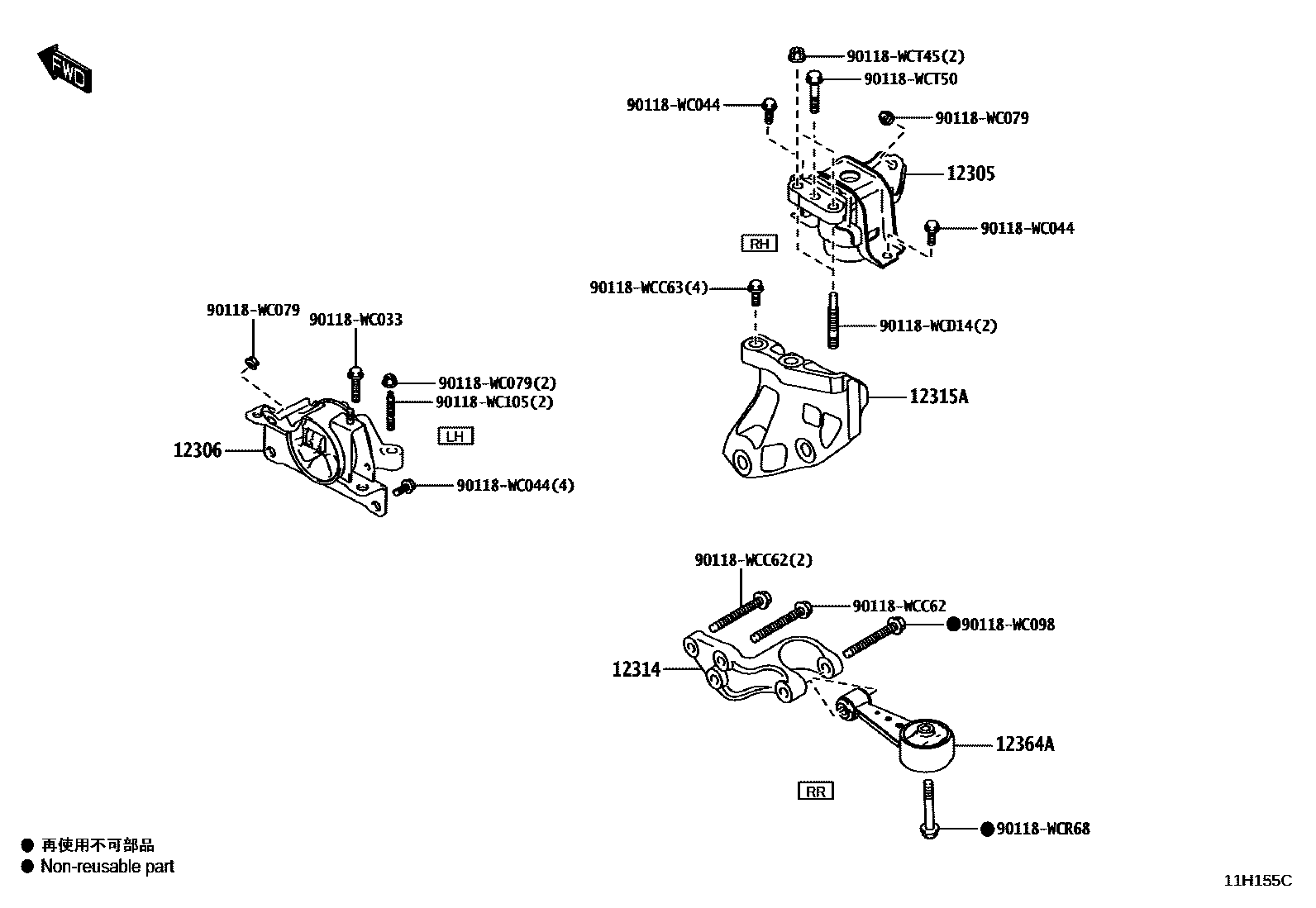

16 parts on this diagram · 1 diagram in section
