TIMING GEAR COVER & REAR END PLATE

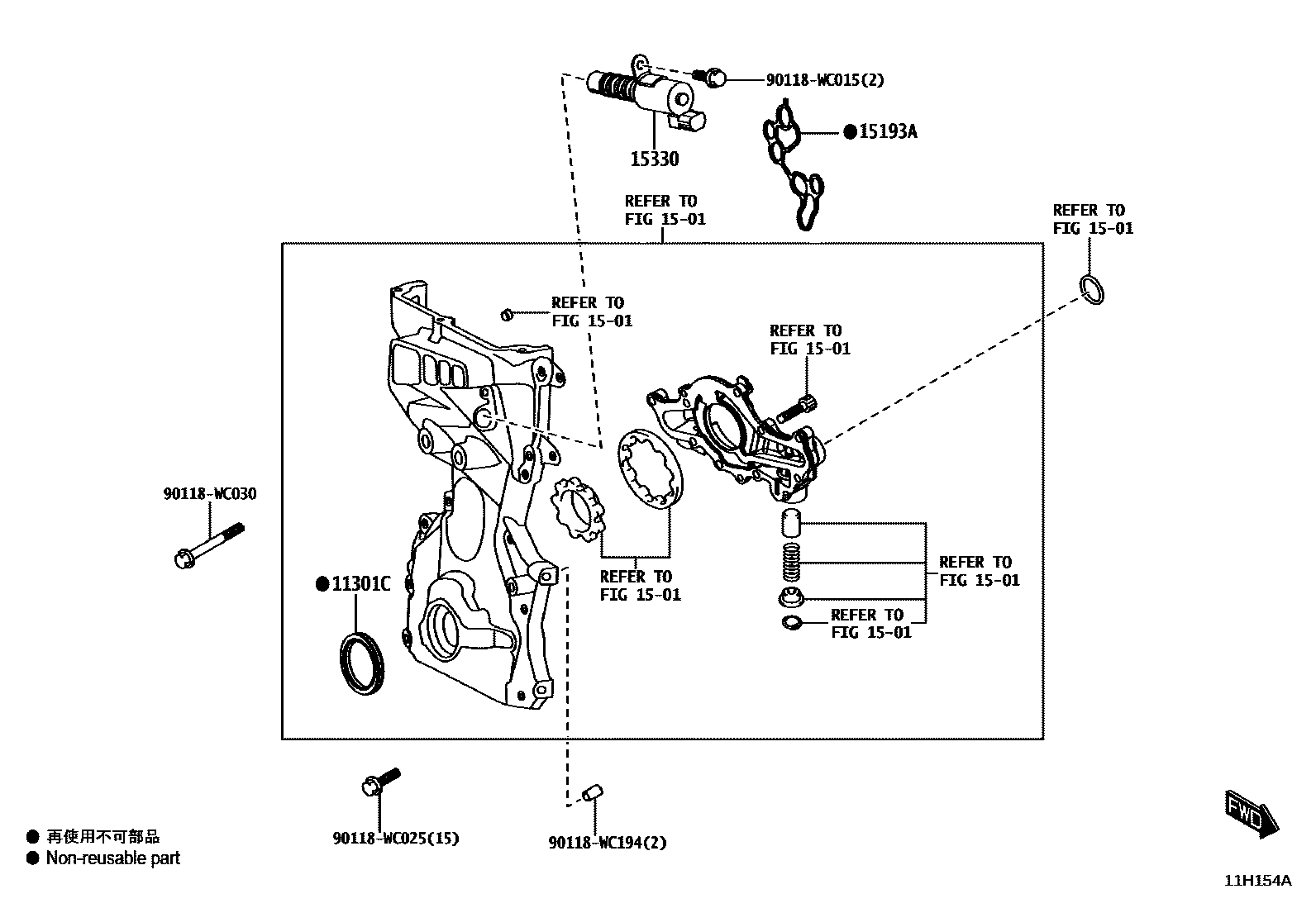

Parts diagram

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

1501

15193AGASKET, OIL PUMP

15330VALVE ASSY, CAM TIMING OIL CONTROL

main15330-WC003

90118WC015

main90118-WC015

90118WC025

main90118-WC025

90118WC030

main90118-WC030

90118WC194

main90118-WC194

8 parts on this diagram · 1 diagram in section
