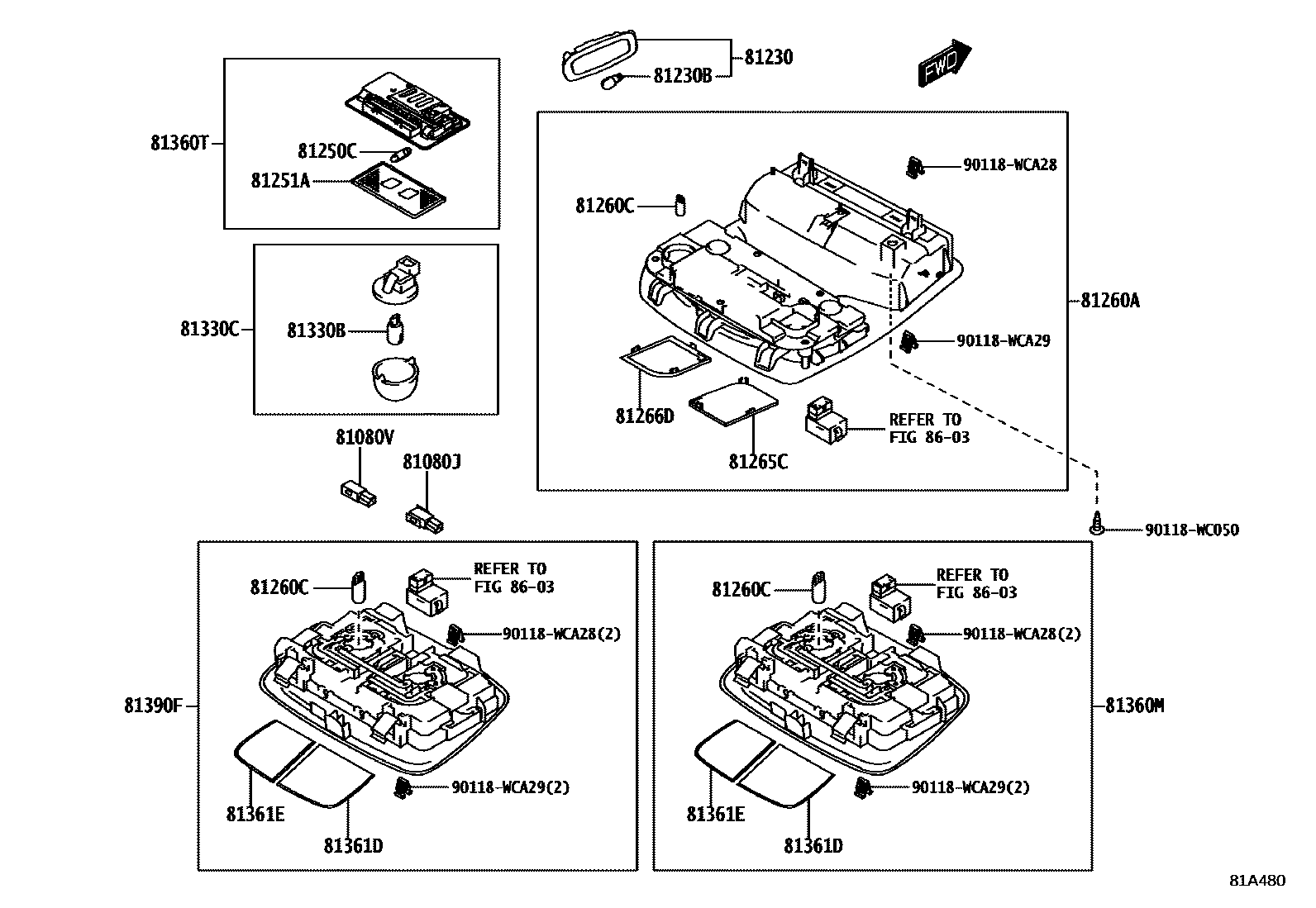

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
POS.22
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
POS.22
81230LAMP ASSY, COURTESY
POS.22
81230BBULB(FOR COURTESY LAMP)
12V 5W,POS.28
81250CBULB, SPOT LAMP
12V 10W,POS.25
81251ALENS, SPOT LAMP
POS.30
81260ALAMP ASSY, MAP
POS.10
POS.19
POS.27
POS.36
81260CBULB(FOR MAP LAMP)
12V 5W,POS.33
12V 8W,POS.29
81265CLENS, MAP LAMP, NO.1
POS.30
81266DLENS, MAP LAMP, NO.2
POS.22
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W,POS.28
81330CLAMP ASSY, LUGGAGE COMPARTMENT
POS.22
81360MLAMP ASSY, SPOT, NO.2 RH
POS.11
POS.24
81360TLAMP ASSY, SPOT
POS.22
81361DLENS, SPOT LAMP
POS.22
81361ELENS, SPOT LAMP, NO.2
POS.22
81390FLAMP ASSY, SPOT, NO.2 LH
POS.18
POS.31
8603
90118WC050
main90118-WC050
90118WCA28
main90118-WCA28
90118WCA29
main90118-WCA29
21 parts on this diagram · 1 diagram in section
