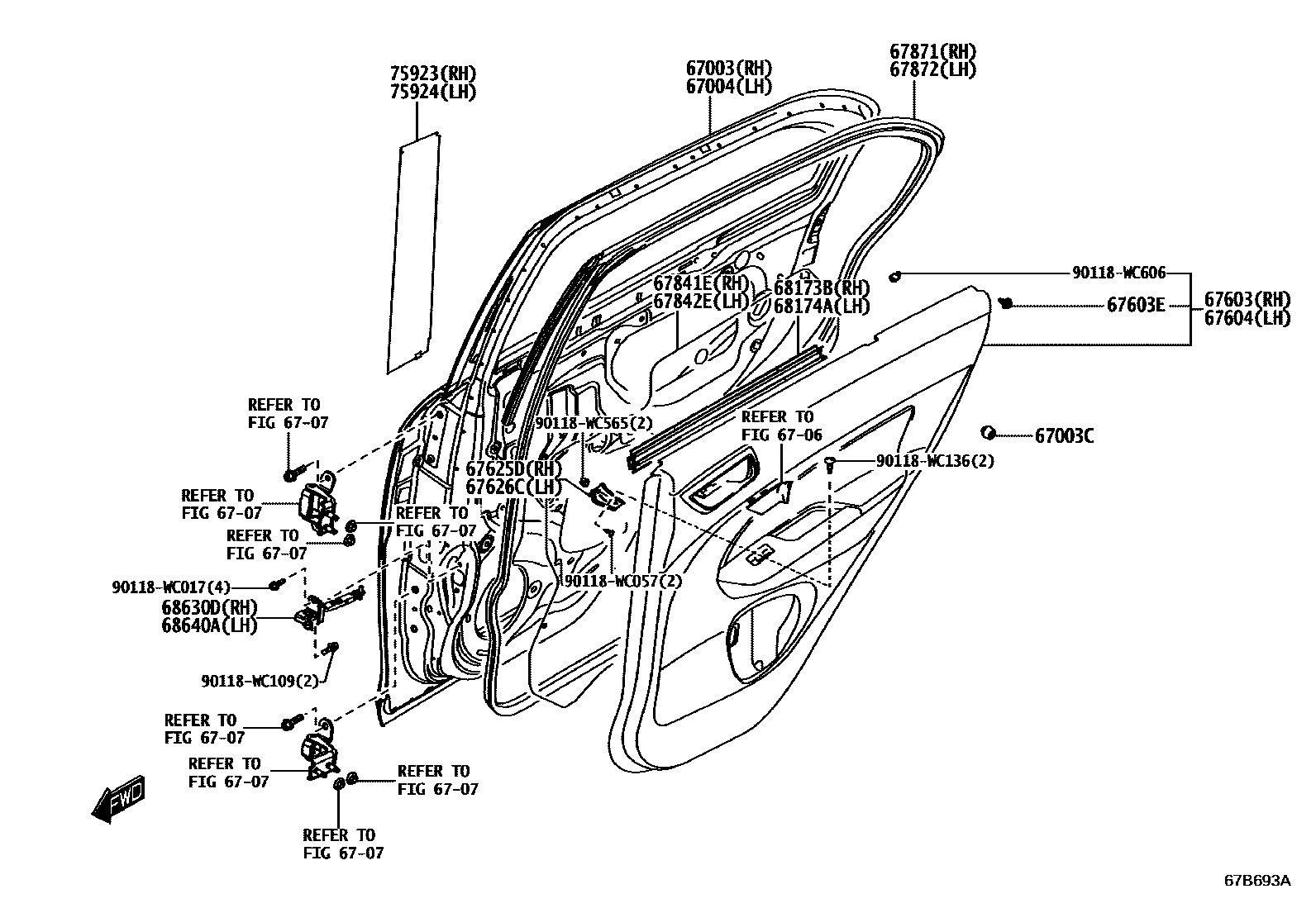

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-WC005

main90118-WC601

67003CCUSHION, REAR DOOR PANEL

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-WC005

6706

6707

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-WC028

main67630-WC029

main90118-WC263

67603ECLIP(FOR REAR DOOR TRIM BOARD)

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-WC028

main67640-WC029

67625DBRACKET, REAR DOOR TRIM

67626CBRACKET, REAR DOOR TRIM, NO.2

67841ECOVER, REAR DOOR SERVICE HOLE, RH

67842ECOVER, REAR DOOR SERVICE HOLE, LH

67871WEATHERSTRIP, REAR DOOR, RH

main67871-WC003

67872WEATHERSTRIP, REAR DOOR, LH

main67872-WC003

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

68630DCHECK ASSY, REAR DOOR, RH

68640ACHECK ASSY, REAR DOOR, LH

75923TAPE, BLACK OUT, NO.2 RH

main75927-WC009

75924TAPE, BLACK OUT, NO.2 LH

main75928-WC009

90118WC017

main90118-WC017

90118WC057

main90118-WC057

90118WC109

main90118-WC109

90118WC136

main90118-WC136

90118WC565

main90118-WC565

90118WC606

main90118-WC606

26 parts on this diagram · 2 diagrams in section
