SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61011BPANEL SUB-ASSY, SIDE, OUTER RH
61012BPANEL SUB-ASSY, SIDE, OUTER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
6104
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61109CREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61147DEXTENSION, FRONT BODY PILLAR, UPPER OUTER RH
61148AEXTENSION, FRONT BODY PILLAR, UPPER OUTER LH
61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH
61154BRETAINER, FRONT BODY PILLAR LOWER HINGE, LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
main61203-WC003
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
main61204-WC003
61212RAIL, ROOF SIDE, OUTER LH
main61212-WC004
61301PILLAR SUB-ASSY, CENTER BODY, RH
main61301-WC005
61302PILLAR SUB-ASSY, CENTER BODY, LH
main61302-WC005
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61397BRETAINER, CENTER BODY PILLAR
61397CRETAINER, CENTER BODY PILLAR
61411PANEL, ROCKER, OUTER RH
main61111-WC049
61412PANEL, ROCKER, OUTER LH
main61112-WC019
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61608HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61611PANEL, QUARTER, RH
main61111-WC048
61612PANEL, QUARTER, LH
main61112-WC018
61625FEXTENSION, QUARTER PANEL, UPPER RH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61671GSUPPORT, REAR SUSPENSION SPRING, RH
61672ASUPPORT, REAR SUSPENSION SPRING, LH
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61702BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61704JREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH
61731PANEL, ROOF SIDE, INNER UPPER RH
main61731-WC003
61732PANEL, ROOF SIDE, INNER UPPER LH
main61732-WC003
7701

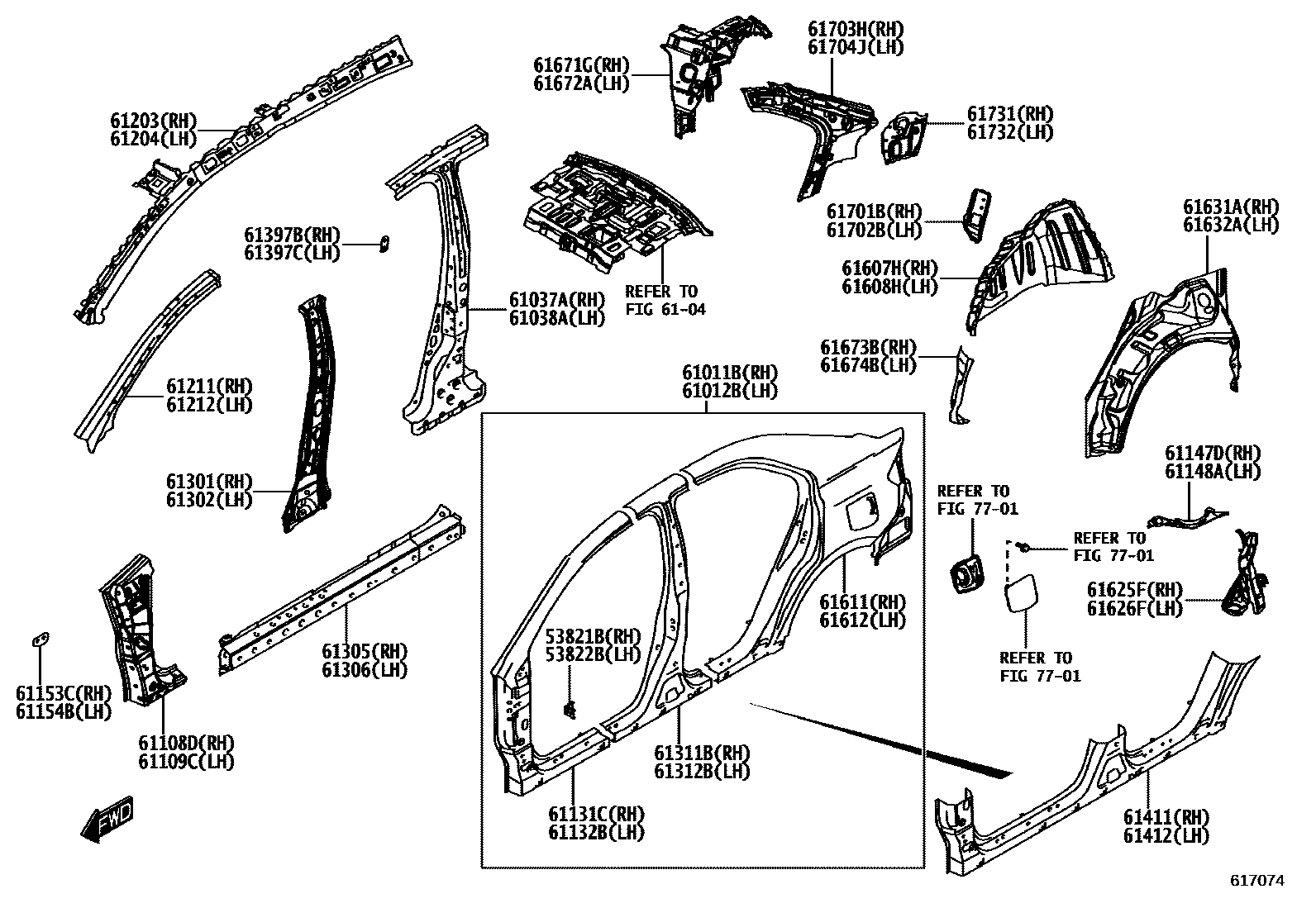

48 parts on this diagram · 2 diagrams in section
