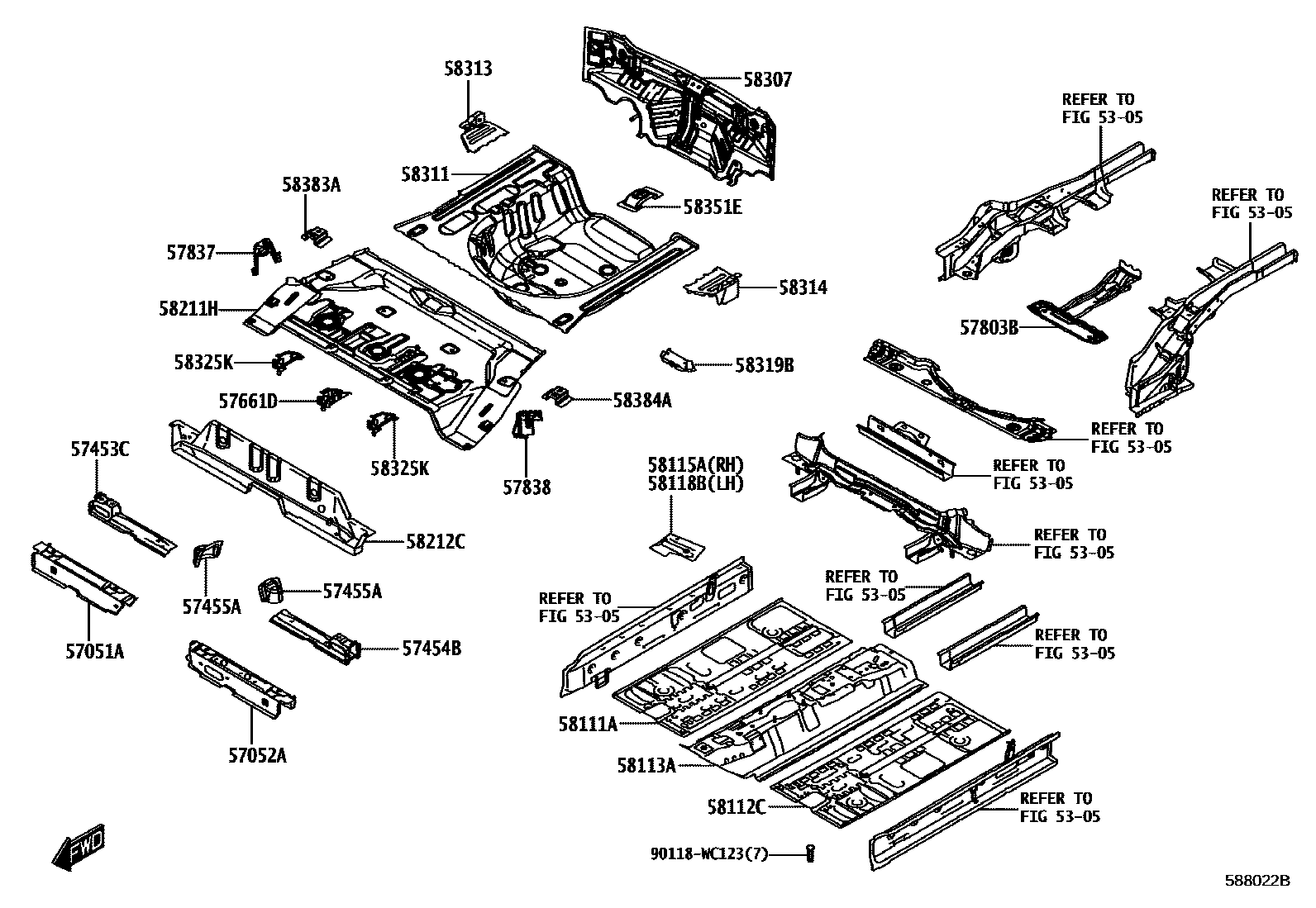

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1RHD 0003 1LHD

5305

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

57455ABRACKET, FRONT FLOOR CROSSMEMBER

57661DMEMBER, REAR FLOOR CROSS, FRONT

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main58313-WC002

57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main58314-WC002

58111APAN, FRONT FLOOR, RH

58112CPAN, FRONT FLOOR, LH

58113APANEL, FRONT FLOOR, CENTER

58115AREINFORCEMENT, FRONT FLOOR PANEL

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

58211HPAN, CENTER FLOOR

58212CPAN, CENTER FLOOR, FRONT

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-WC005

58311PAN, REAR FLOOR

main58311-WC004

58313PANEL, REAR FLOOR SIDE, RH

main52175-WC002

58314PANEL, REAR FLOOR SIDE, LH

main73705-WC002

58319BBRACKET, REAR FLOOR SIDE PANEL

58325KBRACE, REAR FLOOR PANEL

58351EBRACKET, SPARE WHEEL CLAMP

58383ABRACKET, REAR SEAT SUPPORT, RH

58384ABRACKET, REAR SEAT SUPPORT, LH

90118WC123

main90118-WC123

27 parts on this diagram · 3 diagrams in section
