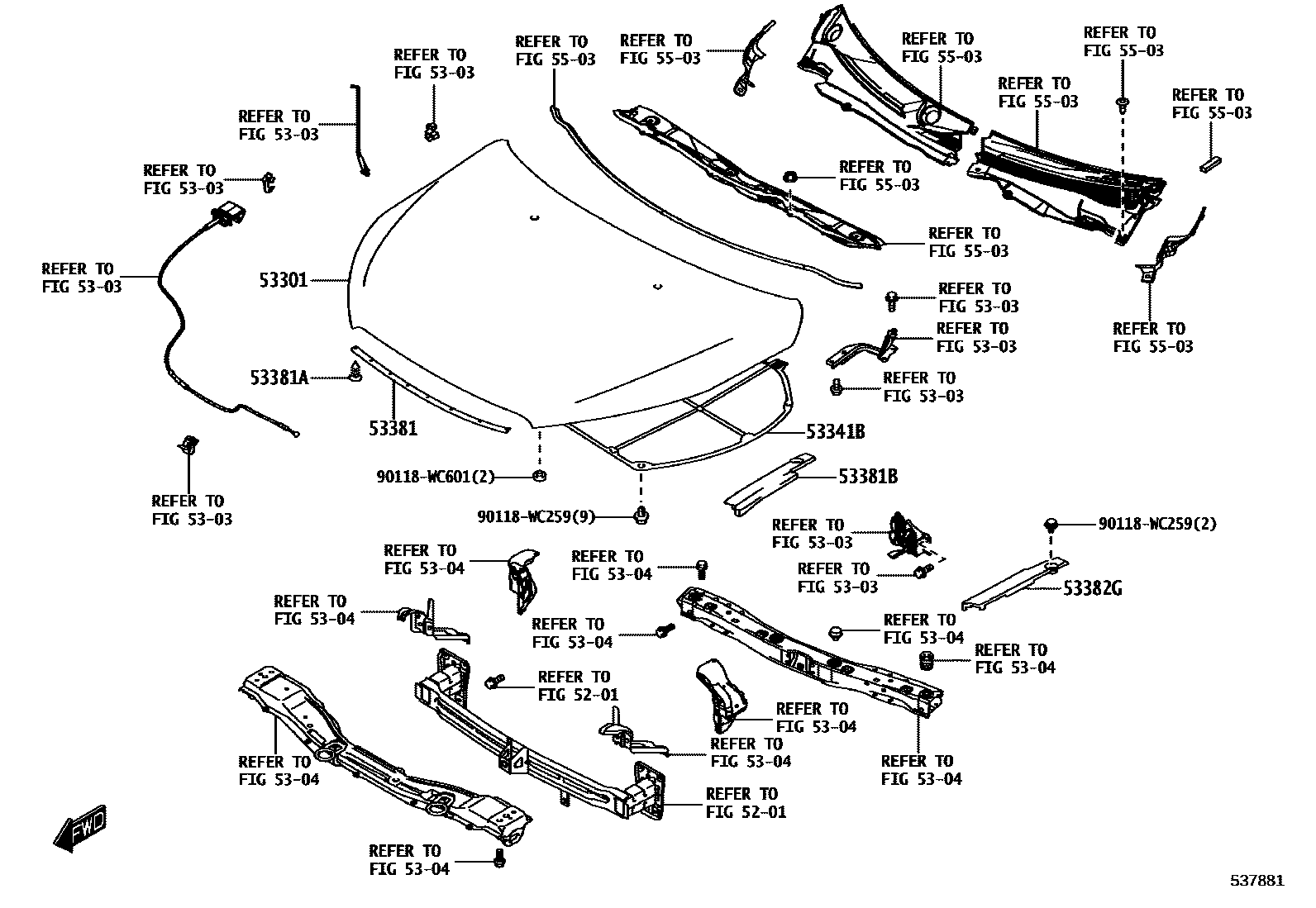

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5201

5303

5304

53301HOOD SUB-ASSY

main53301-WC004

53341BINSULATOR, HOOD

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-WC003

main53381-WC004

main90118-WCA23

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

5503

90118WC259

main90118-WC259

90118WC601

main90118-WC601

12 parts on this diagram · 3 diagrams in section
