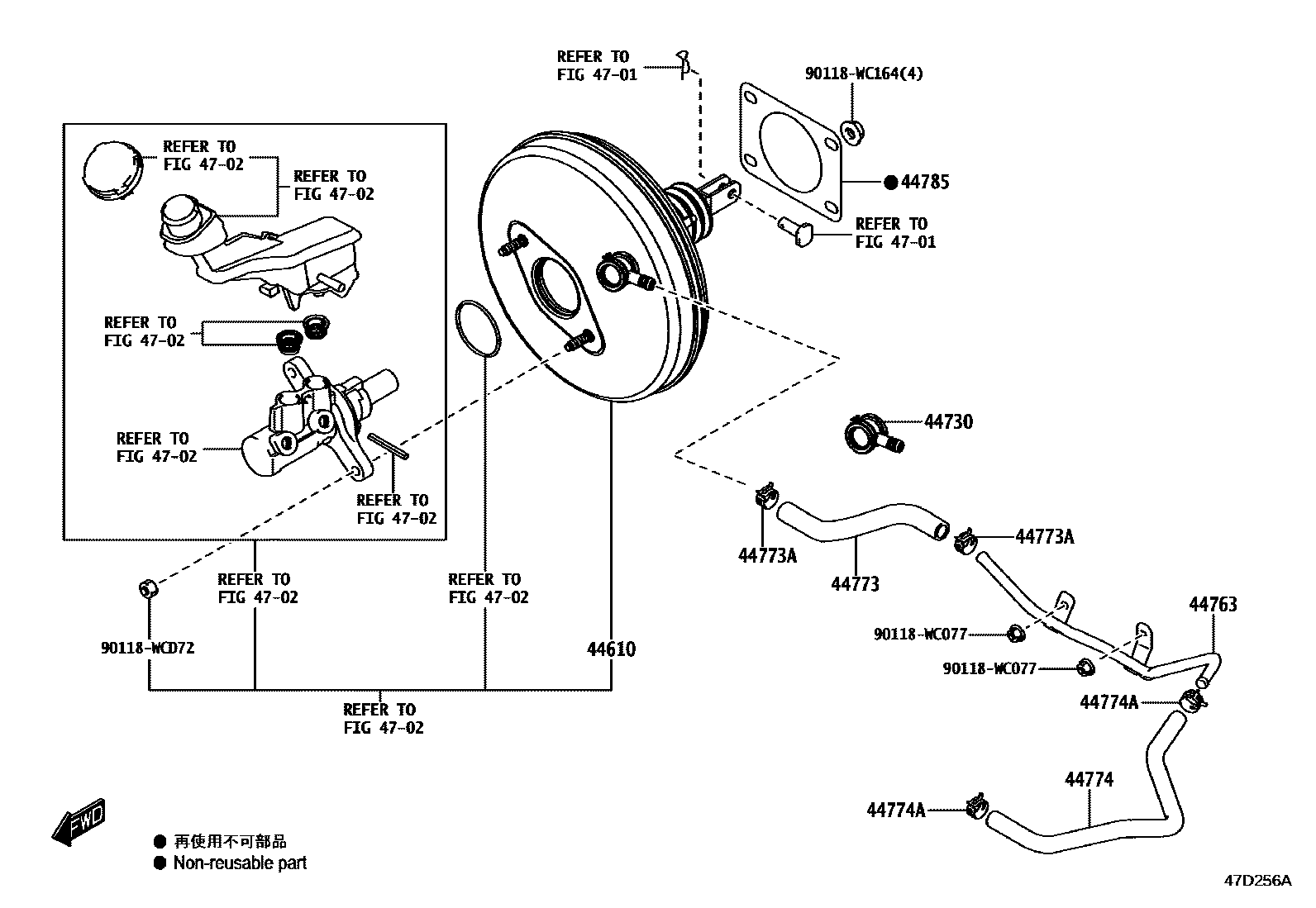

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-WC010

main44610-WC011

main44610-WC012

main44610-WC013

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-WC002

44763TUBE, BOOSTER VACUUM

main44763-WC003

44773HOSE, VACUUM, NO.2

main44773-WC004

main90118-WC237

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

44774HOSE, UNION TO CONNECTOR TUBE

main44774-WC001

main90118-WC237

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

44785GASKET, BRAKE BOOSTER

main44785-WC002

4701

4702

90118WC077

main90118-WC077

90118WC164

main90118-WC164

90118WCD72

main90118-WCD72

13 parts on this diagram · 4 diagrams in section
